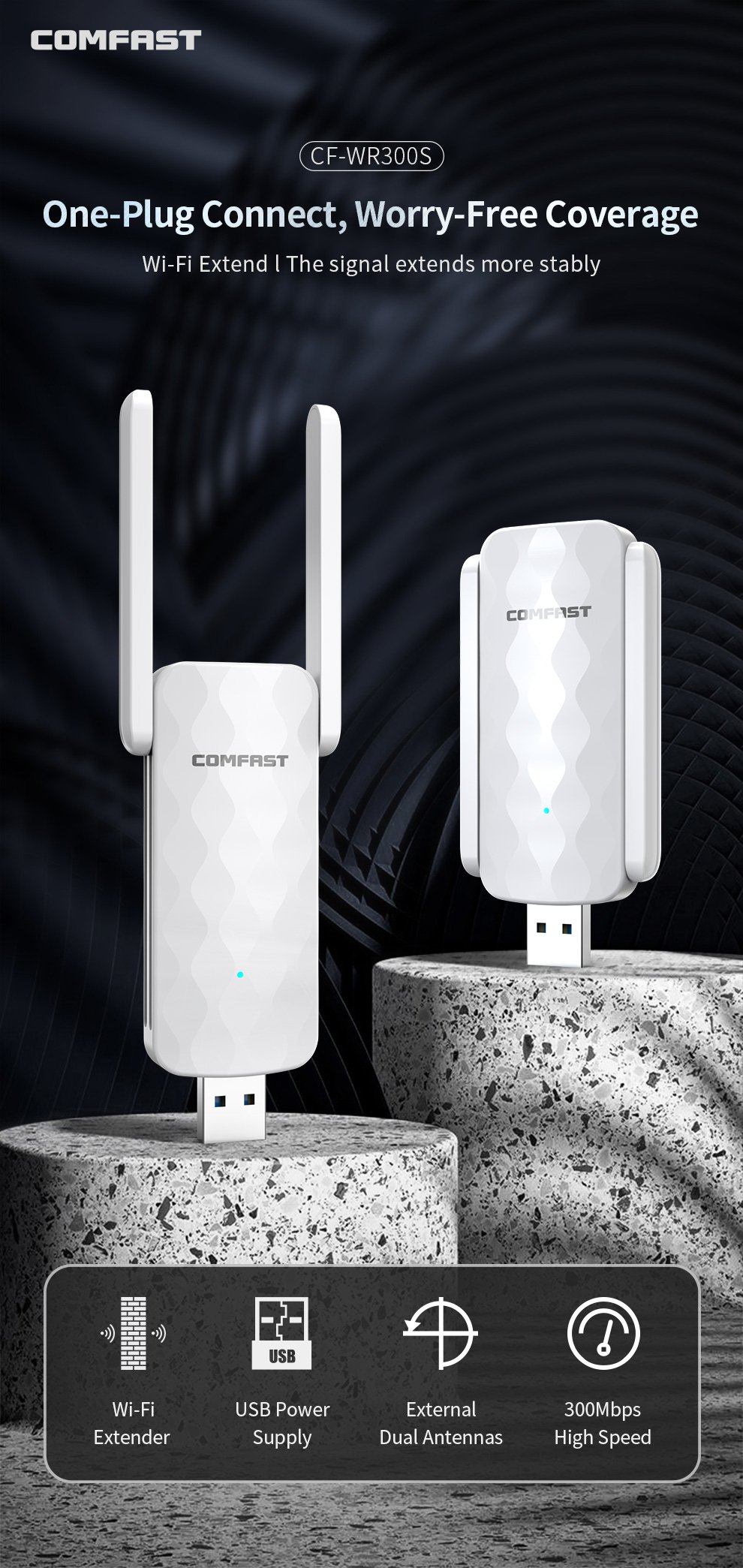

One-Plug Connect, Worry-Free Coverage

The CF-WR300S is a USB-powered signal extender with dual antennas, enhancing Wi-Fi coverage and supporting memory transfer for easy extension to any location.

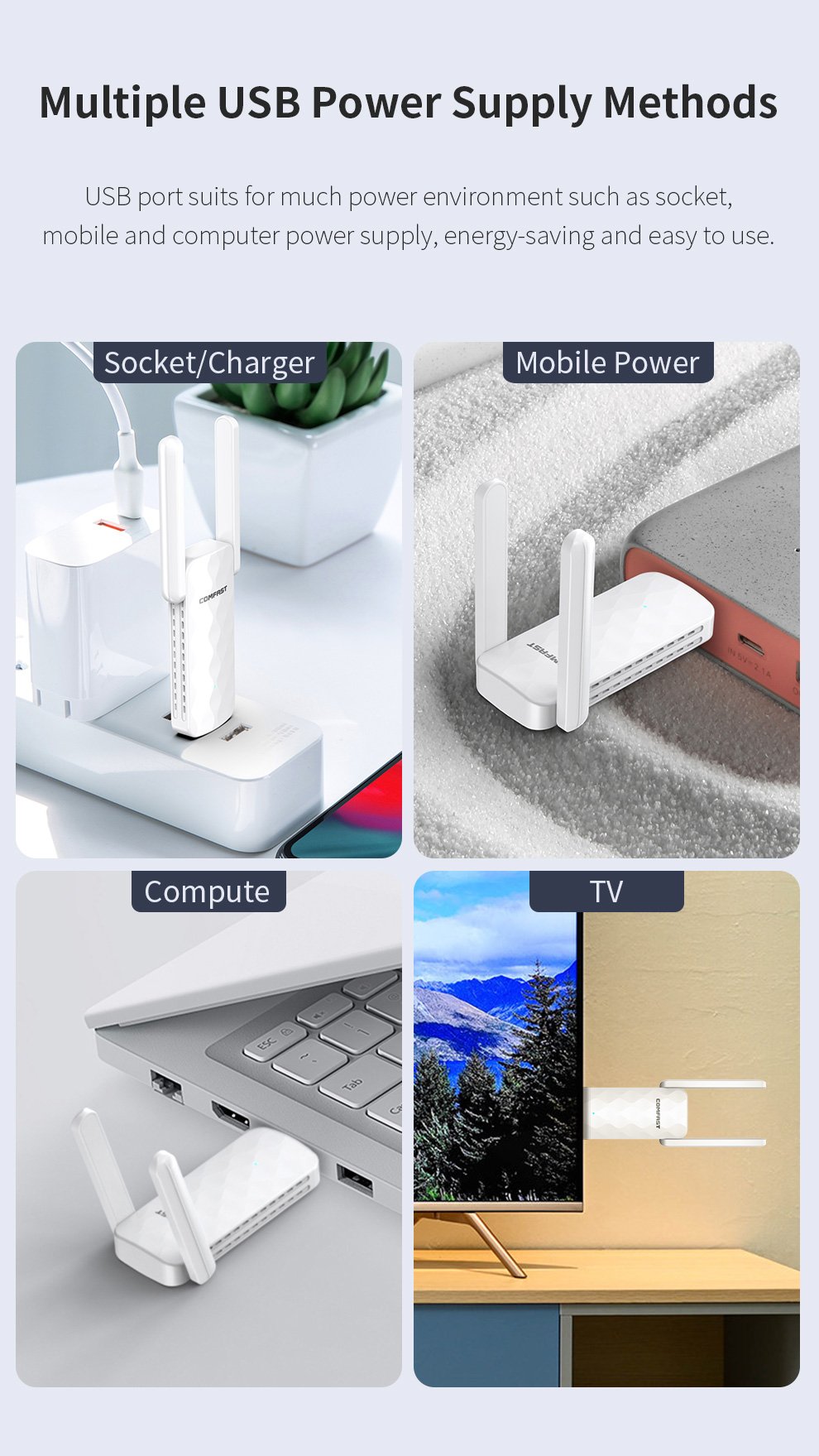

Portable USB Power: Convenient placement anywhere.
IEEE 802.11b/g/n Support: Broad compatibility with wireless standards.

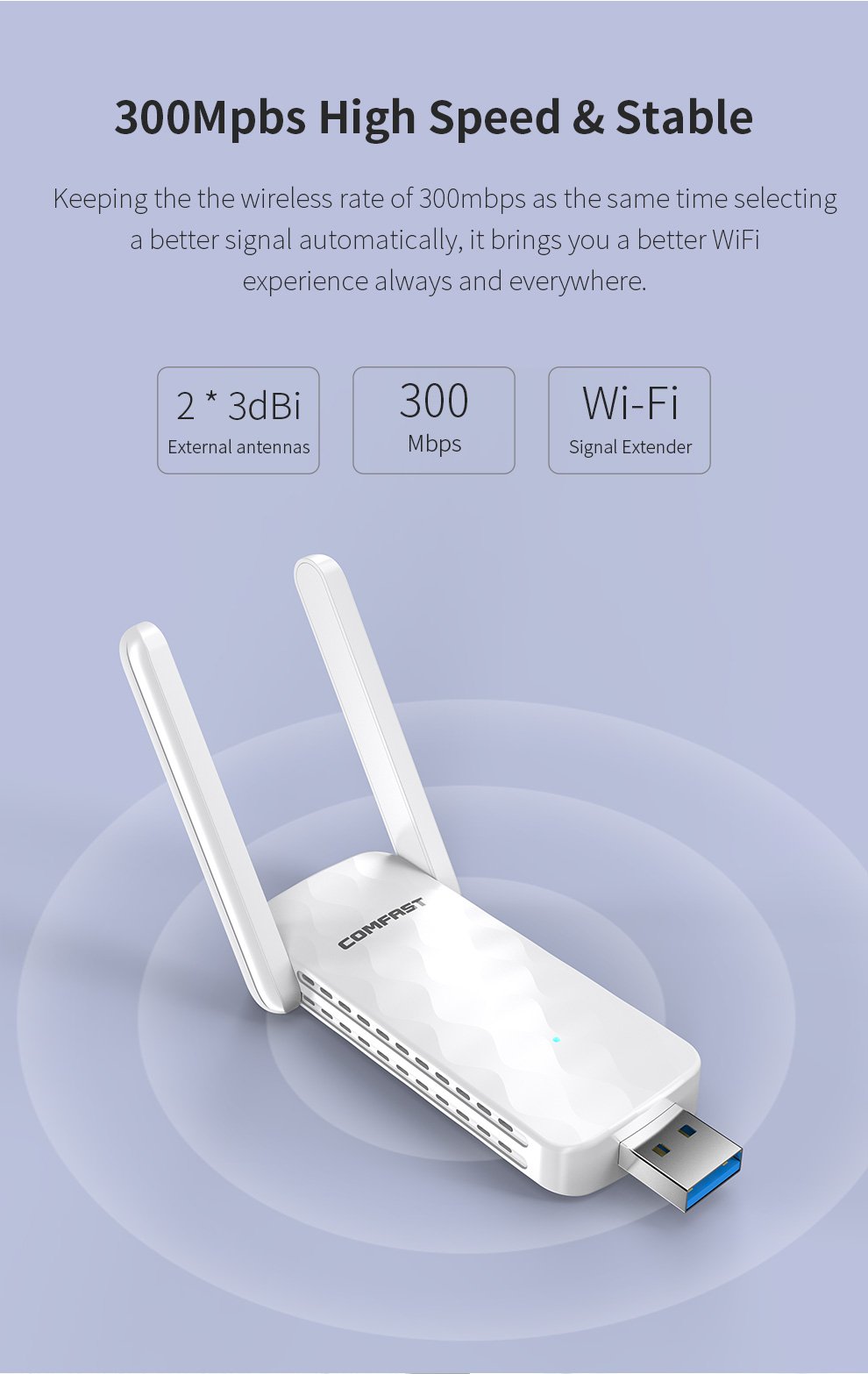

300Mbps Speed: Fast and stable wireless performance.
High-Quality Chipset: Reliable, stable performance.

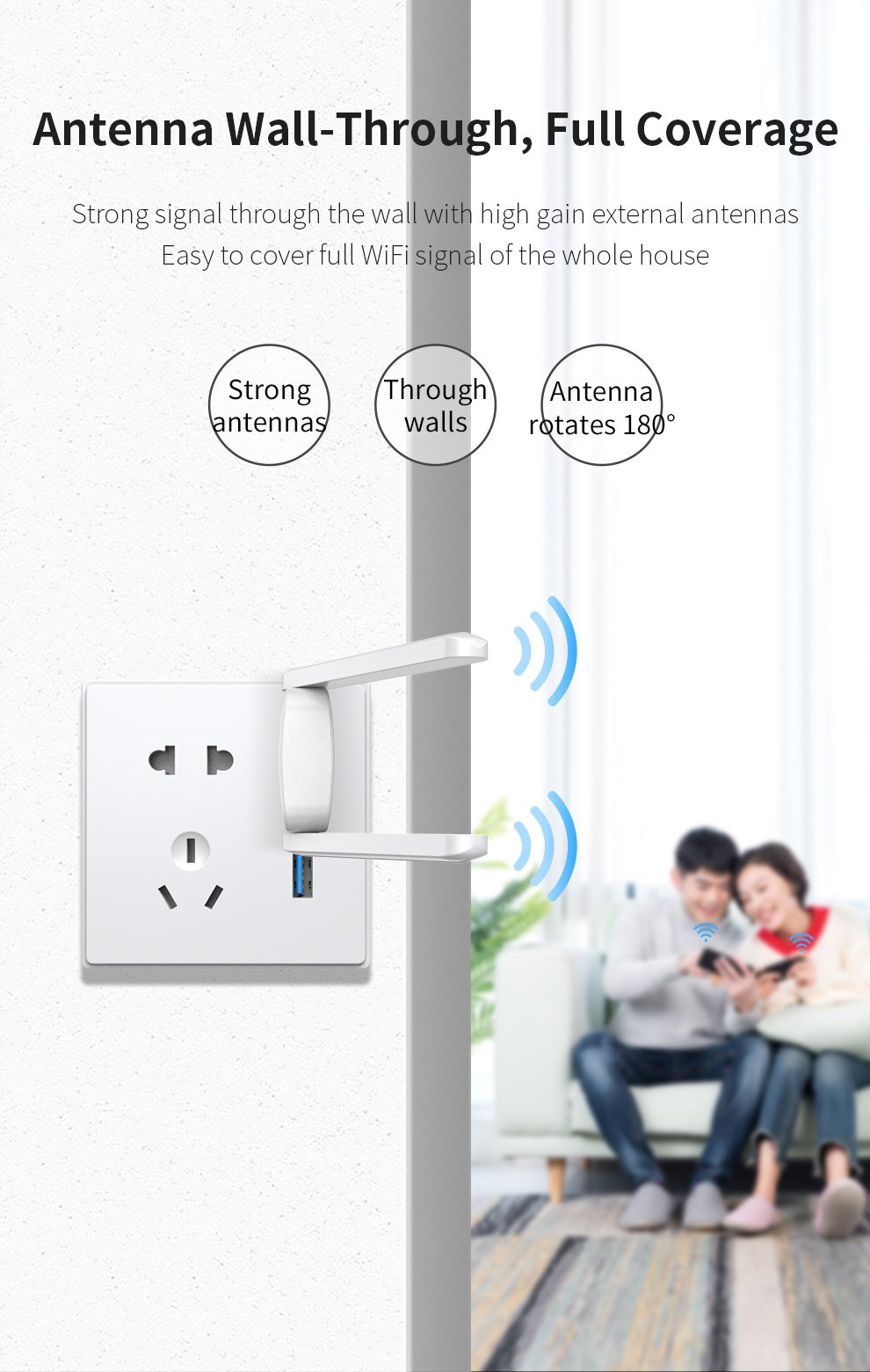

High-Gain Antennas: Enhanced signal strength and coverage.
Wide Compatibility: Works with most routers and adapters.
Energy-Efficient: Low power, eco-friendly.

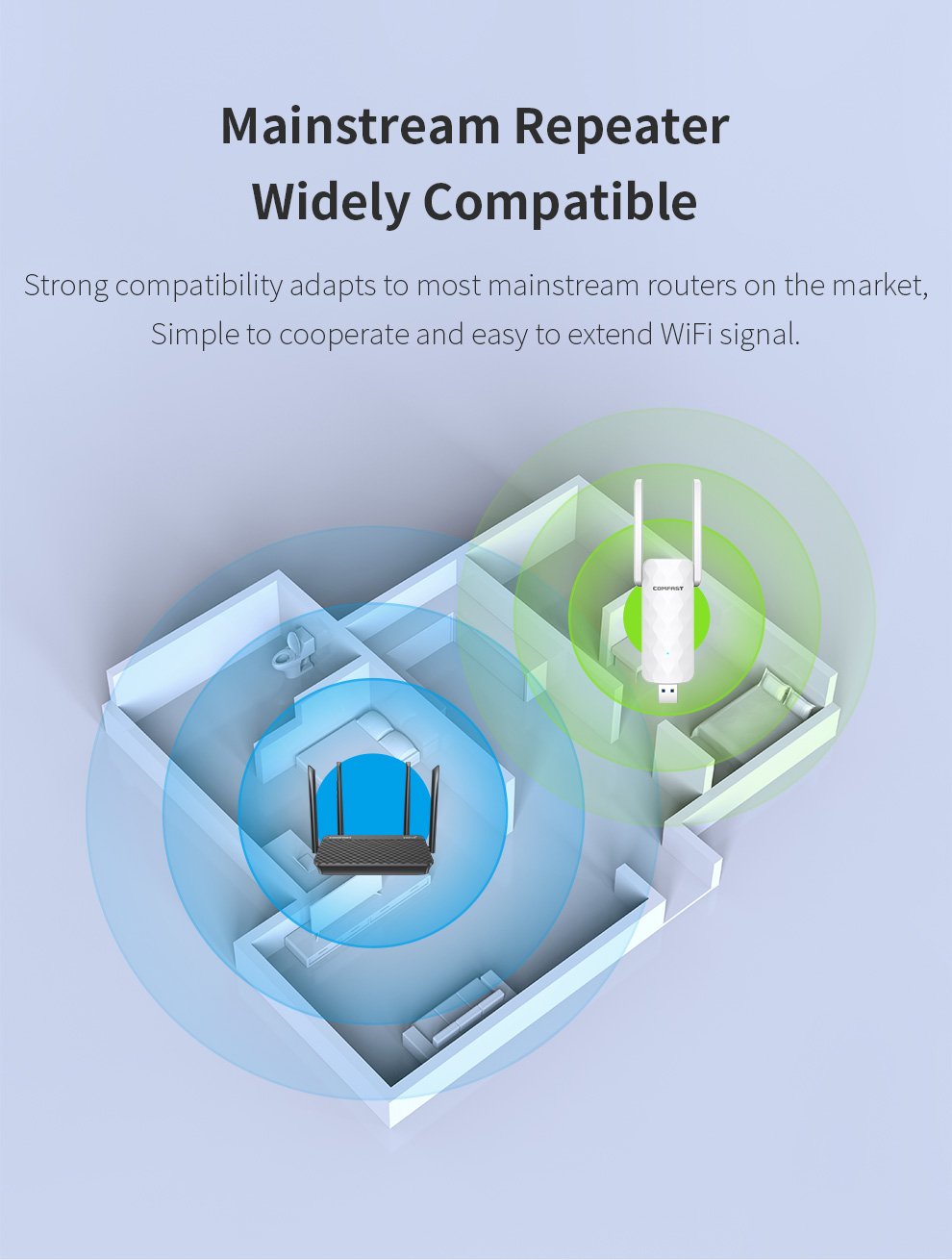

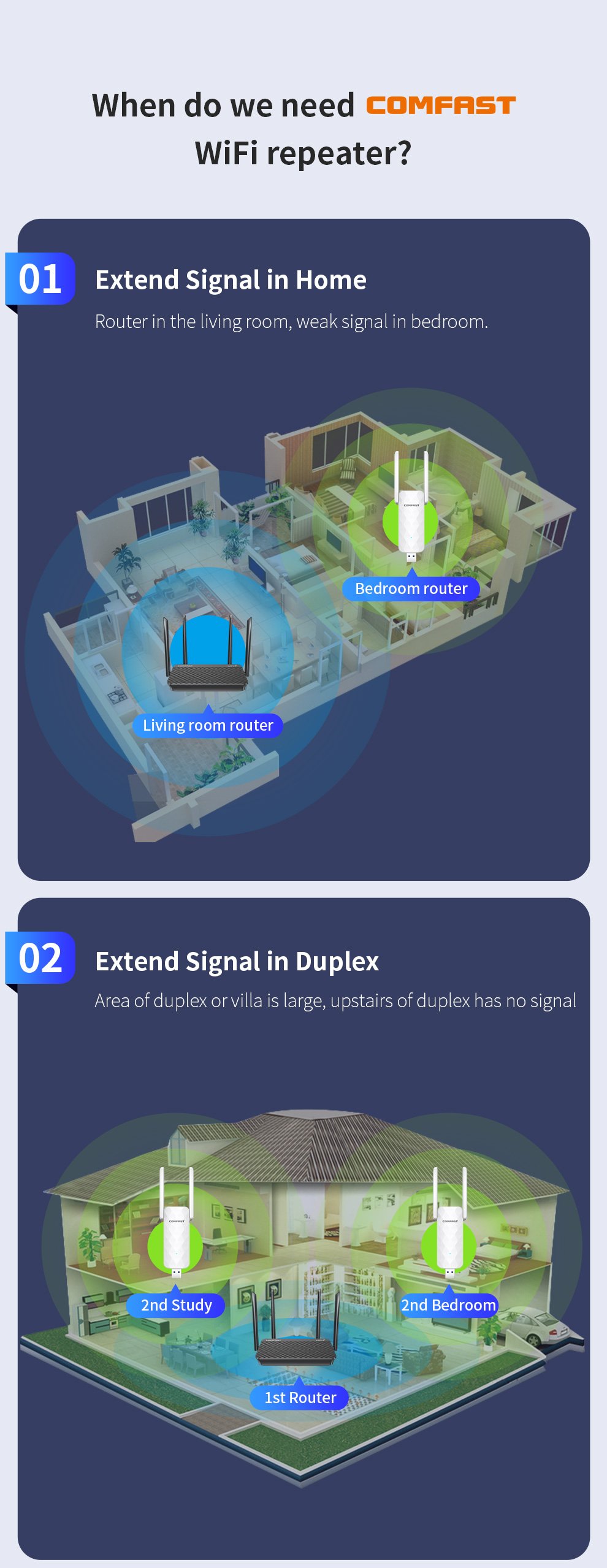

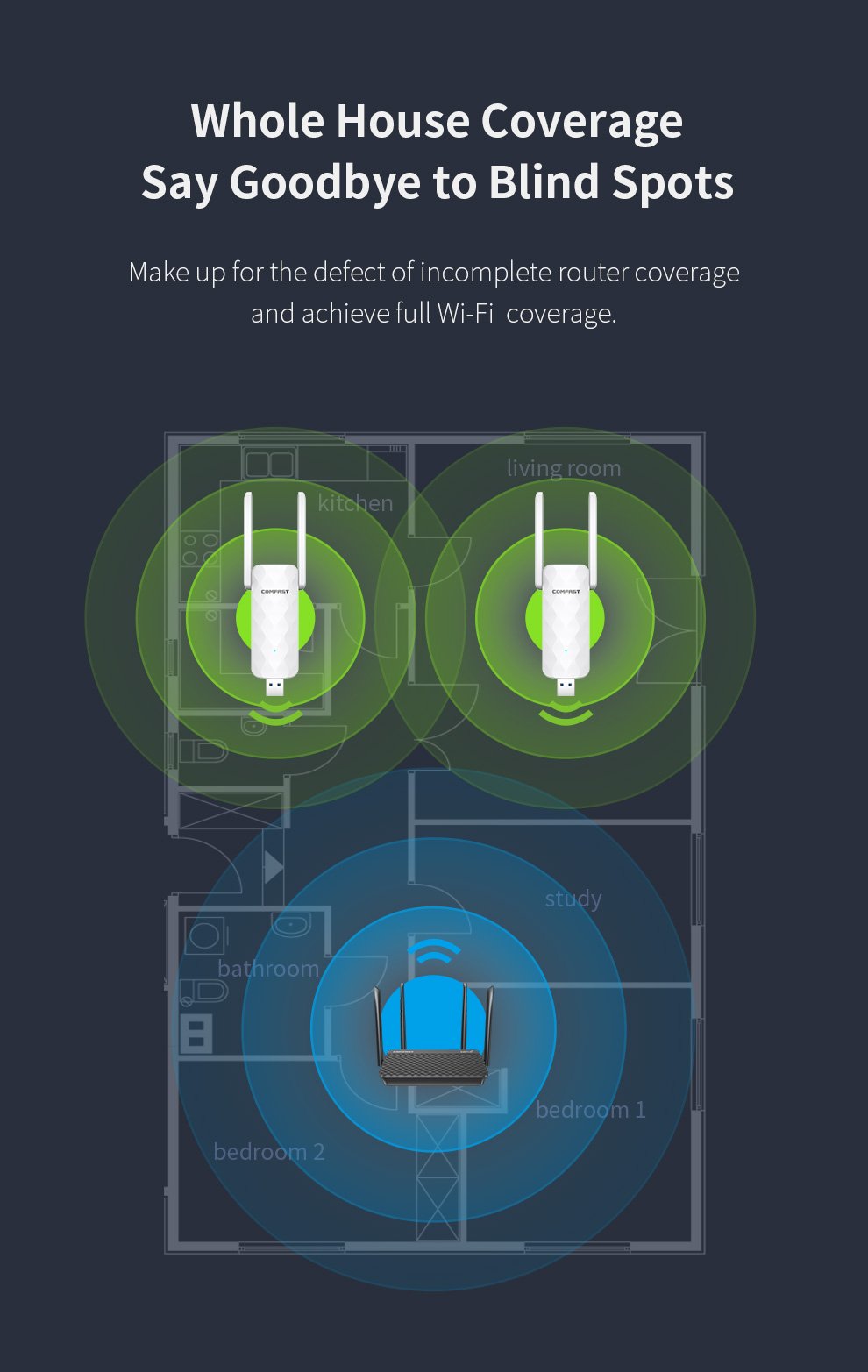

Eliminate Dead Zones: Extends Wi-Fi coverage to every corner.

Categories: 4G/5G CPE, 4G/5G MIFI, 4G/5G UFI, Mobile Network, USB Repeater, Wall-Crossing, Wireless Adapter, Wireless Repeater Tag: CF-WR300S

Contact Us

Online Service

Service hours: Mon-Fri 9:00-12:00, 13:30-18:30 (excluding holidays)

Product Repair

Repair Address

3rd Floor, Building 2, Hongxin Industrial Park, No. 1303,
Guanguang Road, Xinlan Community, Guanlan Street,
Longhua District, Shenzhen, Guangdong

Telephone

0755 83790059

Service Time

Monday to Saturday
8:00-12:00, 13:30-17:00
18:00-20:30(weekdays only)

Description
Attachment

Description

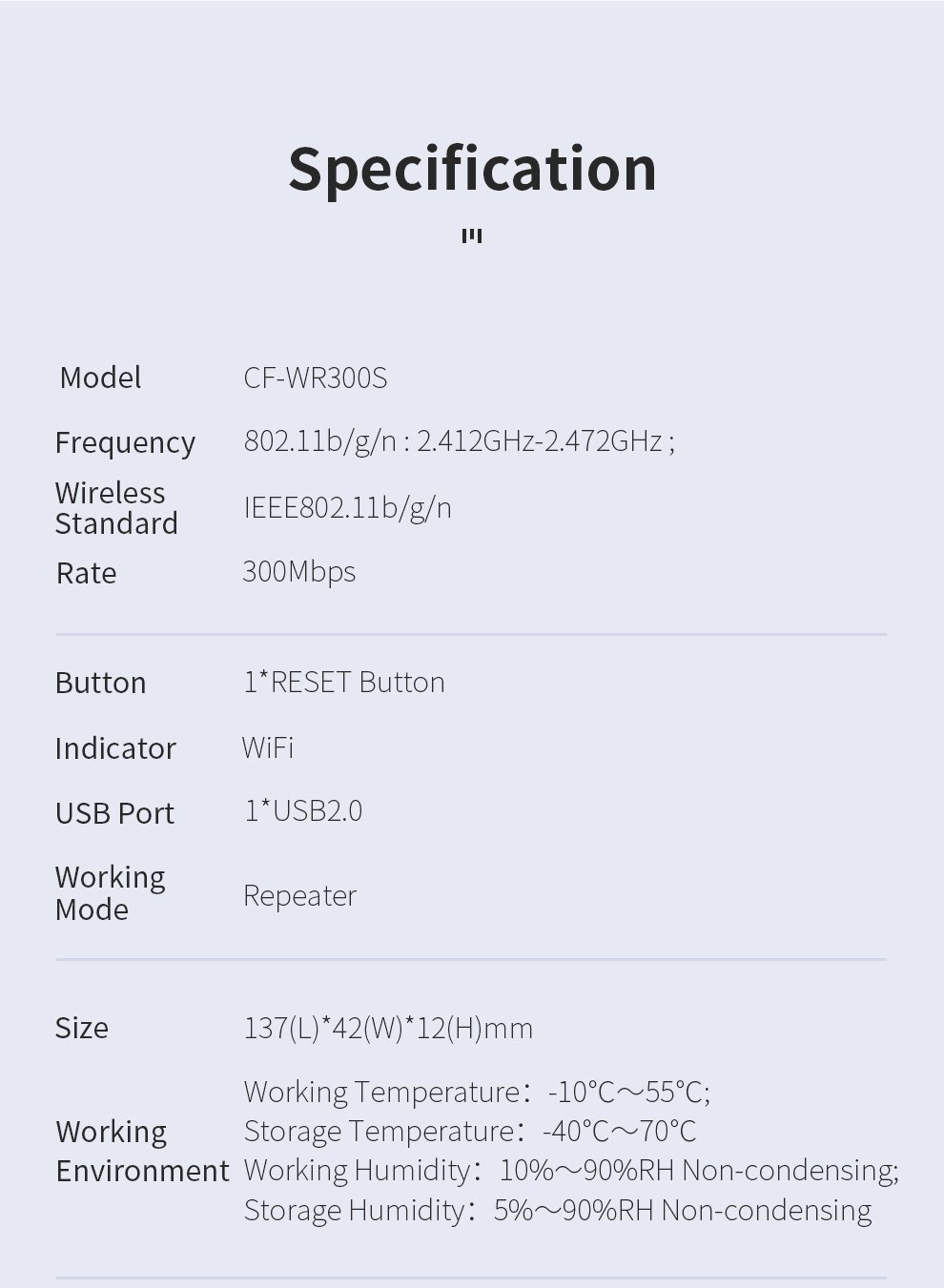

Hardware Specification	Details
Chipset	MT7628KN
Flash/Memory	2MB/8MB
Antenna	Dual 2*3dBi Omni-directional Antennas
Wireless Standard	IEEE 802.11b/g/n
Wireless Transmission Speed	11b: 1/2/5.5/11Mbps 11g: 6/9/12/18/24/36/48/54Mbps 11n: 300Mbps
RF Parameters	Max TX Power: 80mW (19dBm) Max RX Sensitivity: -96dBm Operating Frequency: 2.412~2.472GHz
Button	1 RESET hole
Physical Interface	None
USB	USB 2.0
Indicator Light	Wi-Fi
Power	–
Channel Bandwidth	20/40 MHz Auto
Security Features	WPA-PSK/WPA2-PSK WPA/WPA2
Operating Mode	Repeater Mode
Shell	Imported ABS Material, Plastic Shell
Physical Dimensions	137mm (L) x 42mm (W) x 12mm (H)
Operating Environment	Operating Temperature: -10°C ~ 55°C Storage Temperature: -40°C ~ 70°C Operating Humidity: 10% ~ 90% RH (Non-condensing) Storage Humidity: 5% ~ 90% RH (Non-condensing)
