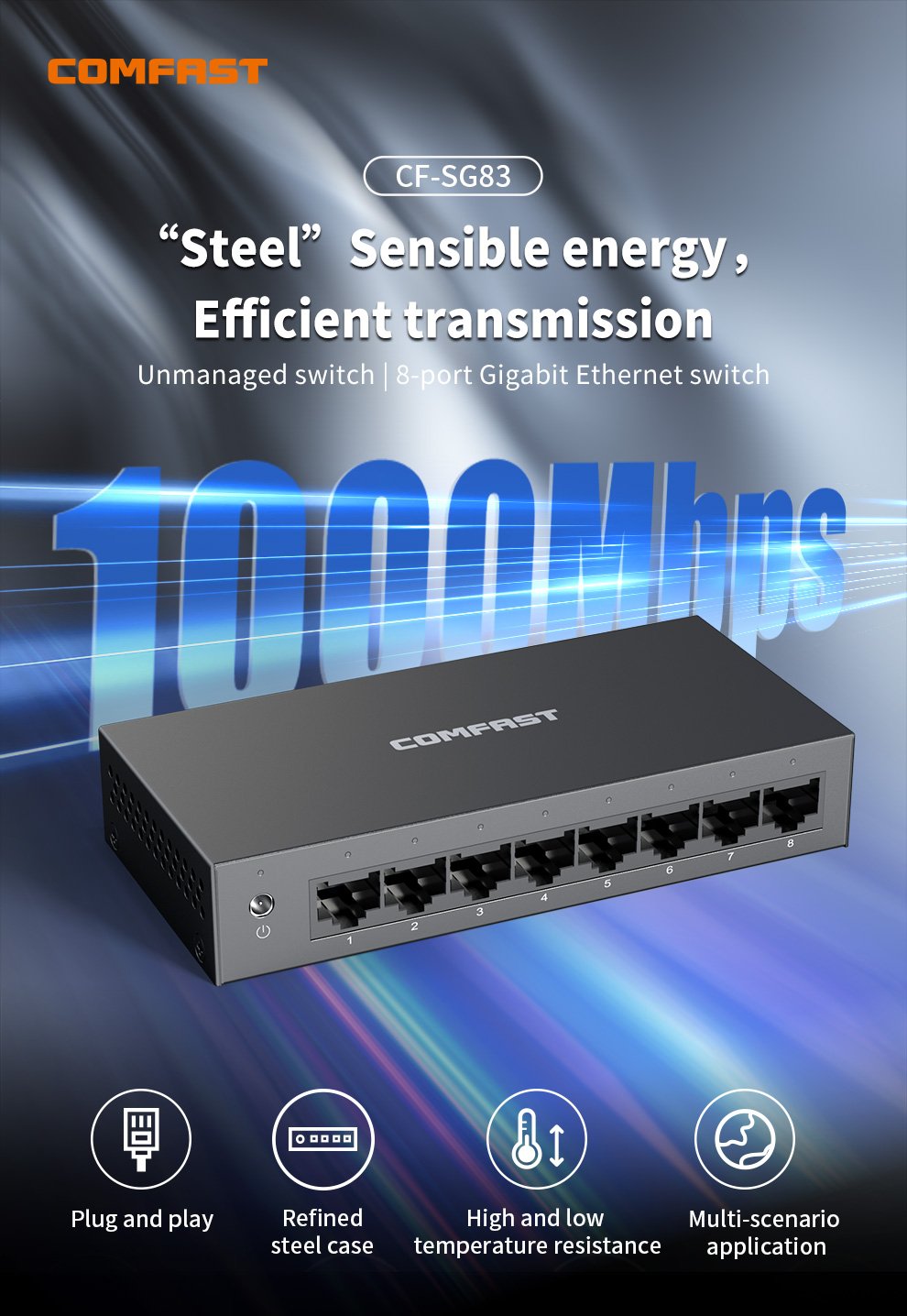

“Steel” Sensible energy,Efficient transmission

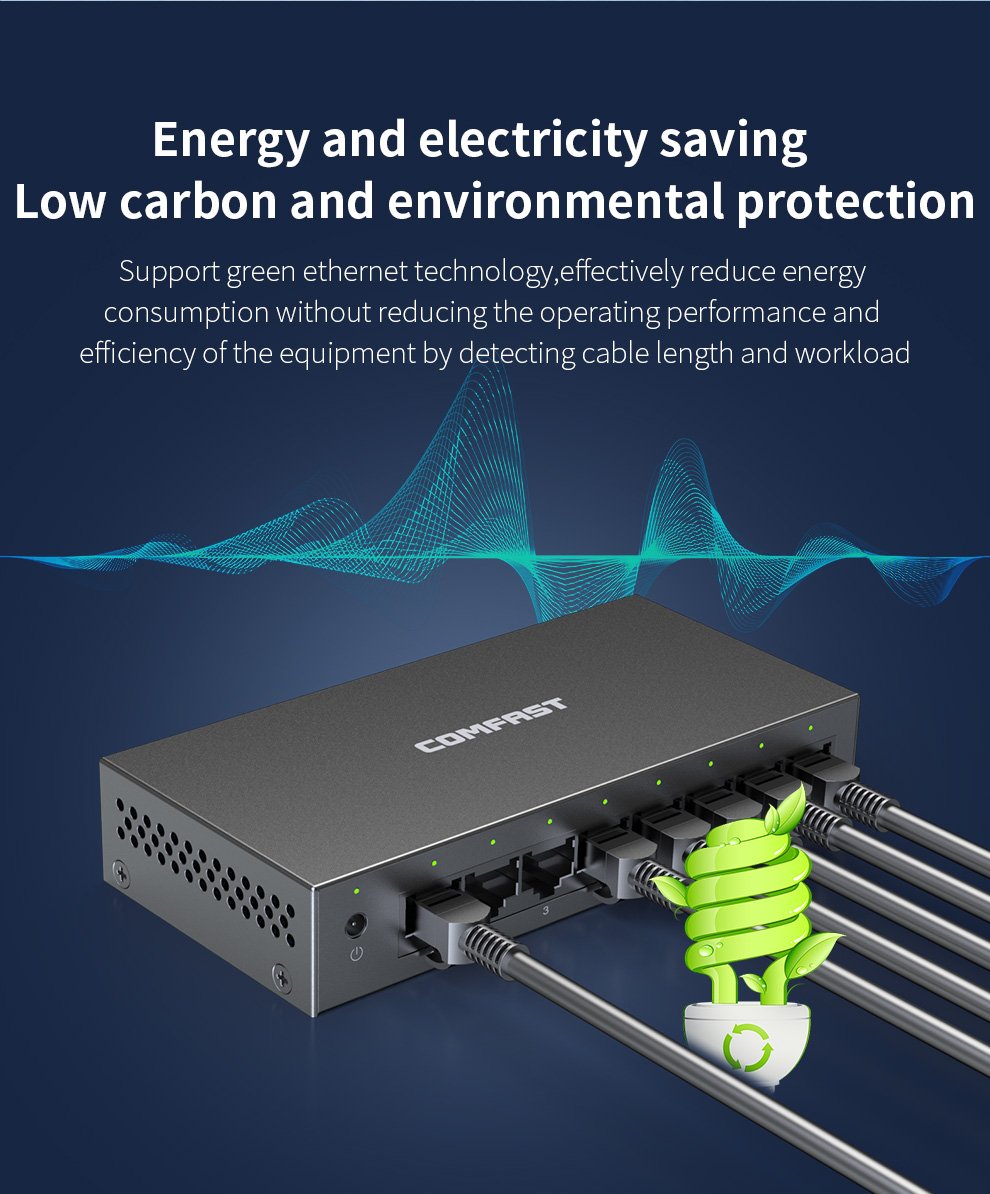

The CF-SG83 is a Gigabit Ethernet switch that eliminates network bottlenecks and offers excellent adaptability. It uses Green Ethernet technology to reduce energy consumption and is designed for easy use in home and small office environments.
- Complies with IEEE 802.3i/u/ab/x/az standards.
-
Full-duplex IEEE 802.3x, half-duplex with Backpressure.
-
Supports MAC address learning.
-

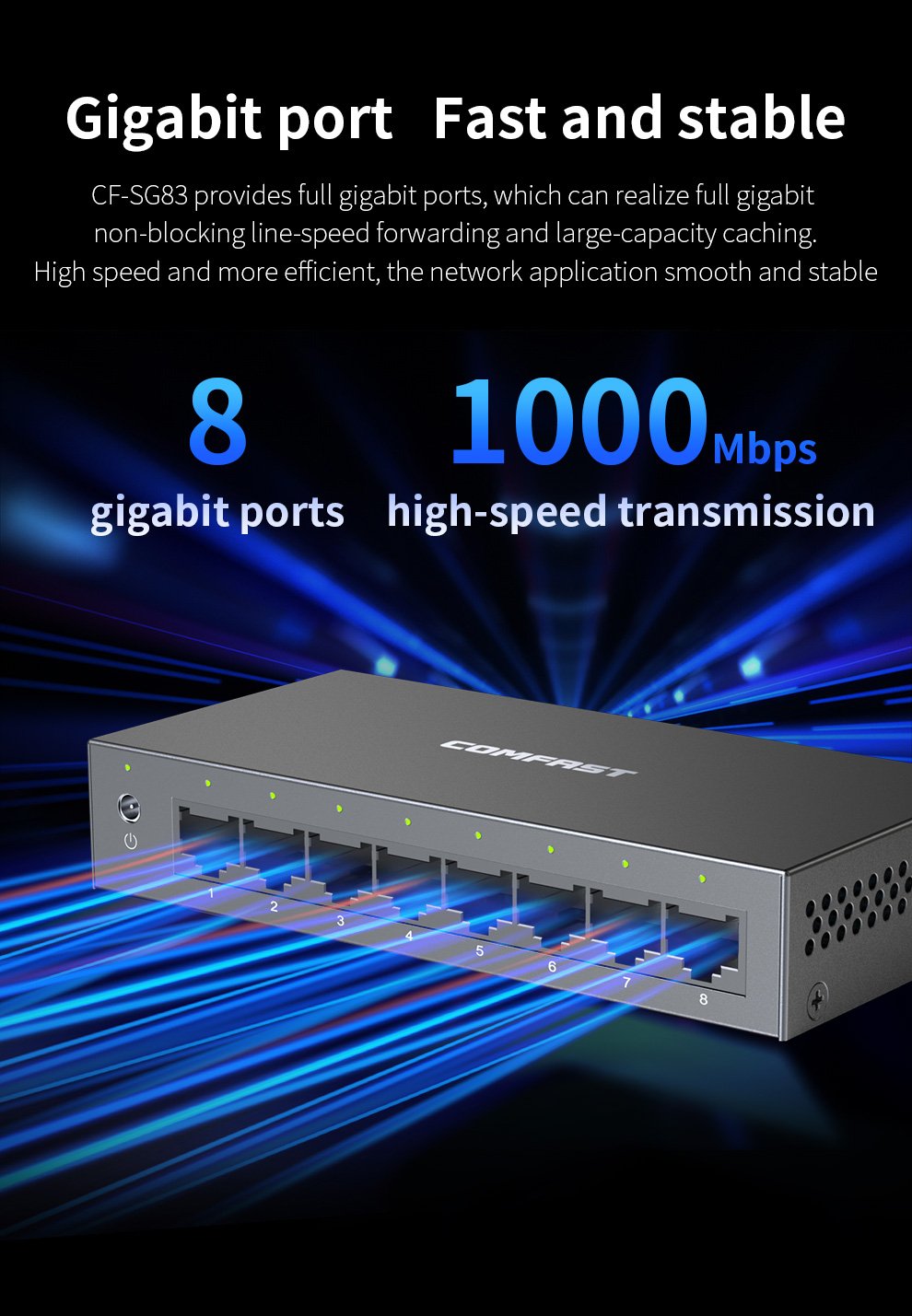

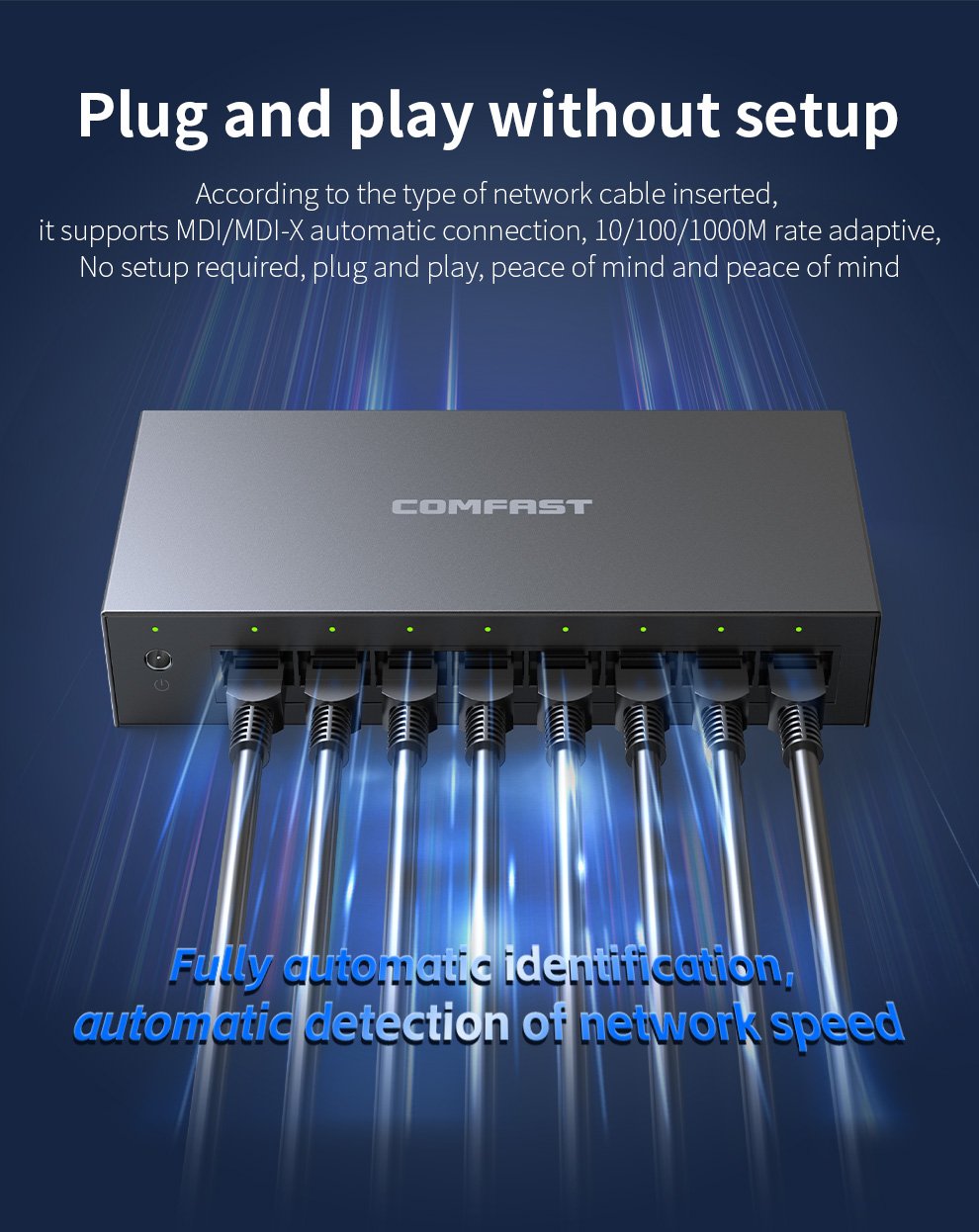

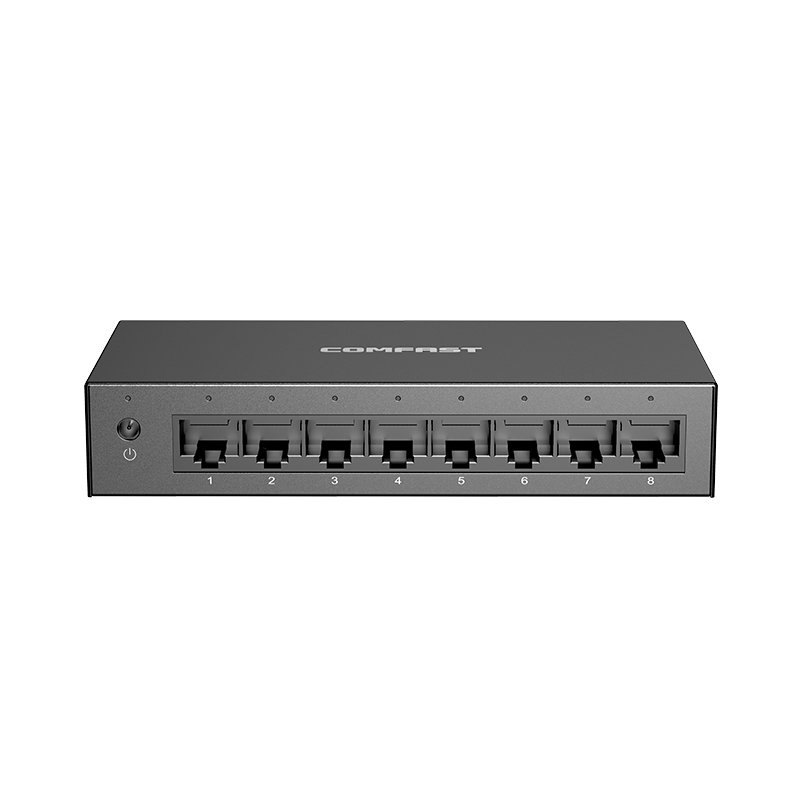

8 auto-negotiating 10/100/1000M RJ45 ports with Auto MDI/MDIX.
-

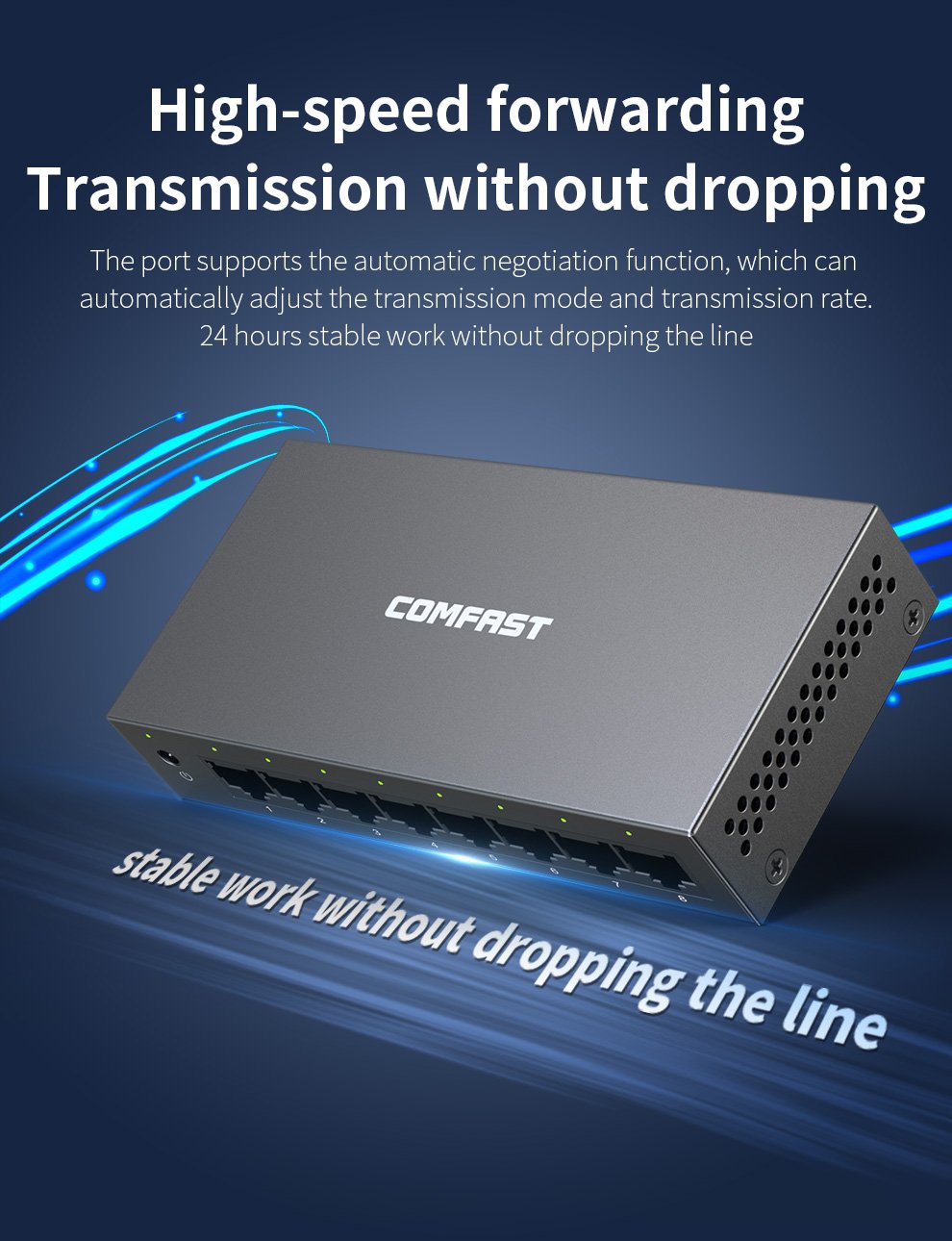

UTP ports auto-adjust transmission mode and speed.
-
Store-and-forward architecture.
-
Dynamic LEDs for status and troubleshooting.
- Categories: POE Switch, Enterprise
- Model: CF-SG83
Contact Us
Product Repair
Repair Address
3rd Floor, Building 2, Hongxin Industrial Park, No. 1303,
Guanguang Road, Xinlan Community, Guanlan Street,
Longhua District, Shenzhen, Guangdong
Telephone
0755 83790059
Service Time
Monday to Saturday
8:00-12:00, 13:30-17:00
18:00-20:30(weekdays only)
*The product images and demonstration scenarios on this page are for illustrative purposes only and may have slight differences from the actual product. Please refer to the physical product for accuracy.
*The data on this page are theoretical values obtained from COMFAST’s internal laboratory under specific testing conditions. Actual usage may vary due to individual product differences, software versions, usage conditions, and environmental factors. Please refer to real-world usage for accurate representation.
*To provide as accurate product information, specifications, and features as possible, COMFAST may periodically adjust and revise the text descriptions, image effects, and other content on this page to ensure alignment with actual product performance, specifications, packaging, and accessories. Should such adjustments or revisions become necessary, no prior notice will be provided.

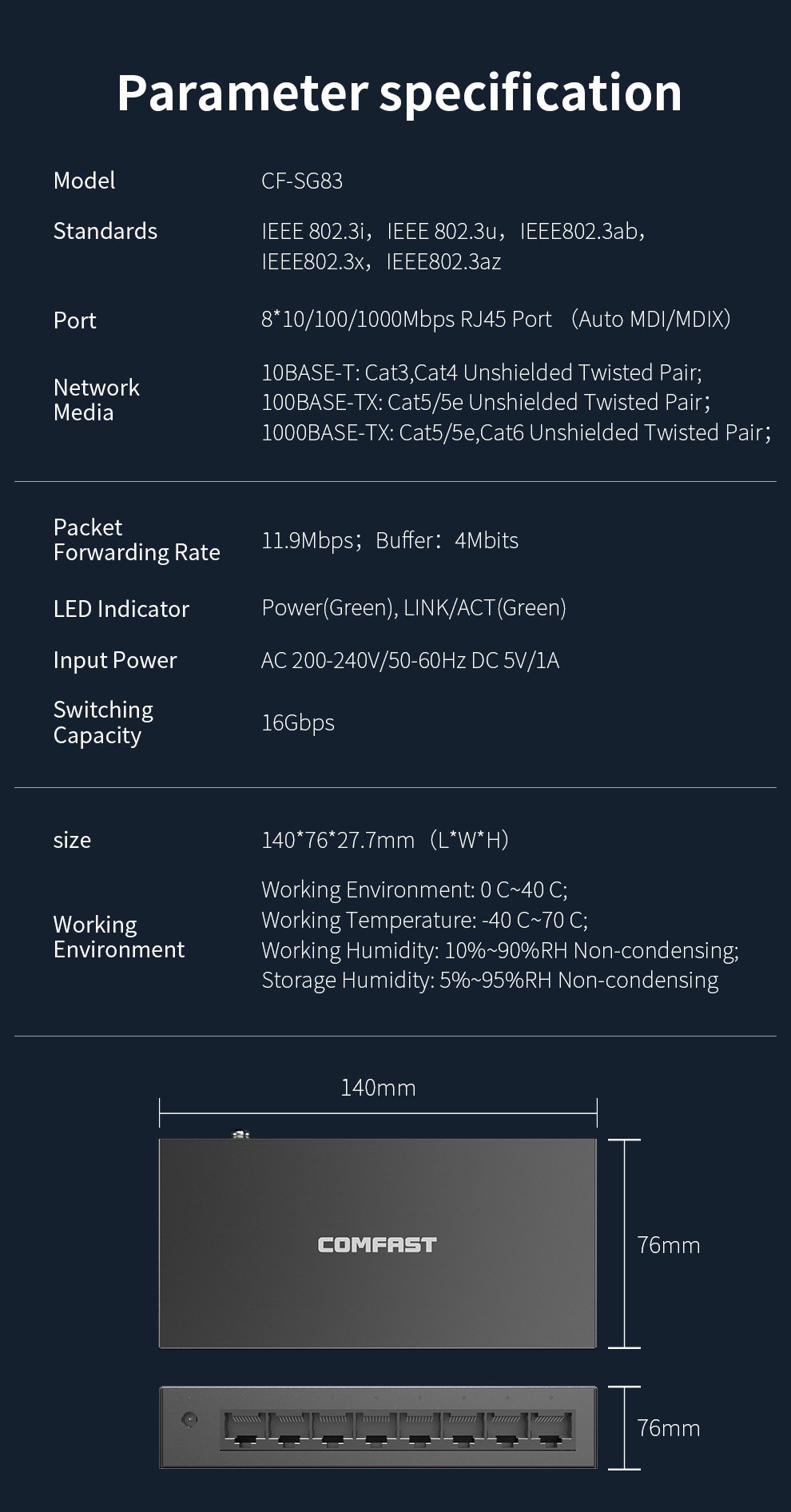

| Item | Specification |
|---|---|
| Model | CF-SG83 |
| Chipset | EN8851F |
| Standards & Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az |
| Ports | 8 x 10/100/1000Mbps auto-negotiating RJ45 ports (Auto MDI/MDIX) |
| Network Media | 10BASE-T: Cat 3, 4 unshielded twisted pair (≤100m) 100BASE-TX: Cat 5, 5e unshielded twisted pair (≤100m) 1000BASE-T: Cat 5, 5e, 6 unshielded twisted pair (≤100m) |
| Transmission Mode | Store-and-forward |
| MAC Address Table | 8K |
| Switching Capacity | 16Gbps |
| Packet Forwarding Rate | 11.9Mbps |
| Packet Buffer | 4Mbits |
| LED Indicators | Link/Act (Connection/Working) indicator: Green Power: Green |
| Jumbo Frame | 15KBytes |
| Power Supply | 5V 1A Adapter |

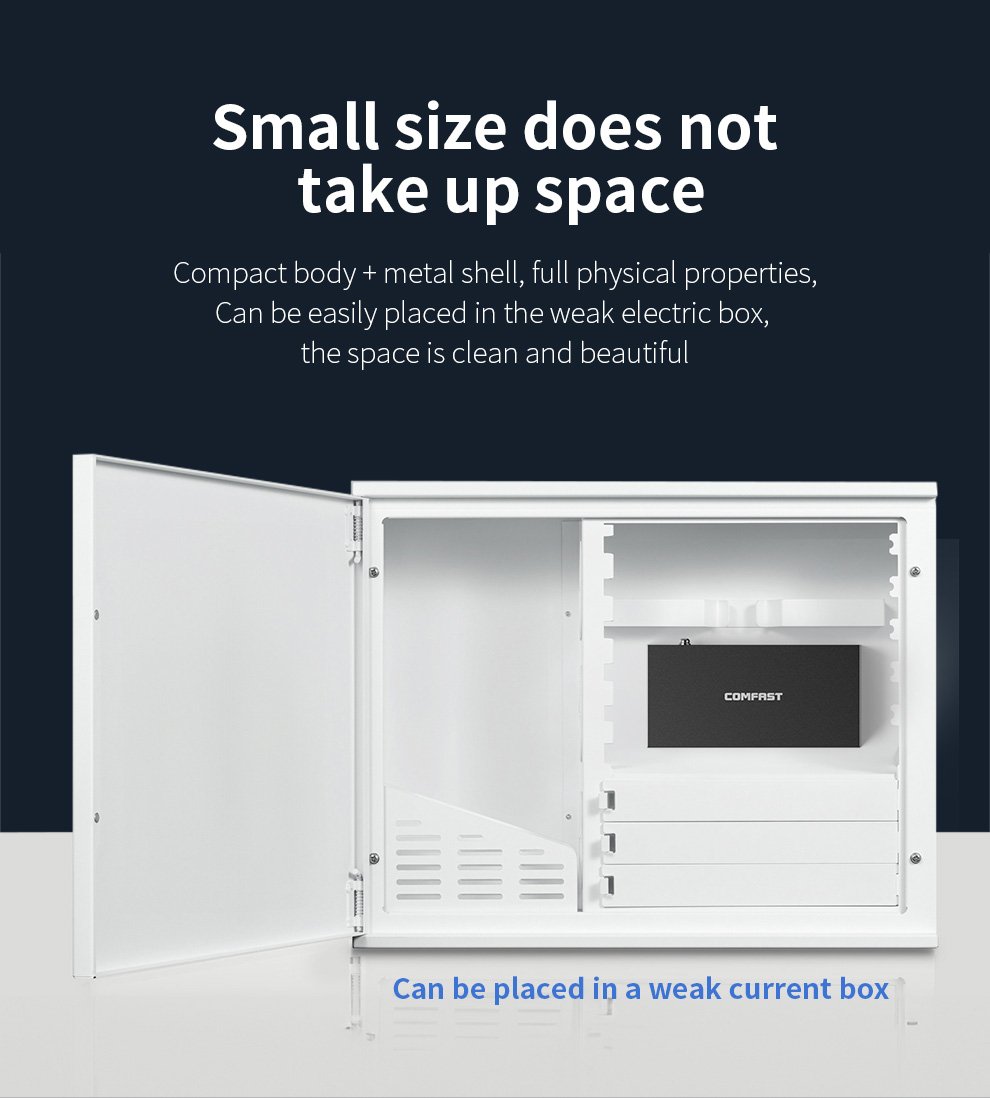

| Dimensions | 140 x 76 x 27.7mm (L x W x H) |
| Operating Environment | Operating Temp: 0℃ ~ 40℃ Storage Temp: -40℃ ~ 70℃ Operating Humidity: 10% ~ 90% RH non-condensing Storage Humidity: 5% ~ 90% RH non-condensing |
