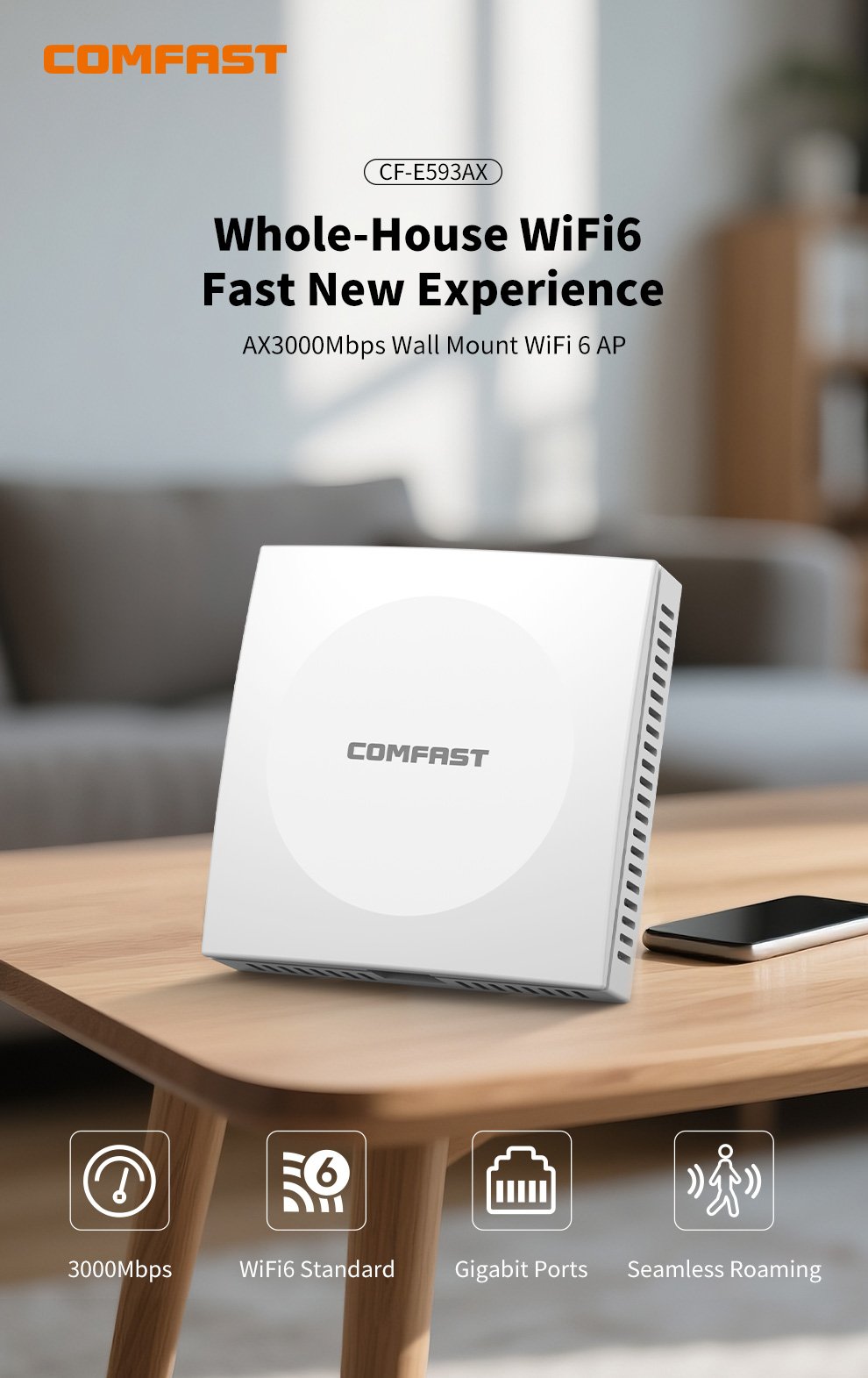

CF-E593AX Whole-House WiFi6Fast New Experience
CF-E593AX Whole-House WiFi6Fast New Experience

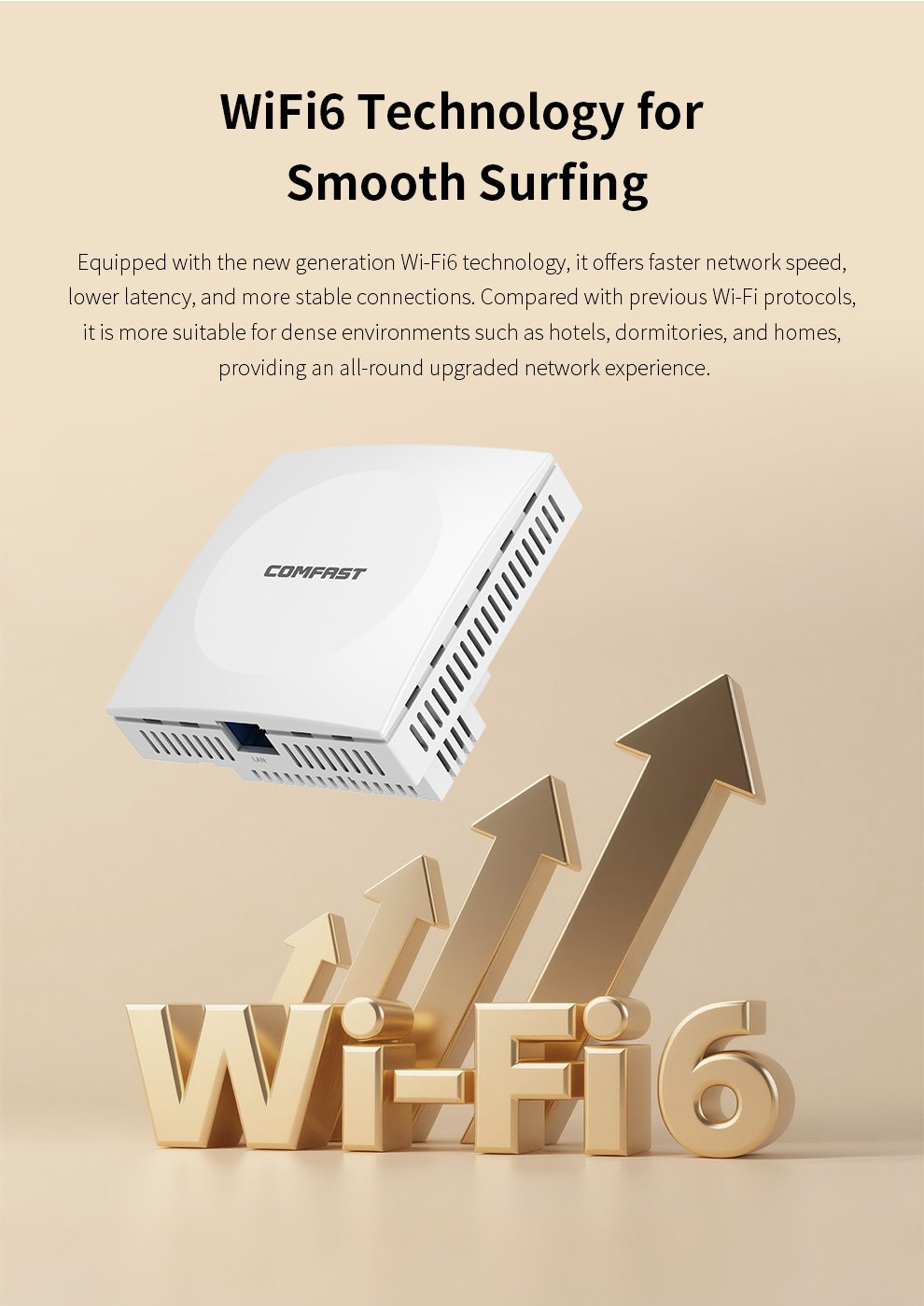

The CF-E593AX is a high-performance WiFi 6 panel AP with dual-band speeds up to 3000Mbps. It features advanced Mesh technology for seamless coverage and roaming, making it ideal for large indoor areas like malls, hotels, and schools.
-

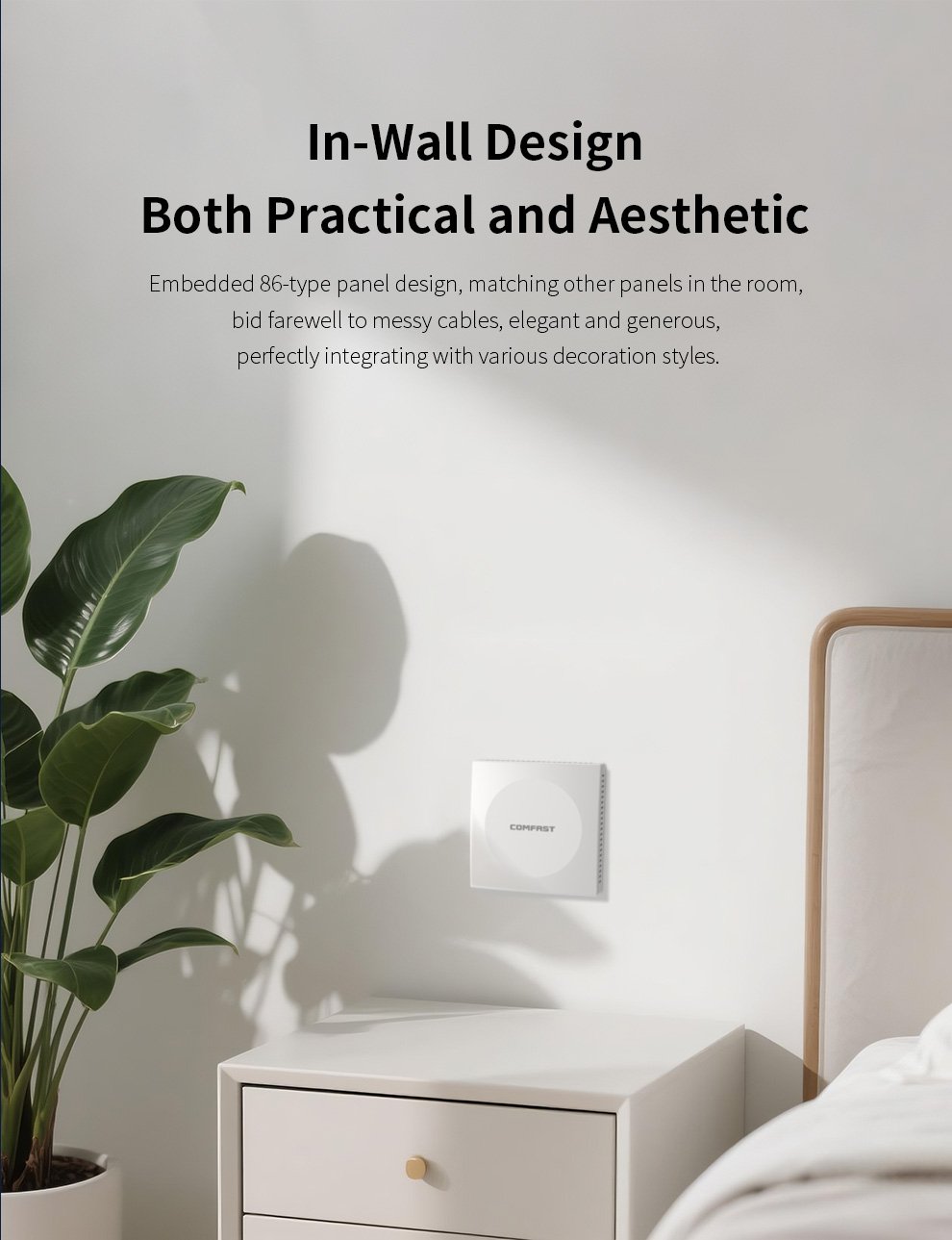

Standard 86 Design: Fits seamlessly into any space.
-
Gill-style Heat Dissipation: Excellent cooling performance.
-

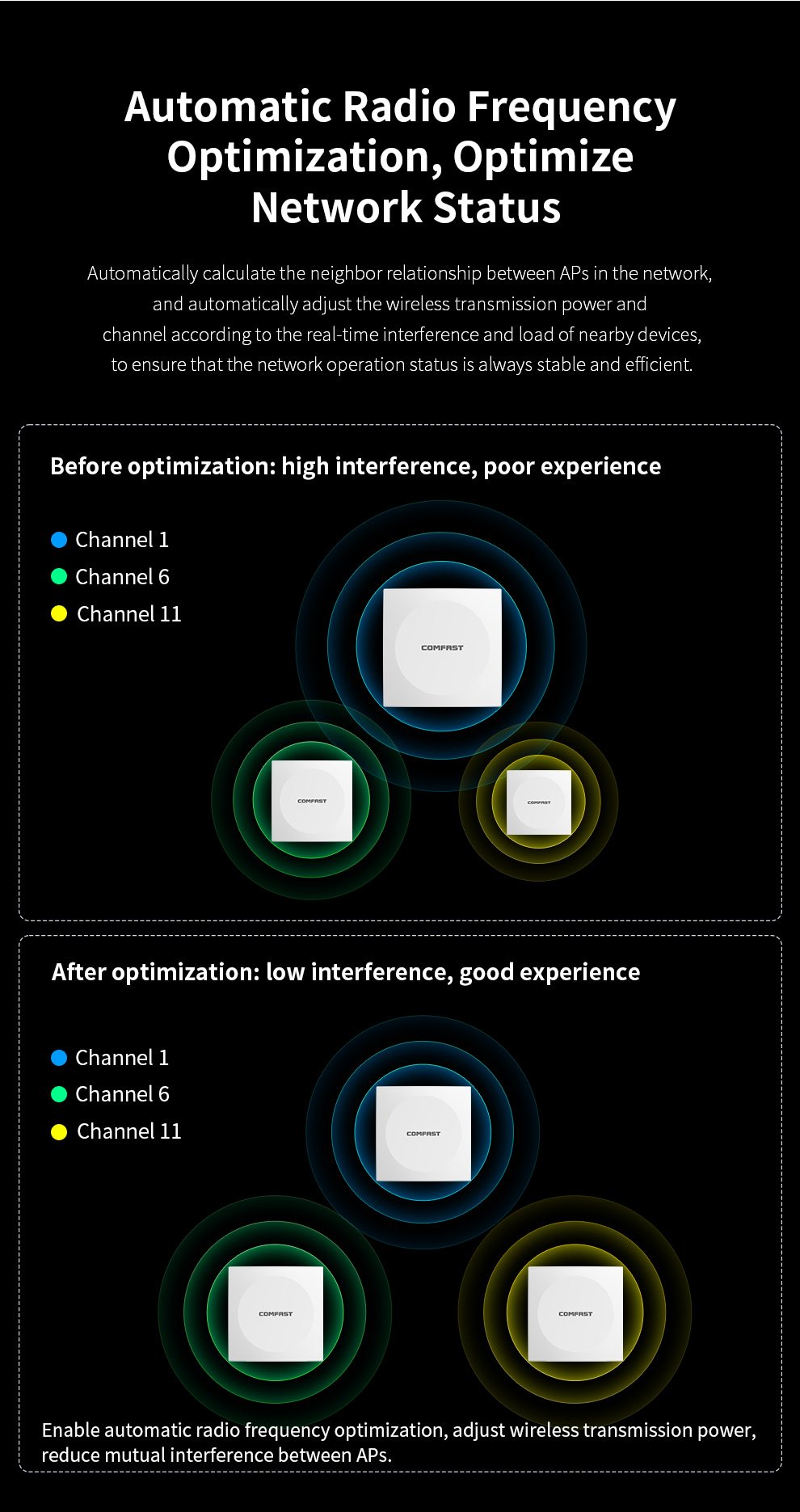

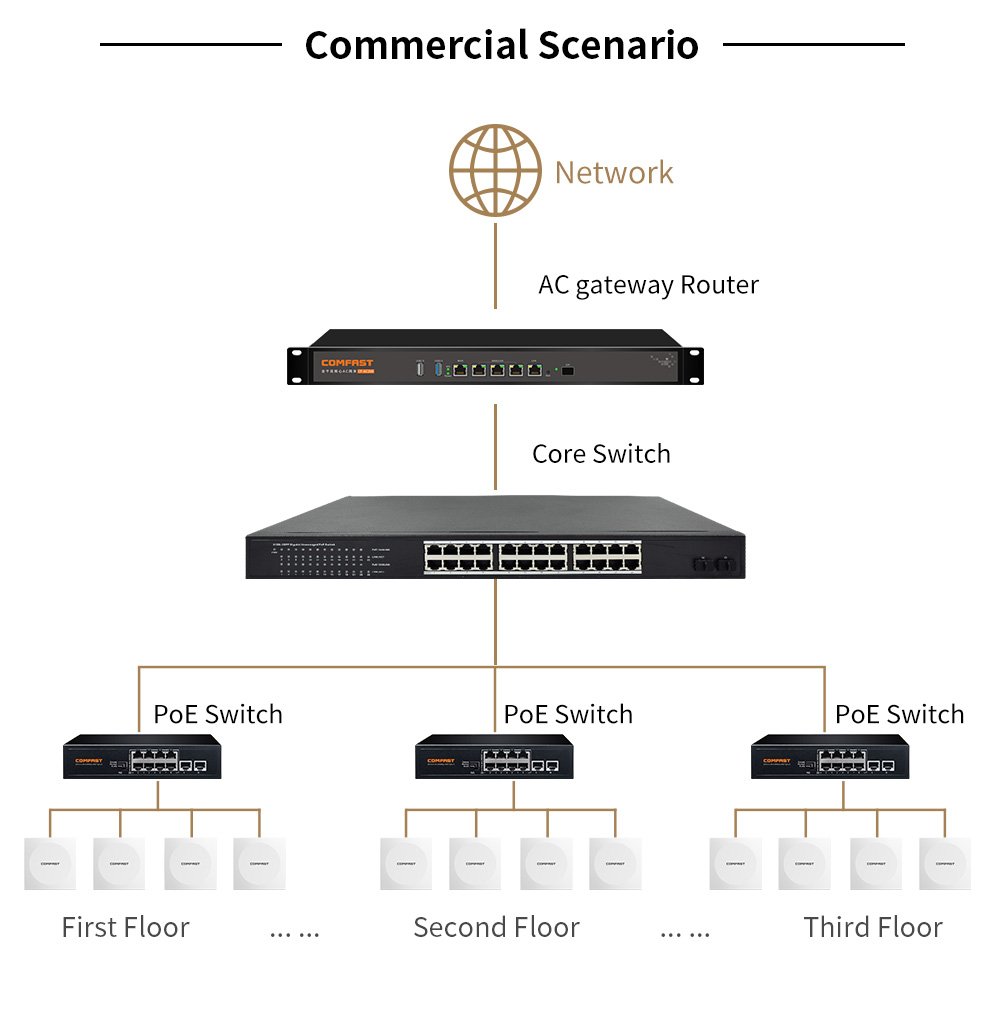

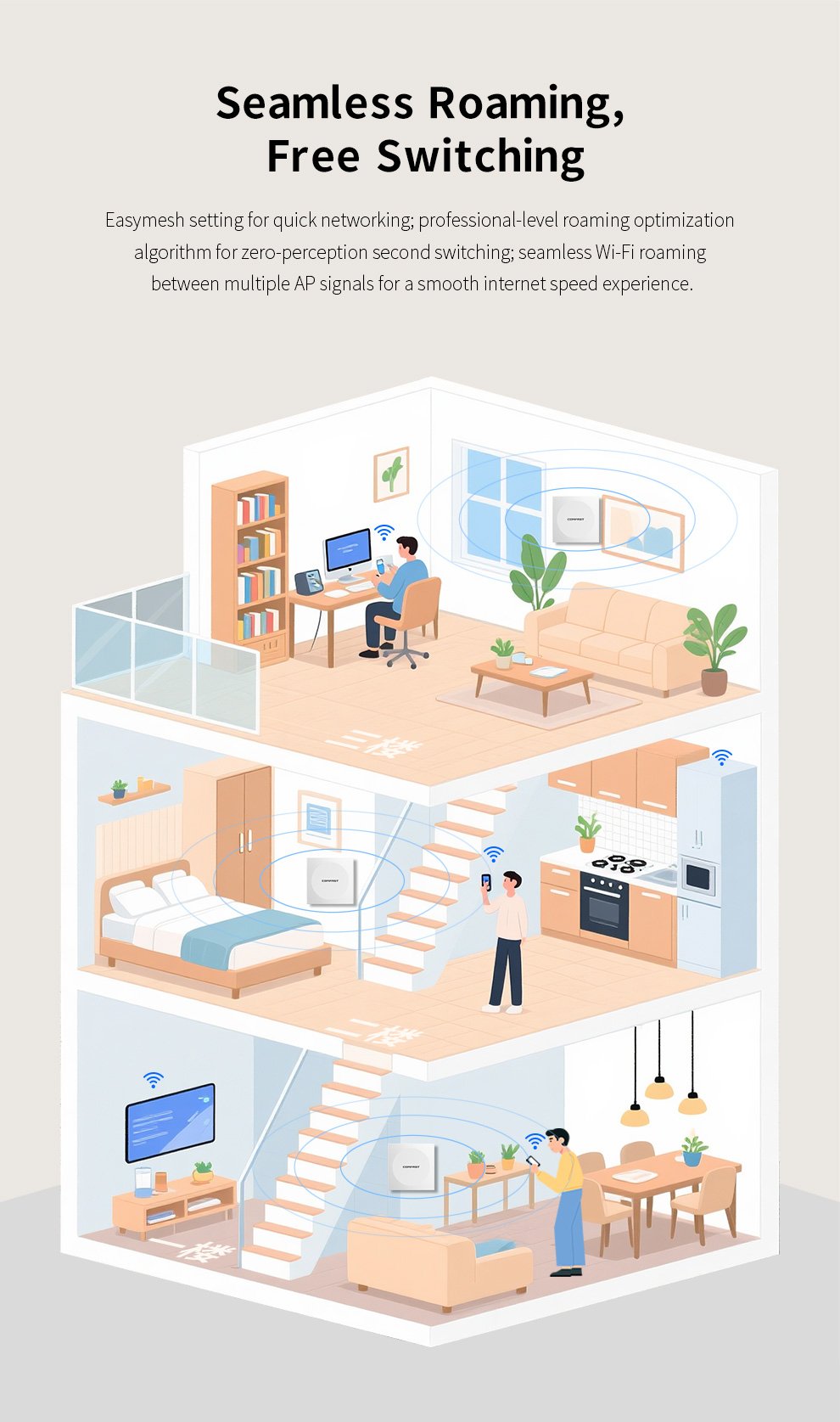

Mesh Technology: Easy setup with seamless coverage.
-

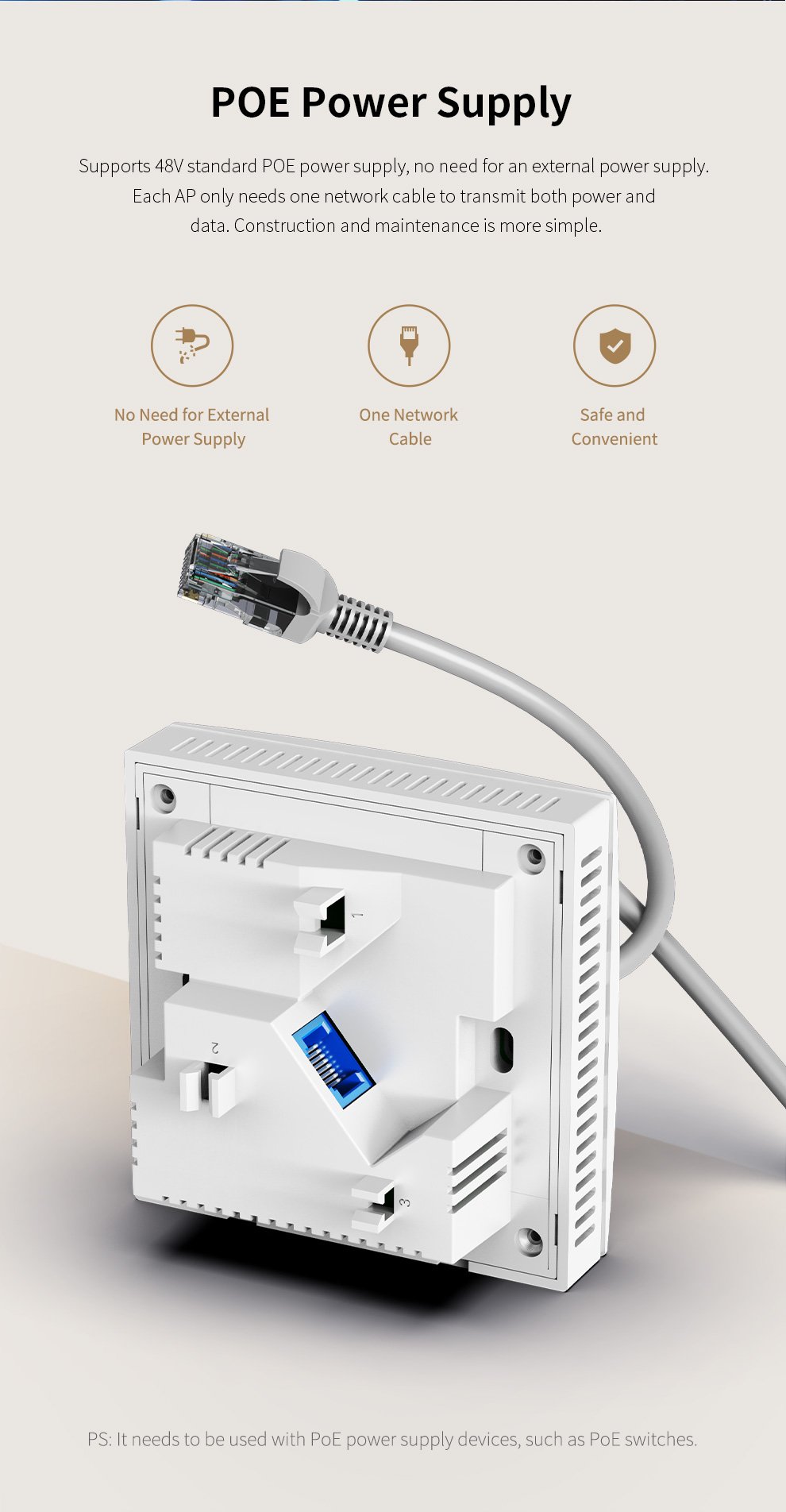

48V POE Power: Safe and reliable power supply.
-

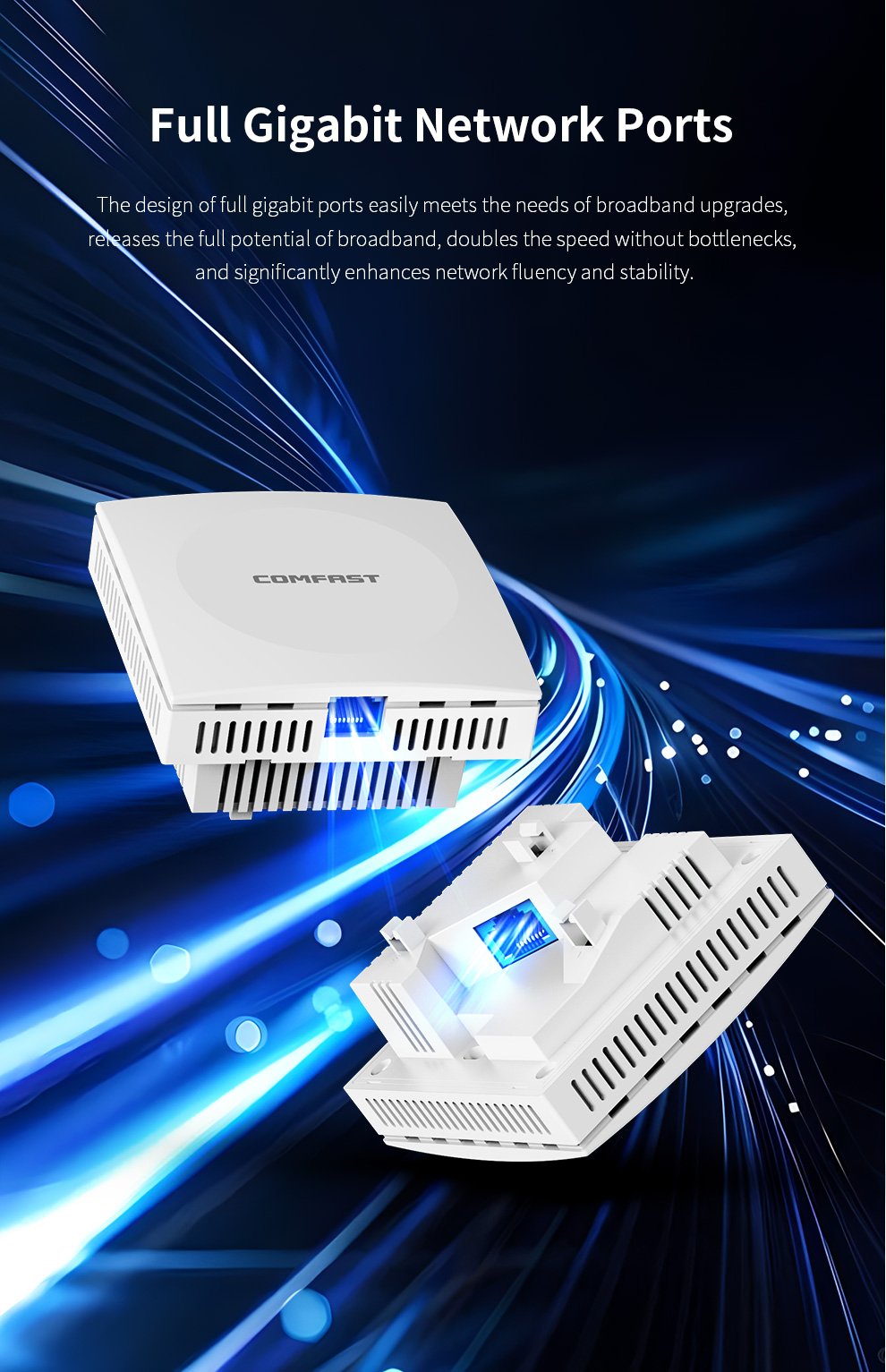

Gigabit Ports: Fast, smooth wired connection.
-

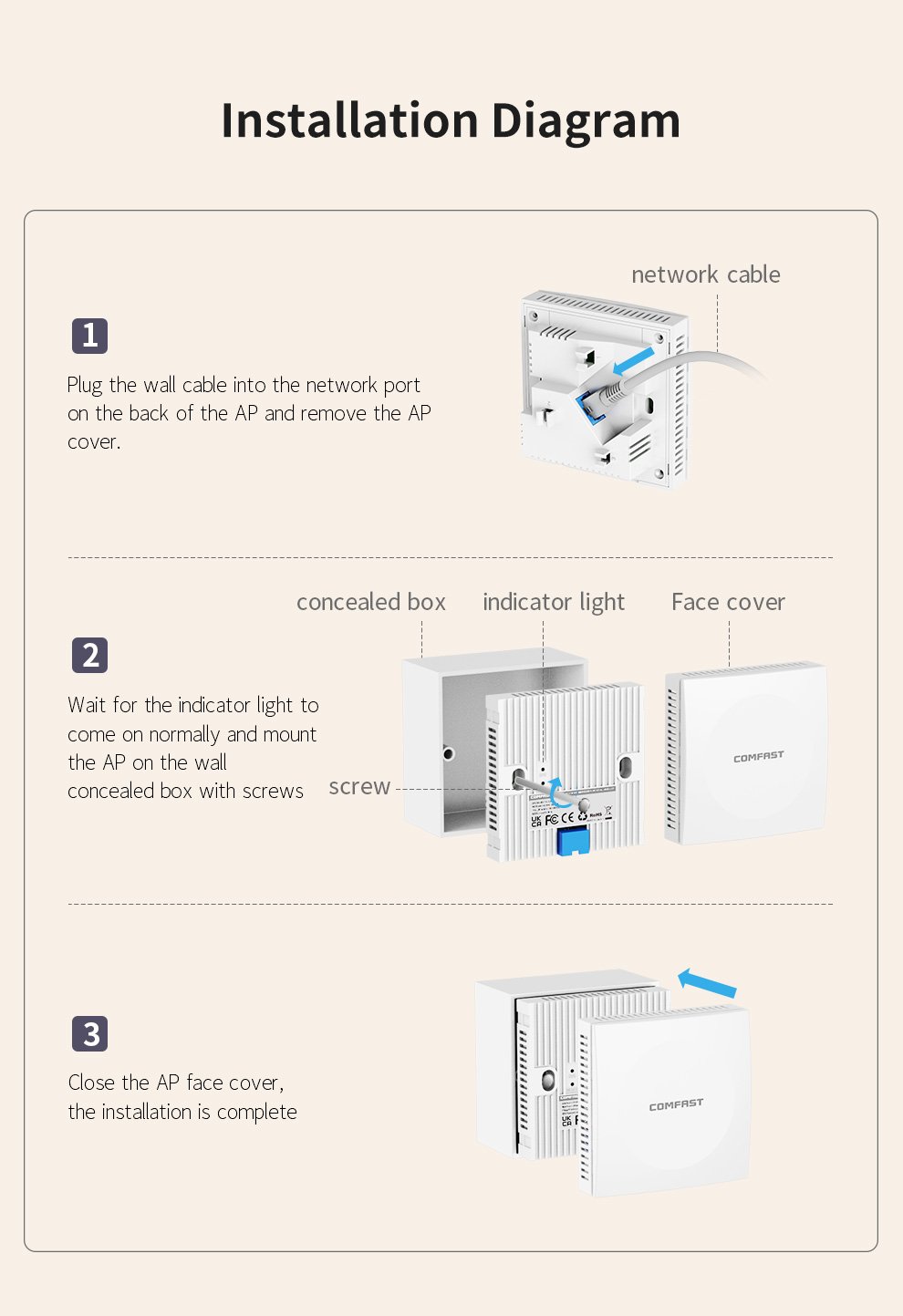

Wall/Ceiling Mountable: Flexible installation options.
Contact Us
Product Repair
Repair Address
3rd Floor, Building 2, Hongxin Industrial Park, No. 1303,
Guanguang Road, Xinlan Community, Guanlan Street,
Longhua District, Shenzhen, Guangdong
Telephone
0755 83790059
Service Time
Monday to Saturday
8:00-12:00, 13:30-17:00
18:00-20:30(weekdays only)

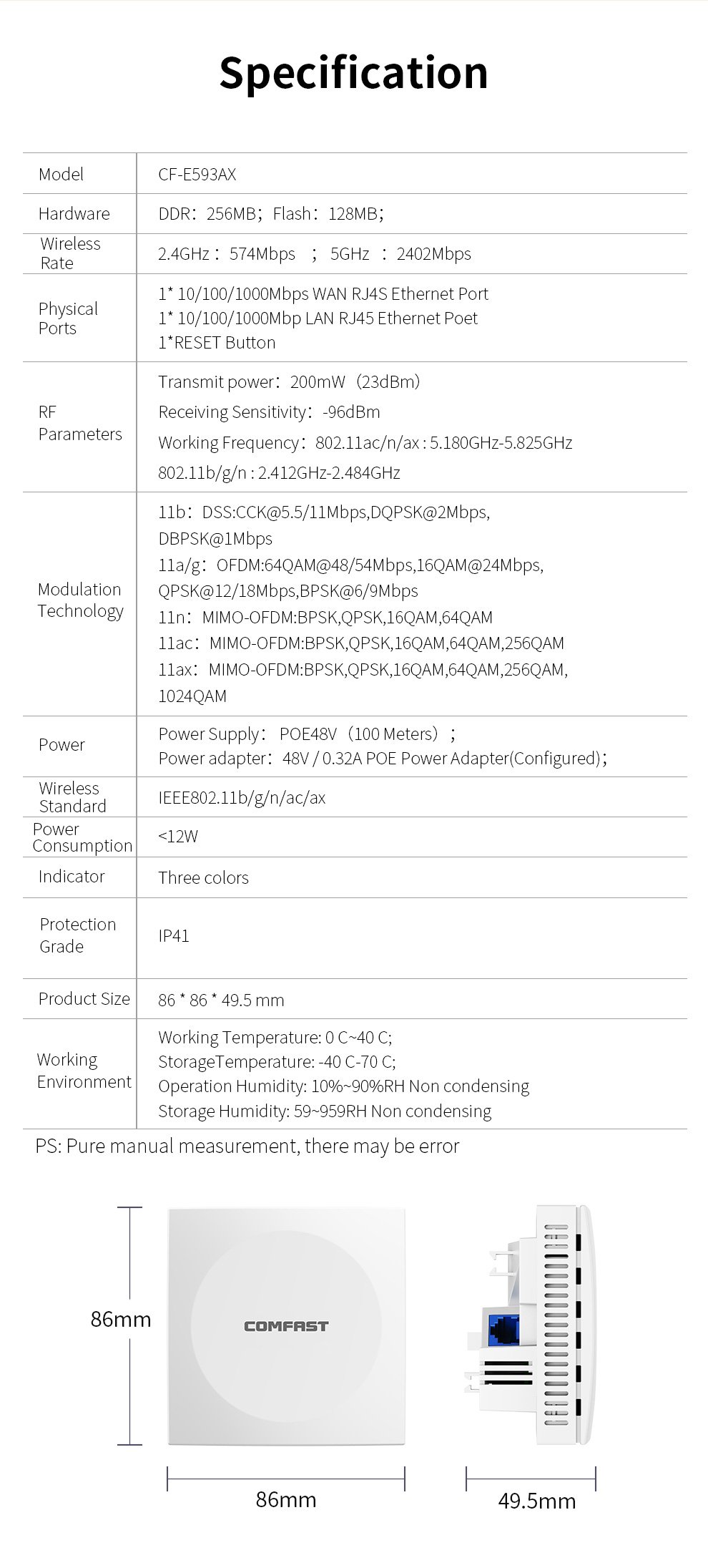

| Specification | Details |
|---|---|
| Chipset | MT7981B + MT7976CN + AN8801SB |

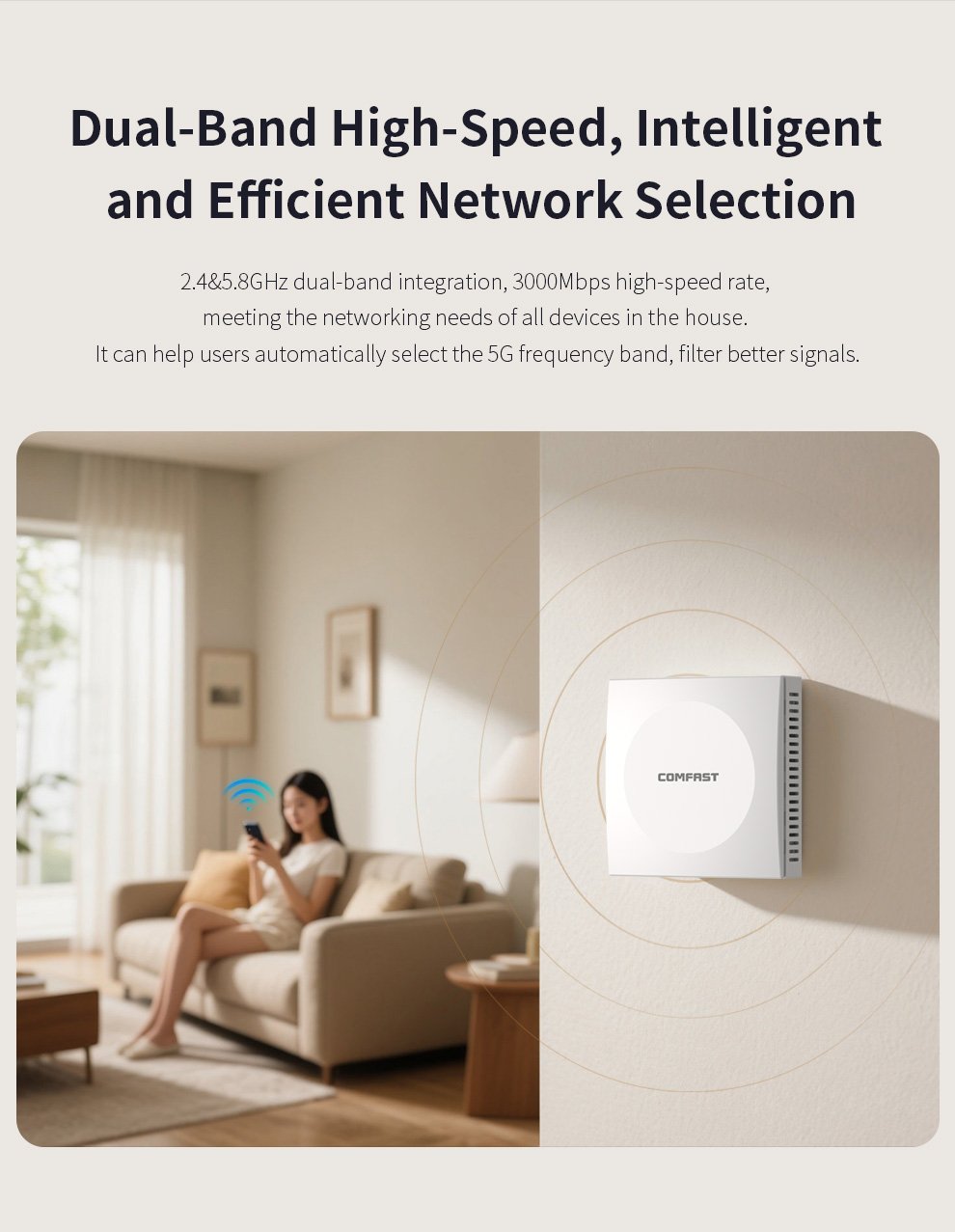

| Wireless Standard | IEEE 802.11a/b/g/n/ac/ax |
| Memory & Storage | RAM: 256MB, Flash: 128MB |
| RF Parameters | Max Transmission Power: 200mW (23dBm) |
| Min Receive Sensitivity: -96dBm | |
| Operating Frequency: | |
| 802.11a/n/ac/ax: 5.180GHz – 5.825GHz | |
| 802.11b/g/n/ax: 2.412GHz – 2.484GHz | |
| Physical Ports | 1 x 10/100/1000Mbps WAN RJ45 (supports 48V POE) |
| 1 x 10/100/1000Mbps LAN RJ45 | |
| 1 x RESET button | |
| Antenna Gain | 2 x 2.4G/5G 3dBi, 1 x 5G 3.48dBi |
| Power Supply | POE 48V (up to 100 meters) |
| POE Adapter: 48V/0.32A | |
| Max Power Consumption | <12W |
| MTBF (Mean Time Between Failures) | >25,000 hours |
| Installation Type | Wall Mount, Ceiling Mount |
| Protection Rating | IP41 |
| Product Dimensions | 86mm x 86mm x 42.9mm (manual measurement, slight error) |
| LED Indicators | 3-color LED (LAN, WAN, WLAN) |
| Environmental Conditions | Operating Temperature: 0℃ to 40℃ |
| Storage Temperature: -40℃ to 70℃ | |
| Operating Humidity: 10% to 90% RH (non-condensing) | |
| Storage Humidity: 5% to 90% RH (non-condensing) |
