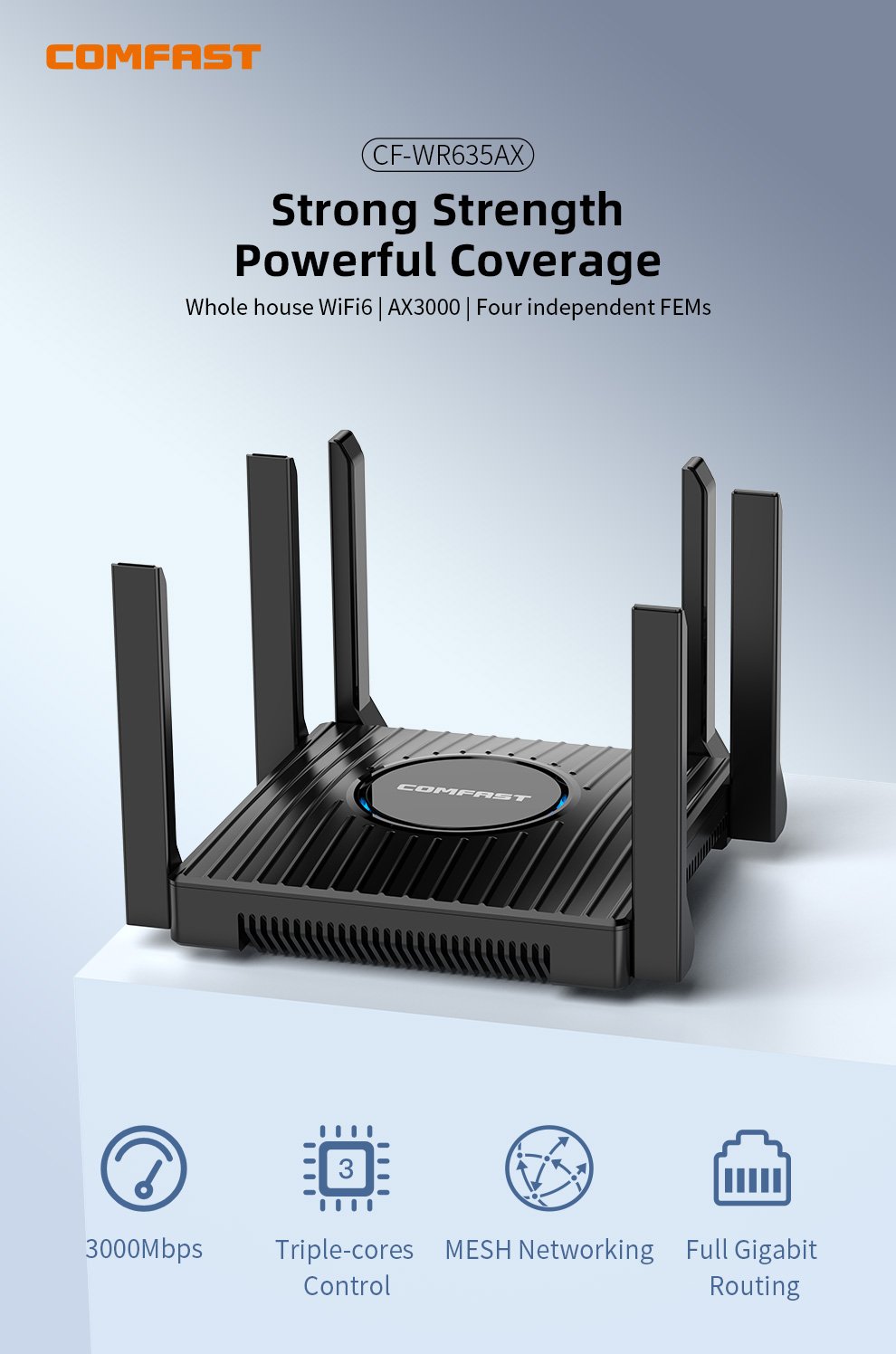

The CF-WR635AX is a high-speed Wi-Fi 6 mesh router, offering fast bandwidth, low latency, wide coverage, and easy setup. Its mesh feature ensures seamless interconnection for full coverage in large areas.
Sleek All-Black Striped Design: A modern, tech-inspired look.
Full Gigabit Ports: Ensures smoother wired connections.

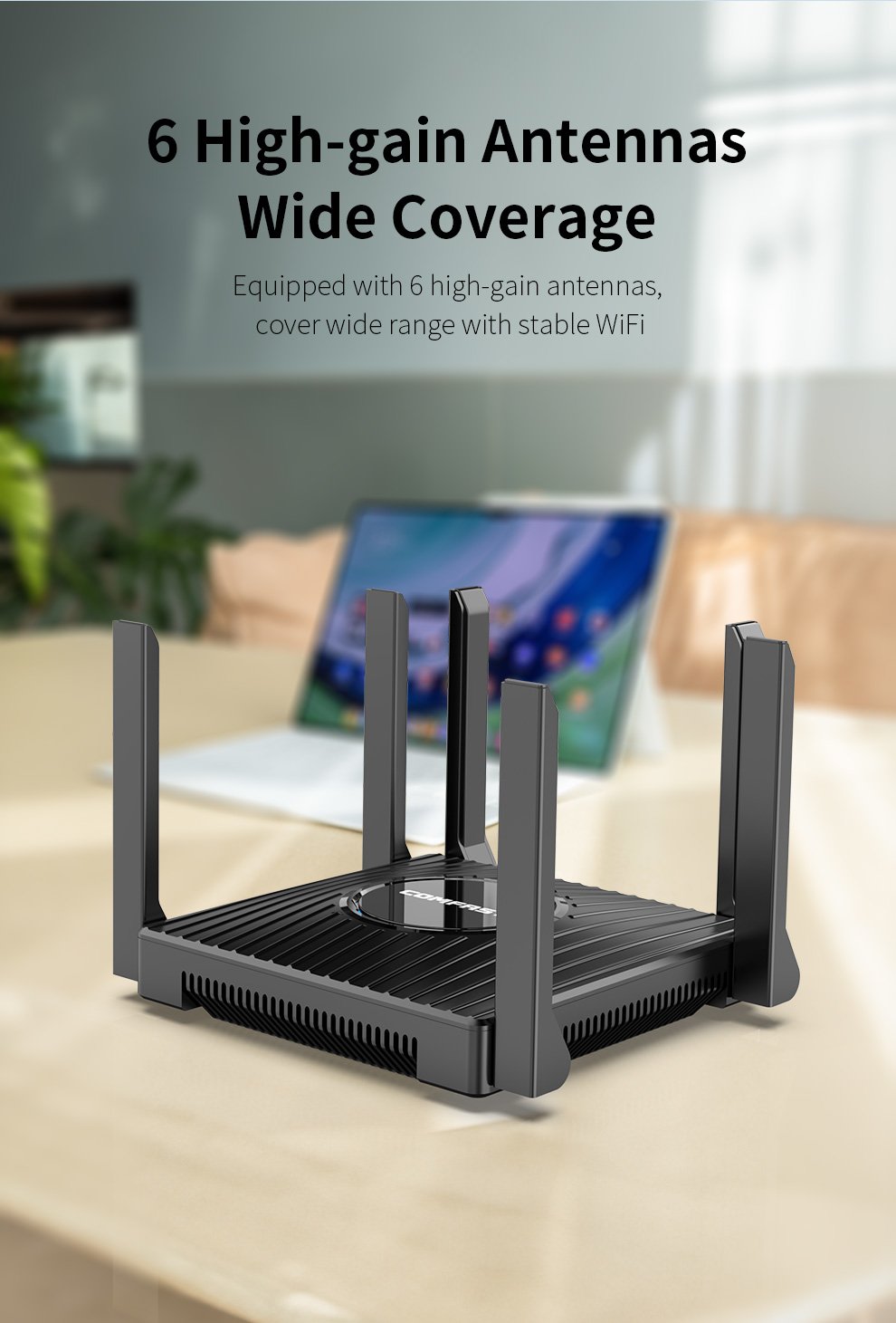

High-Gain Antennas: Improved signal sensitivity for better reception.
Premium ABS Material: Heat-resistant and durable.

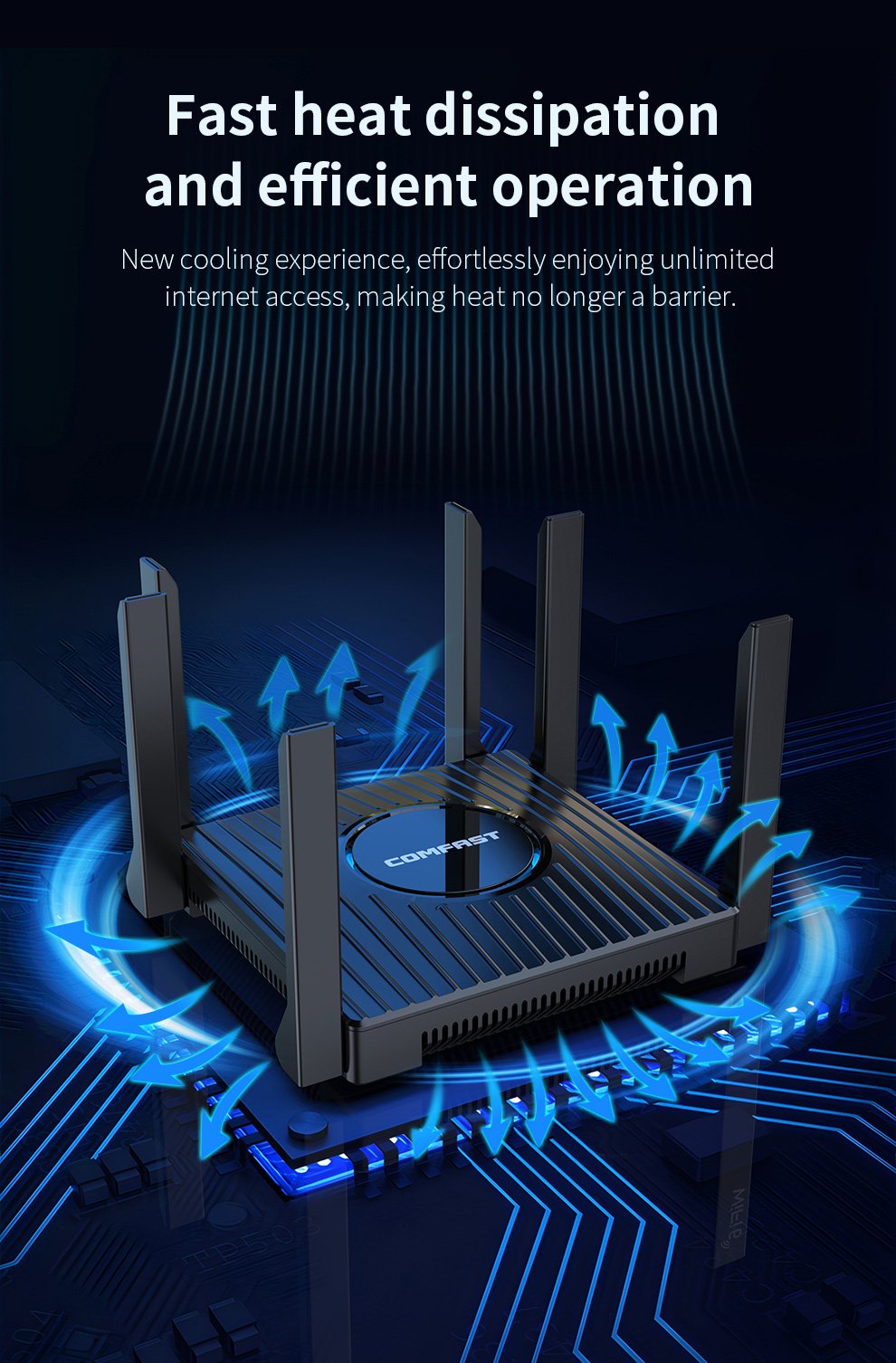

Bottom Heat Dissipation Design: Enhanced cooling performance.
Status Indicator Lights: Conveniently monitor device operation.
3rd Floor, Building 2, Hongxin Industrial Park, No. 1303,
Guanguang Road, Xinlan Community, Guanlan Street,
Longhua District, Shenzhen, Guangdong
0755 83790059
Monday to Saturday
8:00-12:00, 13:30-17:00
18:00-20:30(weekdays only)

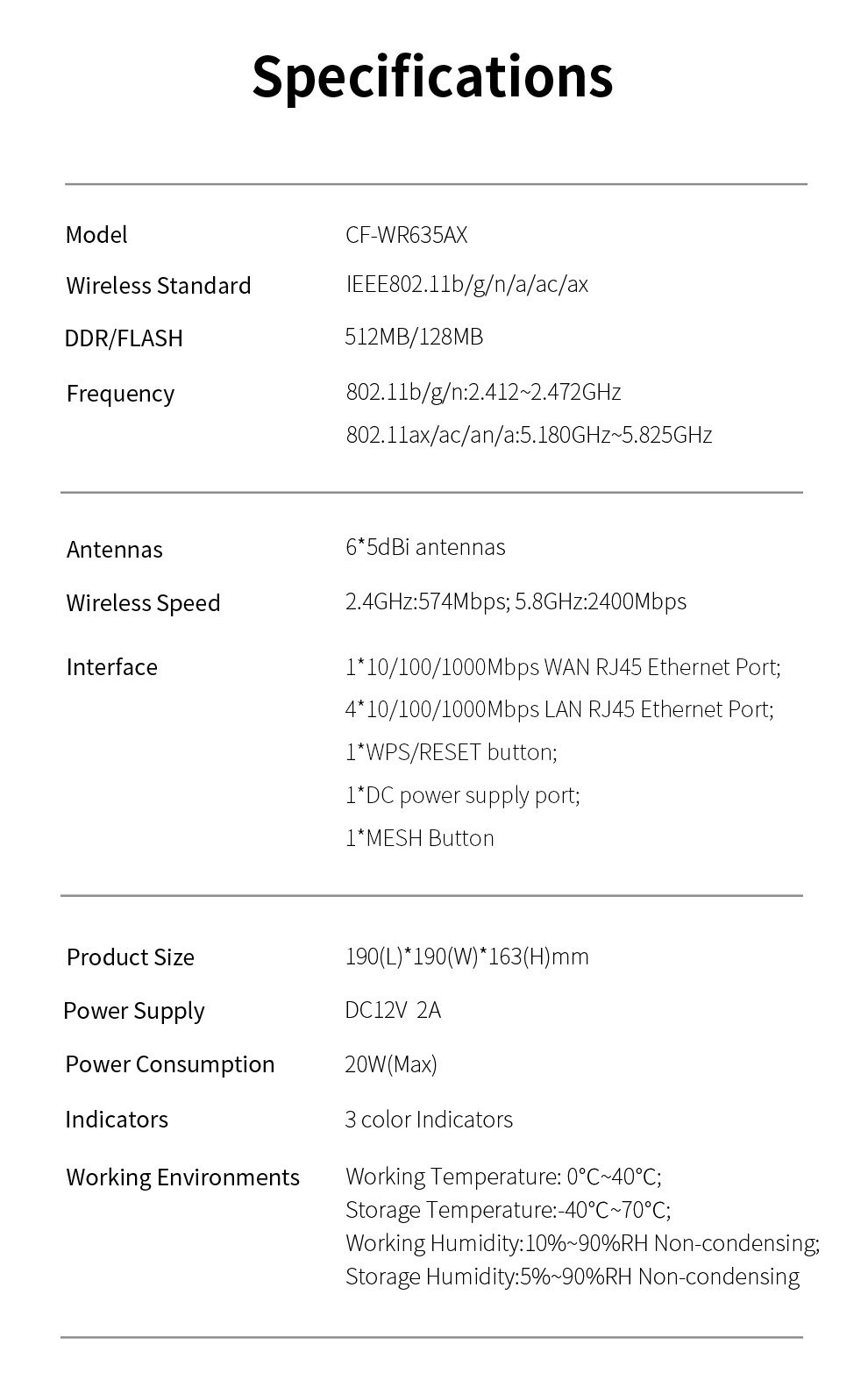

| Specification | Details |
|---|---|
| Chipset | IPQ5018 + QCN6102 + QCA8337 |
| Memory & Storage | RAM: 512MB, Flash: 128MB |
| Wireless Standard | IEEE 802.11a/b/g/n/ac/ax |

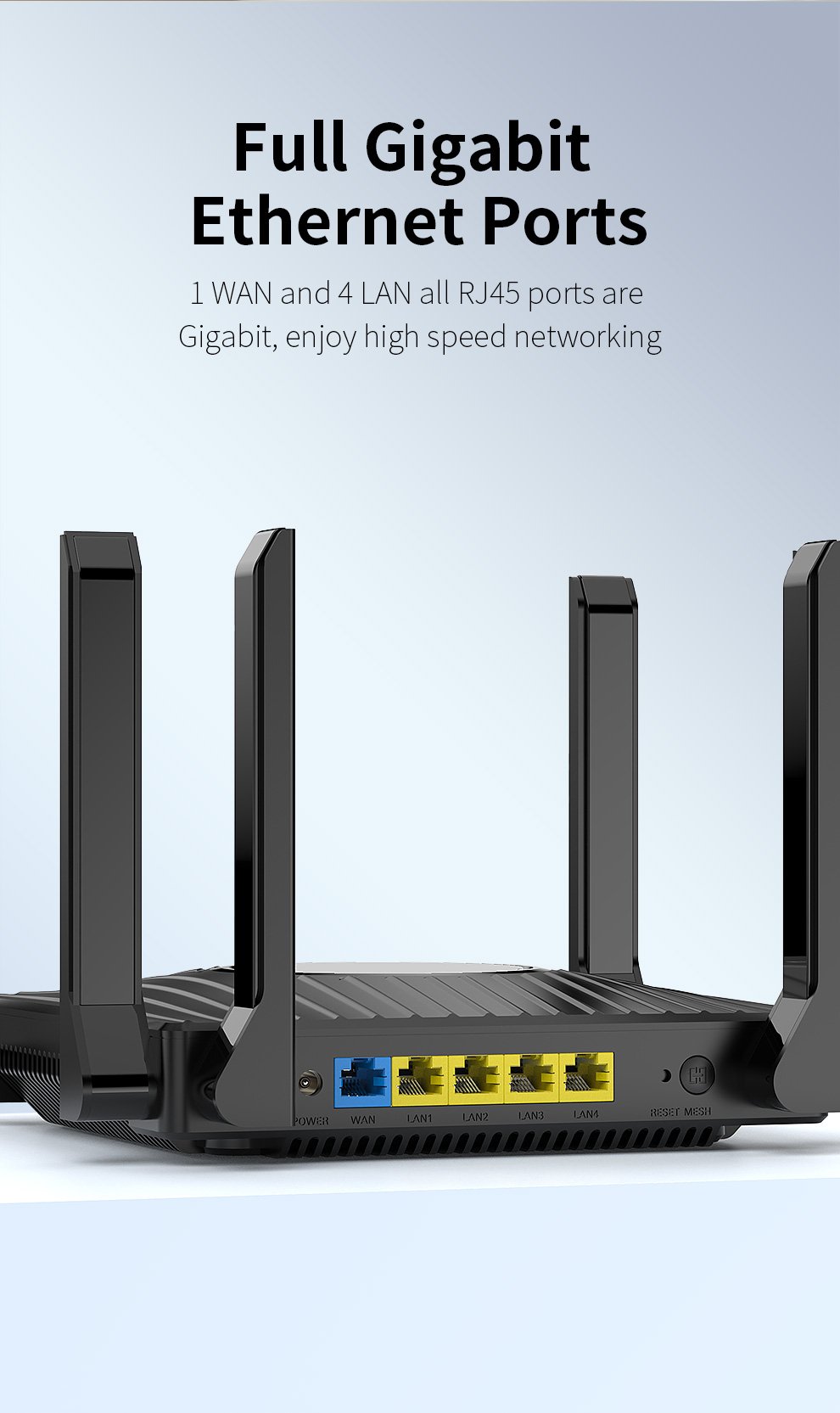

| Physical Ports | 1 x 10/100/1000Mbps RJ45 WAN, 4 x 10/100/1000Mbps RJ45 LAN, 1 x WPS/RESET, 1 x DC Power, 1 x MESH Button |
| Antenna Gain | 6 x 5dBi antennas |

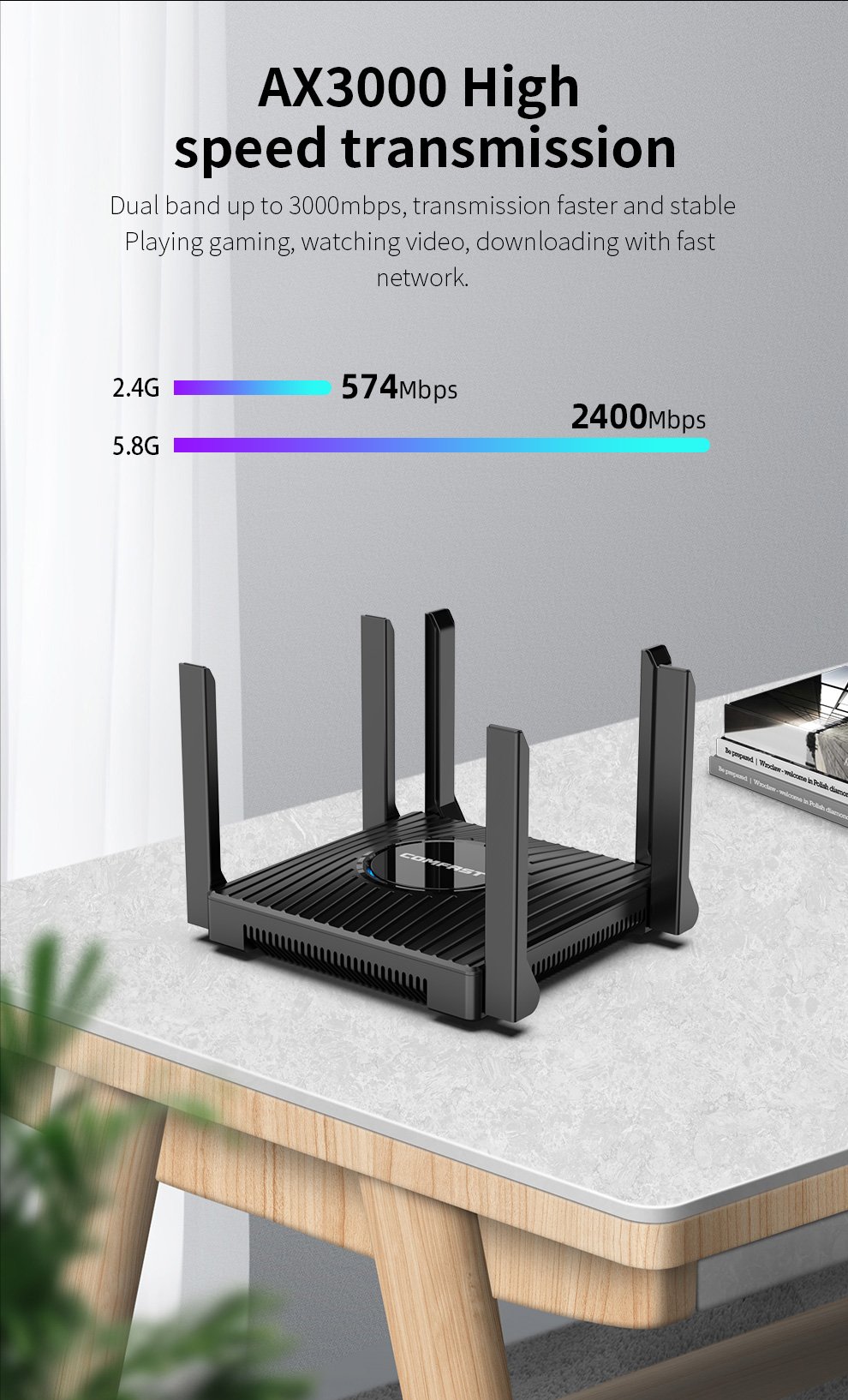

| Wireless Rate | 2.4GHz: 574Mbps, 5.8GHz: 2402Mbps |
| Max Power Consumption | 20W |
| Power Supply | DC 12V, 1.5A Adapter |
| Transmission Power | Max: 26dBm, Min Rx Sensitivity: -96dBm |
| Operating Frequency | 2.4GHz: 802.11b/g/n, 5.8GHz: 802.11ax/ac/an/a |
| Installation Type | Desktop (Stand) |
| MTBF (Mean Time Between Failures) | >250,000 hours |

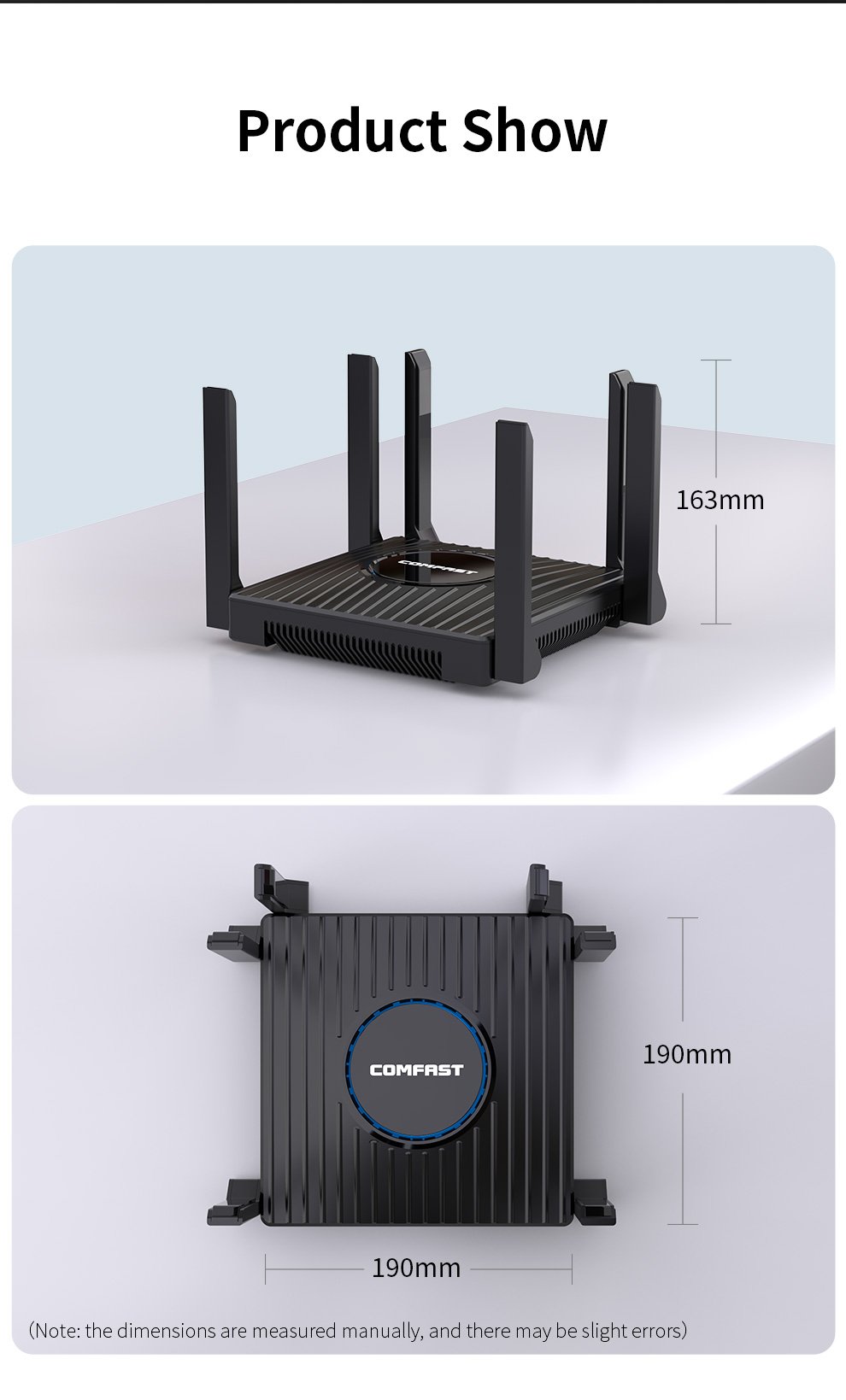

| Product Dimensions | 190mm (L) x 190mm (W) x 162.51mm (H) |
| Protection Rating | IP31 |
| Indicators | Tri-color LED |
| Operating Temperature | 0℃ to 40℃ |
| Storage Temperature | -40℃ to 70℃ |
| Operating Humidity | 10% to 90% RH (non-condensing) |
