Description

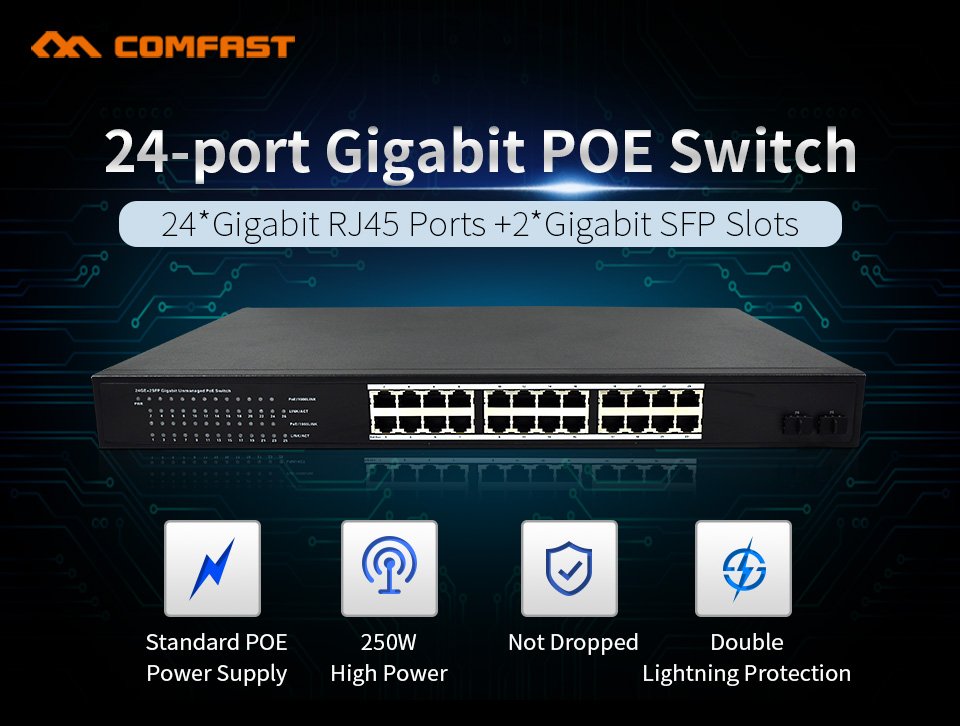

24-port Gigabit POE Switch
24-port Gigabit POE Switch

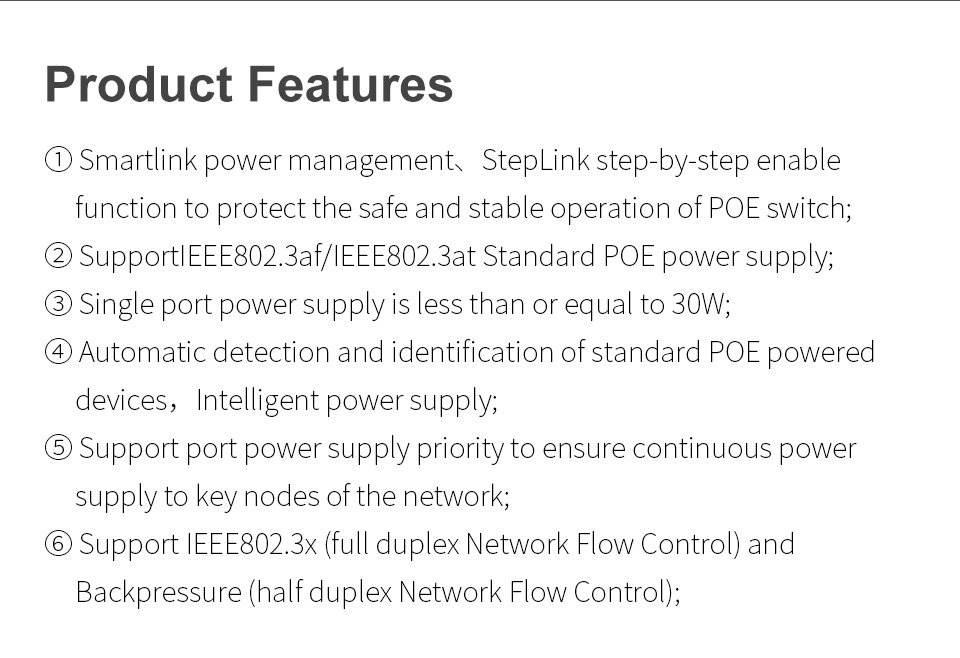

The CF-SG1241P is a Gigabit unmanaged PoE switch with 24 auto-sensing RJ45 ports, supporting IEEE 802.3af/at PoE for automatic power detection and delivery via network cables.
Contact Us
Product Repair
Repair Address
3rd Floor, Building 2, Hongxin Industrial Park, No. 1303,
Guanguang Road, Xinlan Community, Guanlan Street,
Longhua District, Shenzhen, Guangdong
Telephone
0755 83790059
Service Time
Monday to Saturday
8:00-12:00, 13:30-17:00
18:00-20:30(weekdays only)

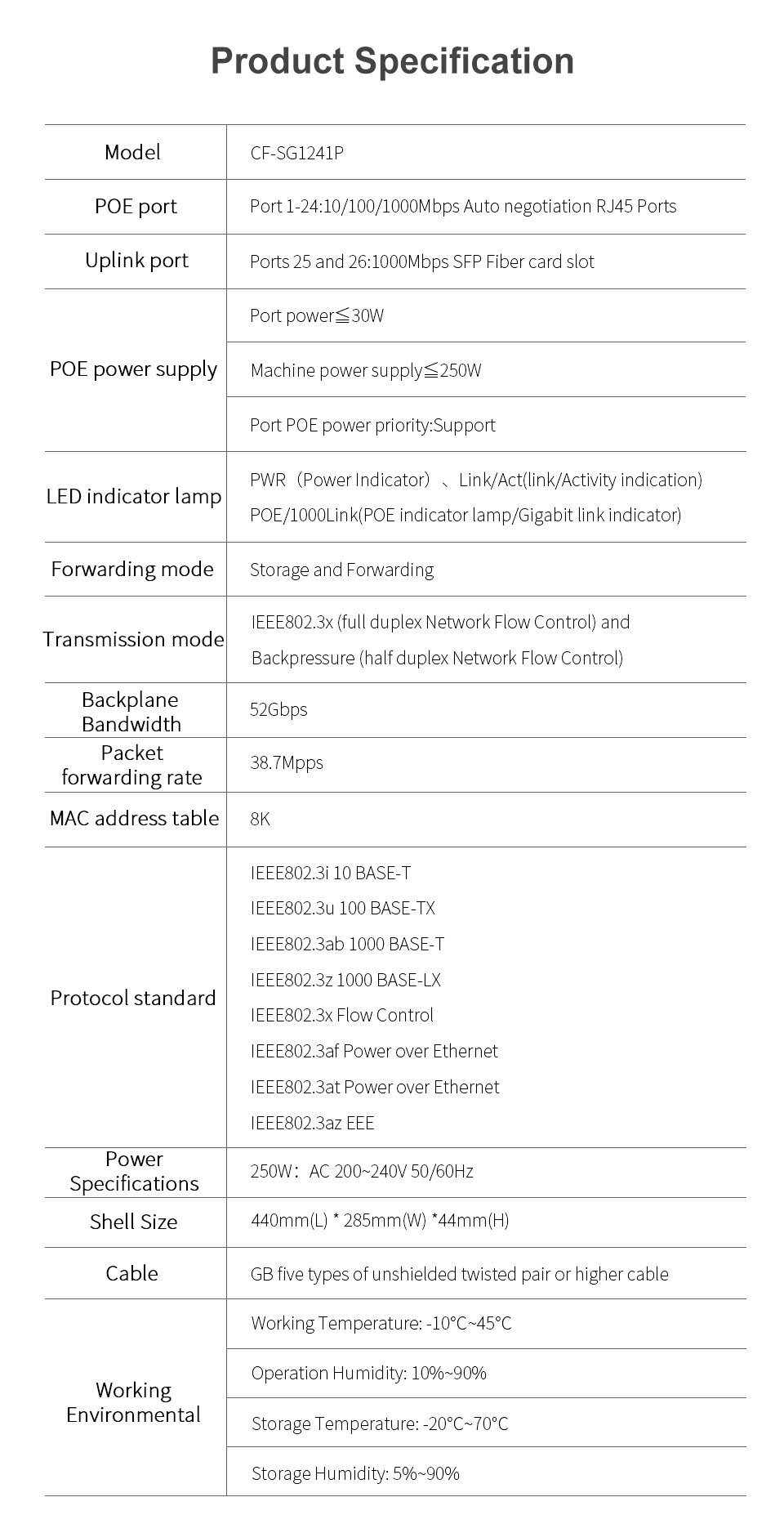

| Product Model | CF-SG1241P |
|---|---|
| Port Description | |

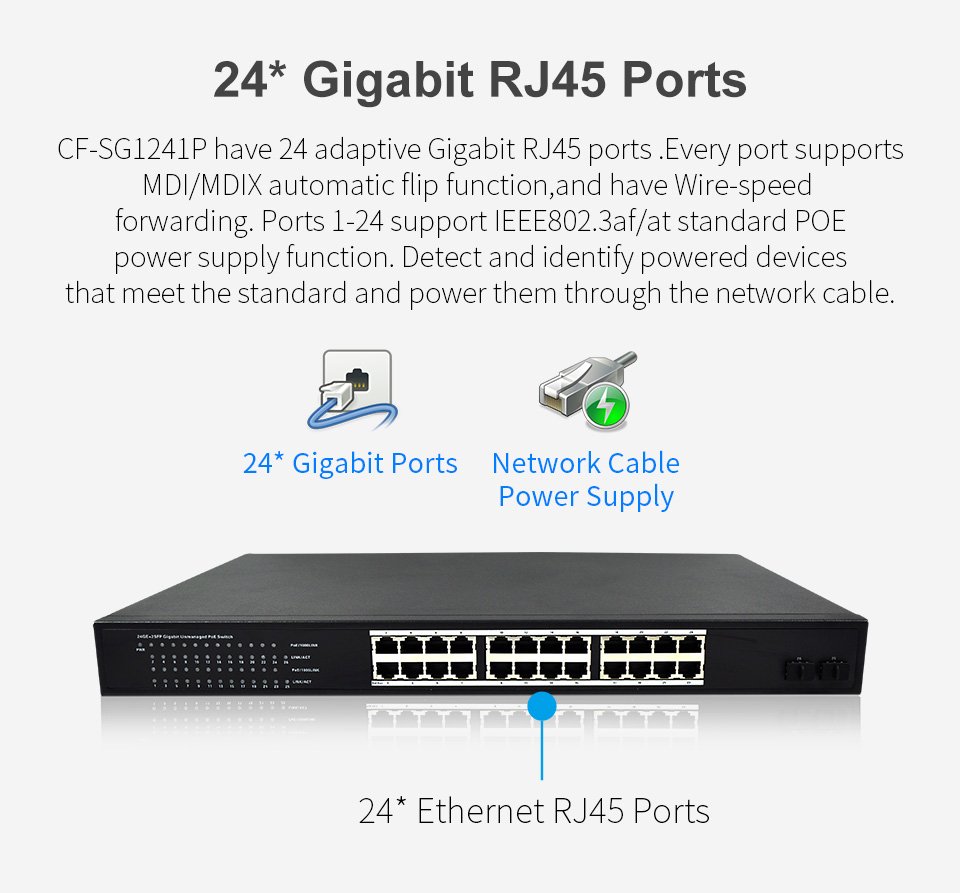

| PoE Ports | Ports 1-24: 10/100/1000M auto-negotiating RJ45 ports |

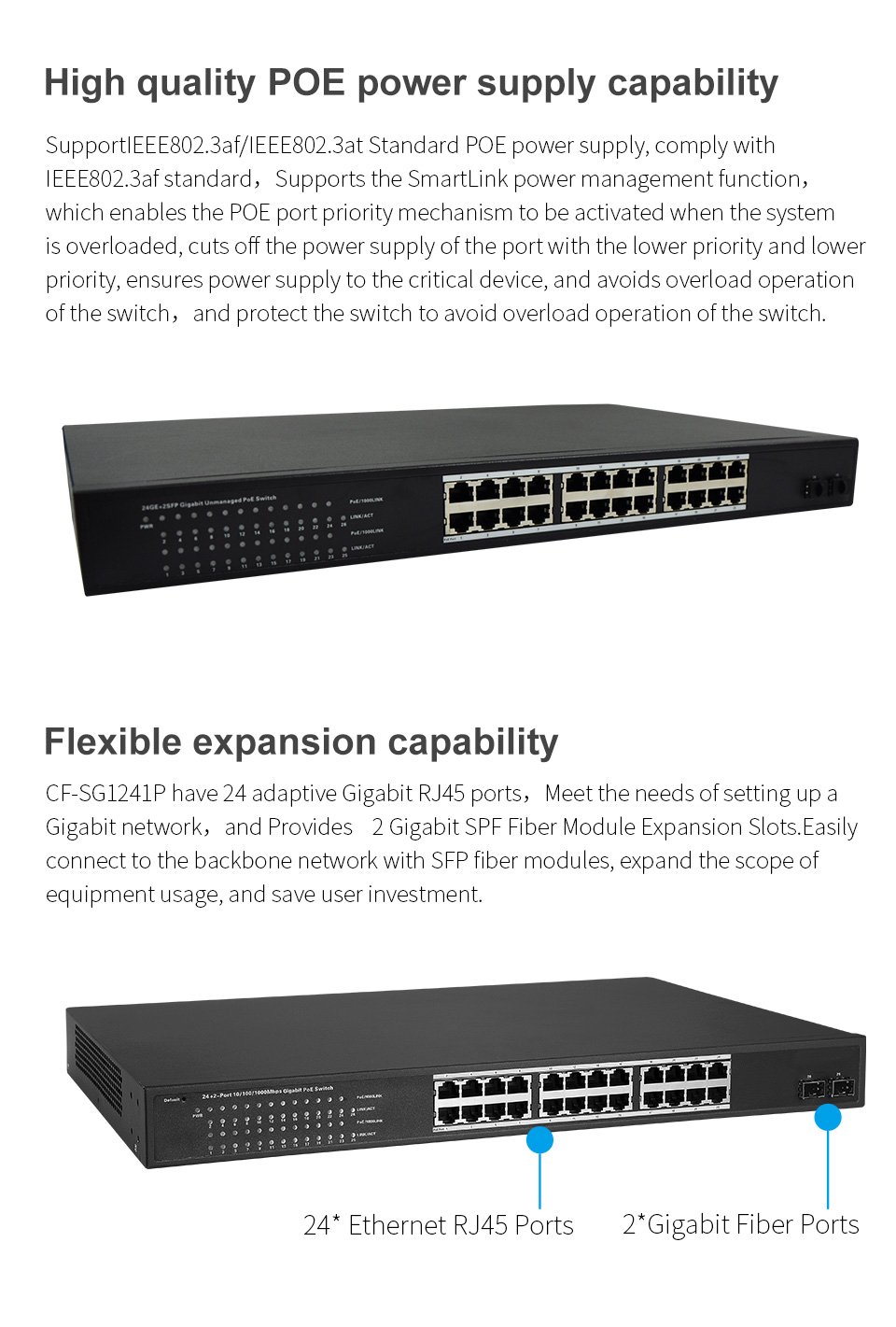

| Uplink Ports | Ports 25, 26: 1000M SFP fiber optic slots |
| PoE Power Supply | |
| Max Power per Port | 30W |
| Max Power for Entire Device | 280W |

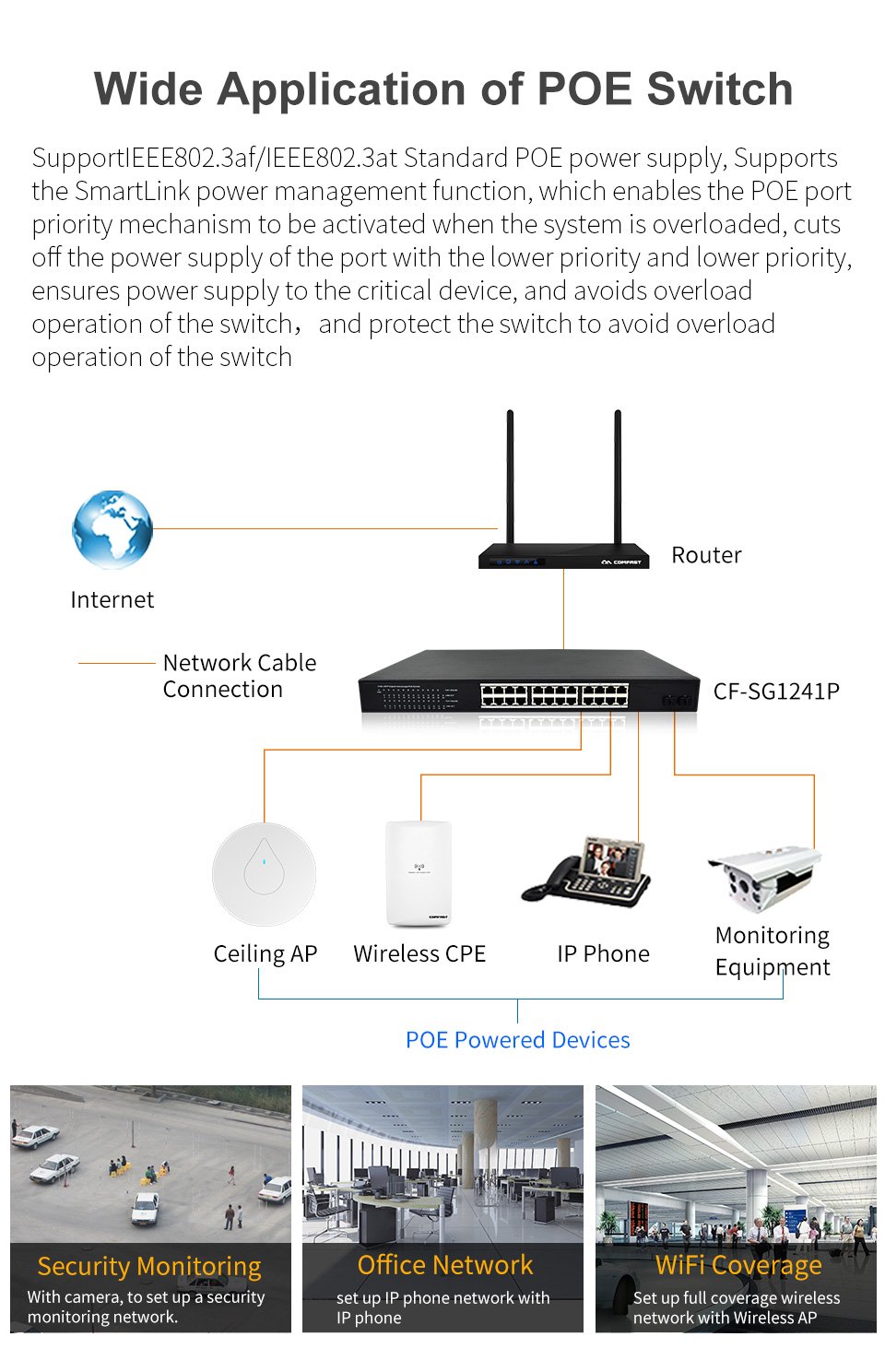

| PoE Priority | Port PoE supply priority |
| LED Indicators | |
| PWR | Power indicator |
| Link/Act | Link/Activity indicator |
| PoE/1000LINK | PoE/1000 Link indicator |
| Forwarding Mode | Store-and-forward |
| Transmission Mode | IEEE802.3X full-duplex flow control and Backpressure half-duplex flow control |
| Performance Specs | |
| Backplane Bandwidth | 52Gbps |
| Packet Forwarding Rate | 38.7Mpps |
| MAC Address Table Size | 8K |
| Protocol Standards | |
| IEEE802.3i | 10 BASE-T |
| IEEE802.3u | 100 BASE-TX |
| IEEE802.3ab | 1000 BASE-T |
| IEEE802.3z | 1000 BASE-LX |
| IEEE802.3x | Flow Control |
| IEEE802.3af | Power over Ethernet |
| IEEE802.3at | Power over Ethernet |
| IEEE802.3az | Energy Efficient Ethernet (EEE) |
| Power Specifications | |
| Power Input | AC 200~240V 50/60Hz |
| Dimensions | 440mm (L) x 285mm (W) x 44mm (H) |
| Cable Requirements | National Standard Category 5 unshielded twisted pair (or higher) cables |
| Environmental Specifications | |
| Storage Temperature | -10℃ to 70℃ |
| Storage Humidity | 5% to 95% |
| Operating Temperature | 0℃ to 40℃ |
| Operating Humidity | 10% to 90% |
