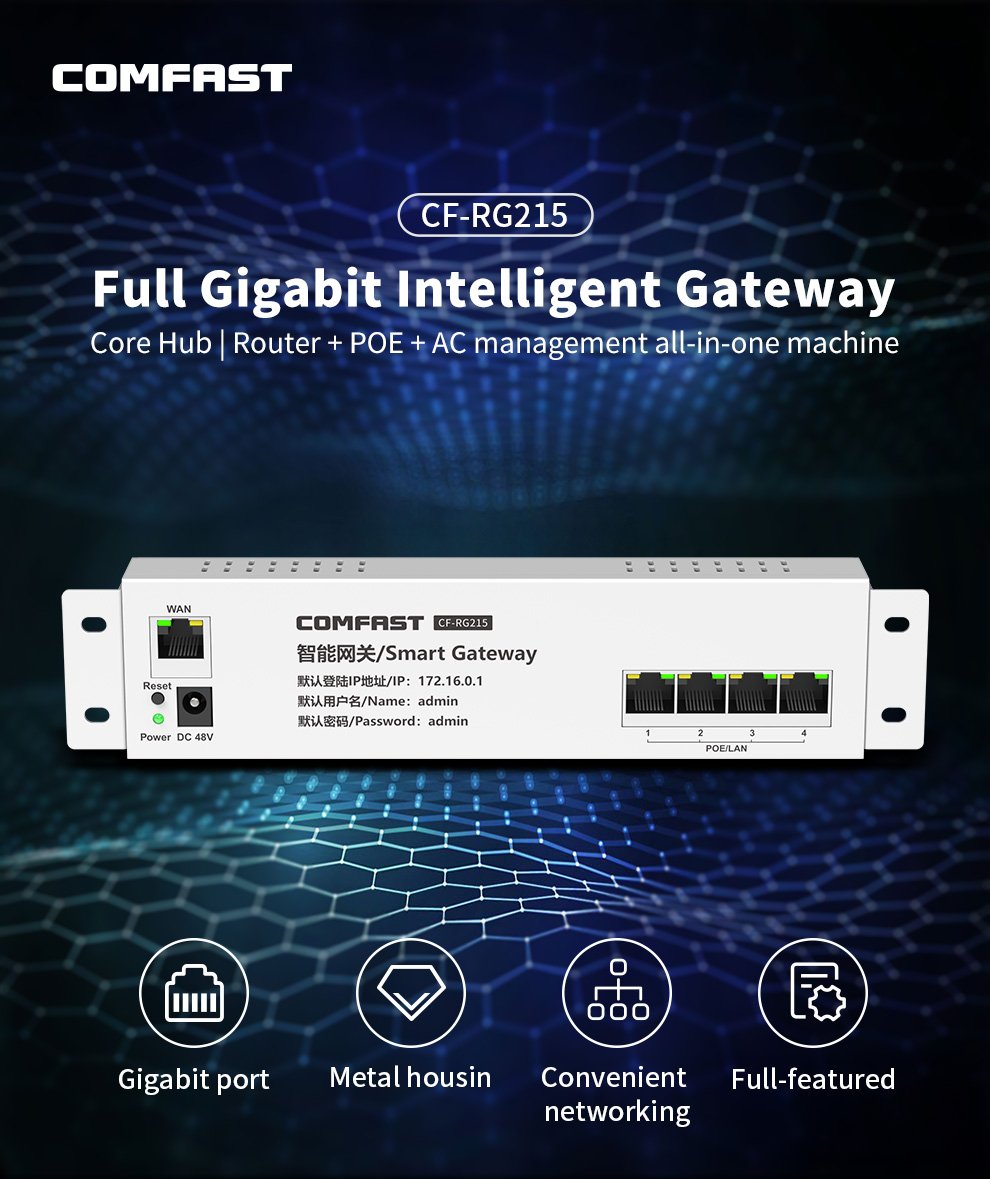

Full Gigabit Smart Gateway with PoE and AC Management
Full Gigabit Smart Gateway with PoE and AC Management
The CF-RG215 is a gigabit gateway with AC management and PoE, eliminating WiFi dead zones and providing stable, high-speed coverage for homes and apartments.
-
Chipset: MT7621A
-
Ethernet Standard: Supports 802.3 Ethernet protocol
-

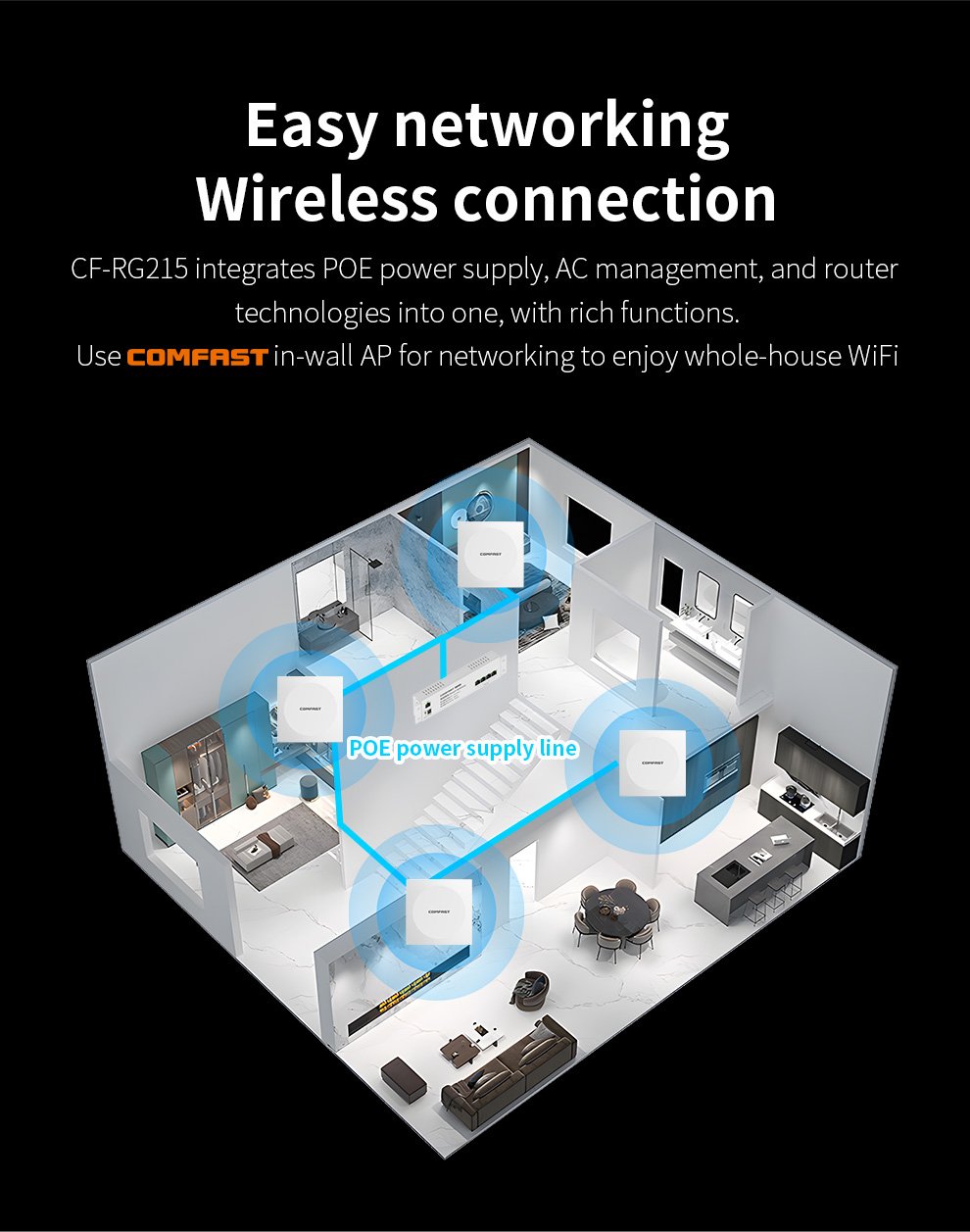

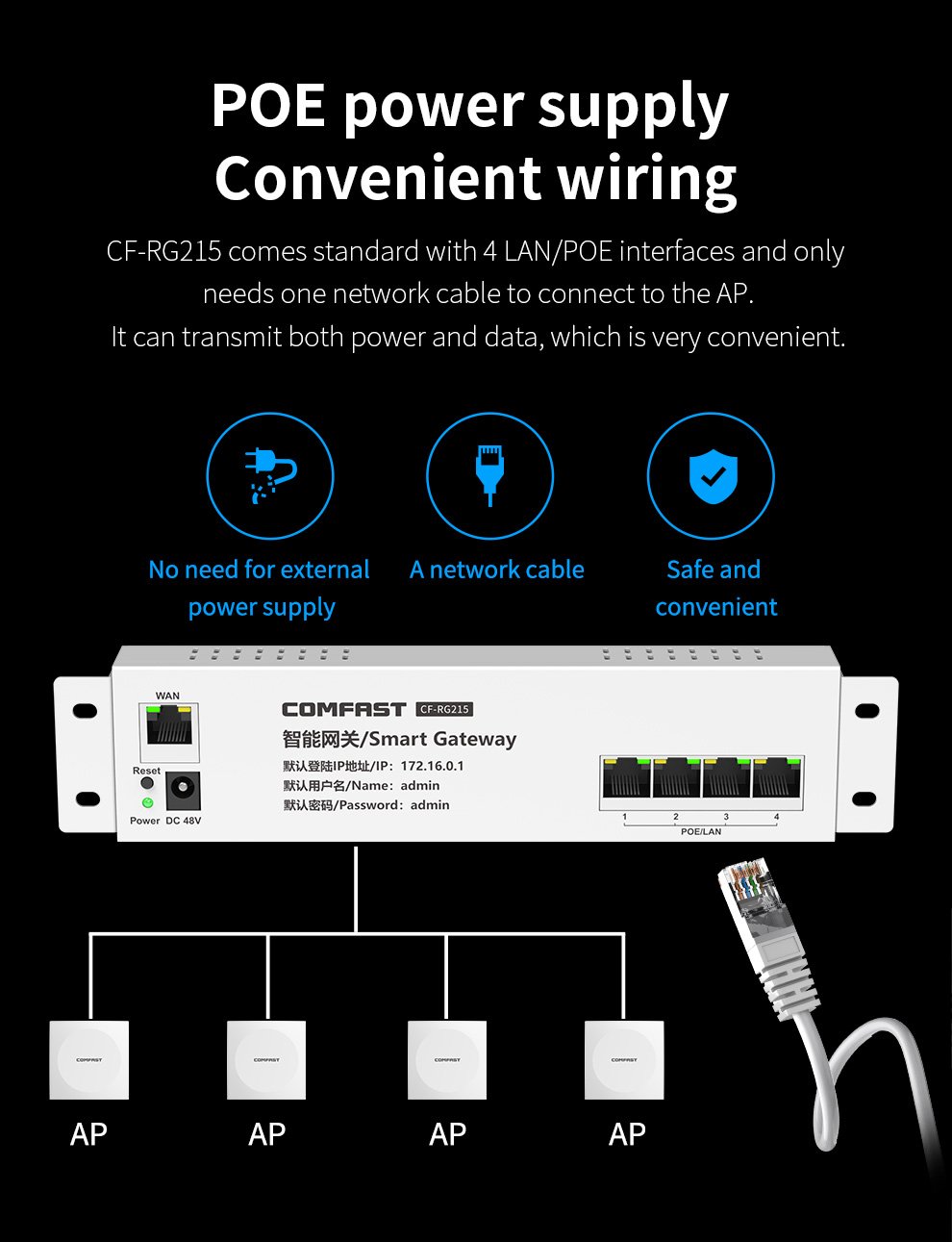

PoE Support: 4 LAN ports with PoE, enabling both data transmission and power through a single cable
-

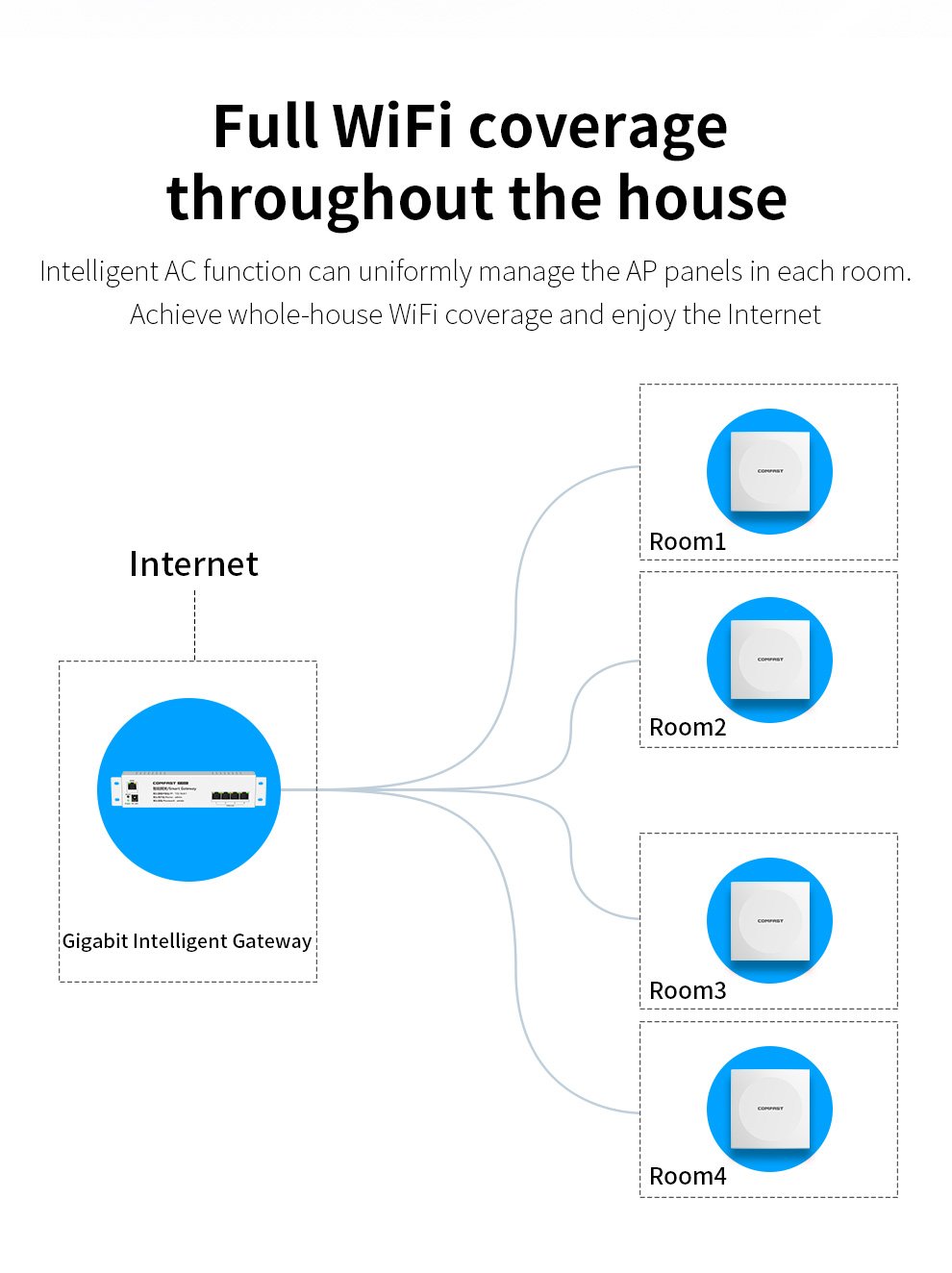

AC Management: Manages up to 128 APs
-
Power Supply: 60W, with individual port power up to 30W
-
High Capacity: Supports up to 500 simultaneous devices
-

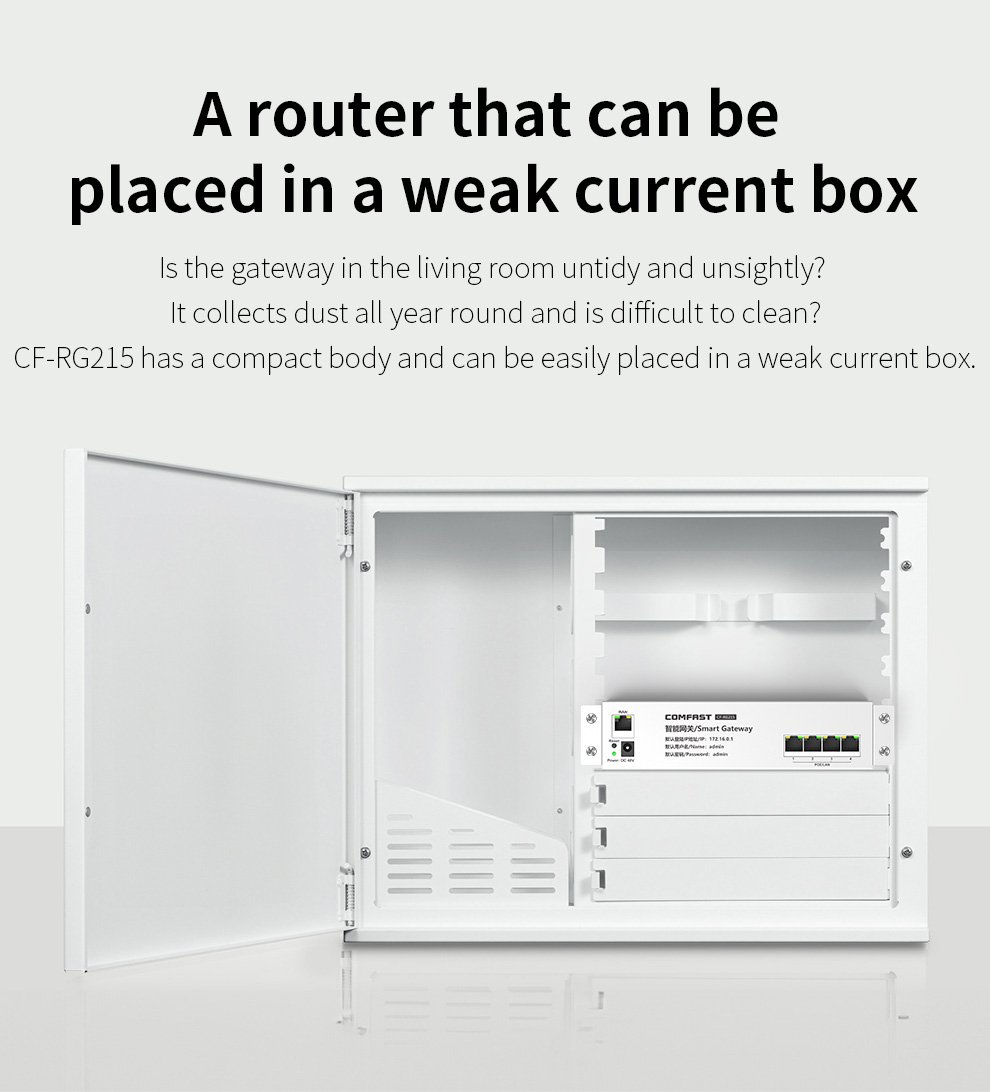

Design: Professional smart gateway, fits in low-voltage boxes.
-
Reliable PoE: Standard PoE for secure and safe operation.
Contact Us
Product Repair
Repair Address
3rd Floor, Building 2, Hongxin Industrial Park, No. 1303,
Guanguang Road, Xinlan Community, Guanlan Street,
Longhua District, Shenzhen, Guangdong
Telephone
0755 83790059
Service Time
Monday to Saturday
8:00-12:00, 13:30-17:00
18:00-20:30(weekdays only)

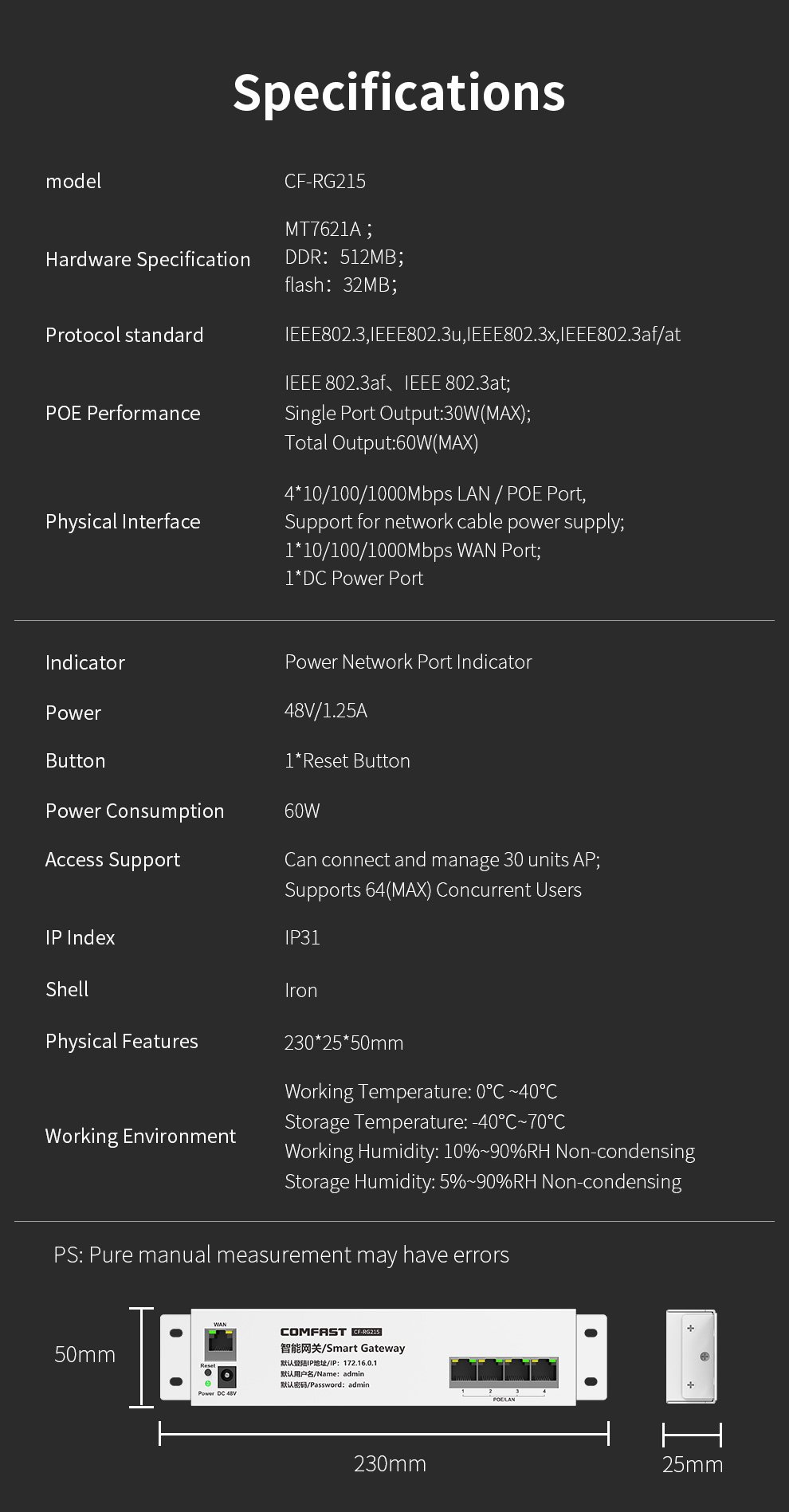

| Item | Specification |
|---|---|
| Chipset | MT7621A 880MHz CPU |
| Memory | DDR3: 512MB |
| Flash | 32MB |
| Watchdog Chip | Yes |
| Protocol Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af/at |
| PoE Support | IEEE 802.3af/at compliant, max 30W per port, 60W total |

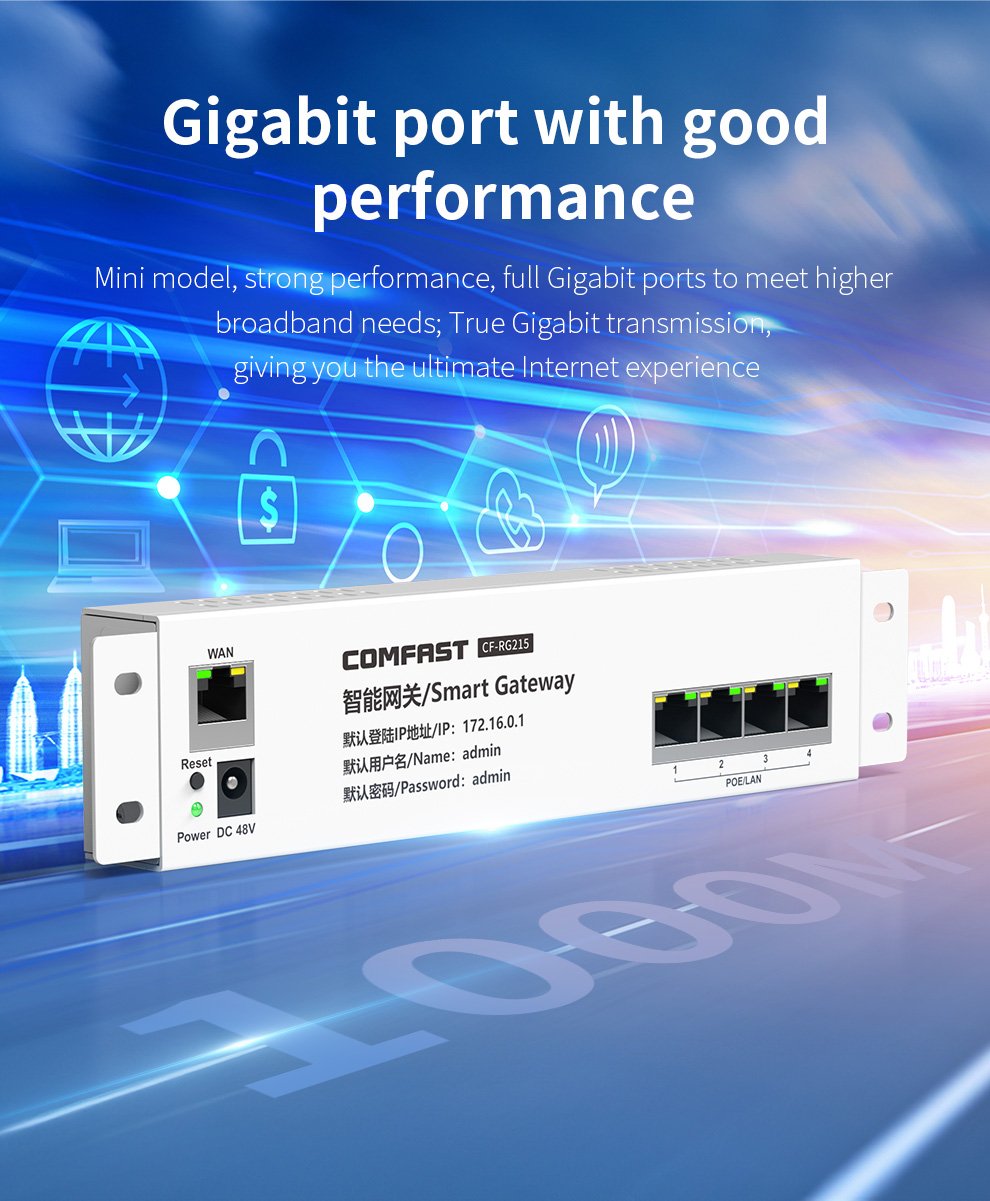

| Physical Ports | 1 x 10/100/1000M WAN, 4 x 10/100/1000M PoE/LAN |
| Power Supply | 48V/1.25A DC input |
| Buttons | 1 x Reset |
| Indicators | Power, Ethernet LED |
| Max Power Consumption | 60W |
| Device Support | Manage up to 128 APs, 500 devices simultaneously |
| Protection Level | IP31 |
| Installation | Desktop mount installation |

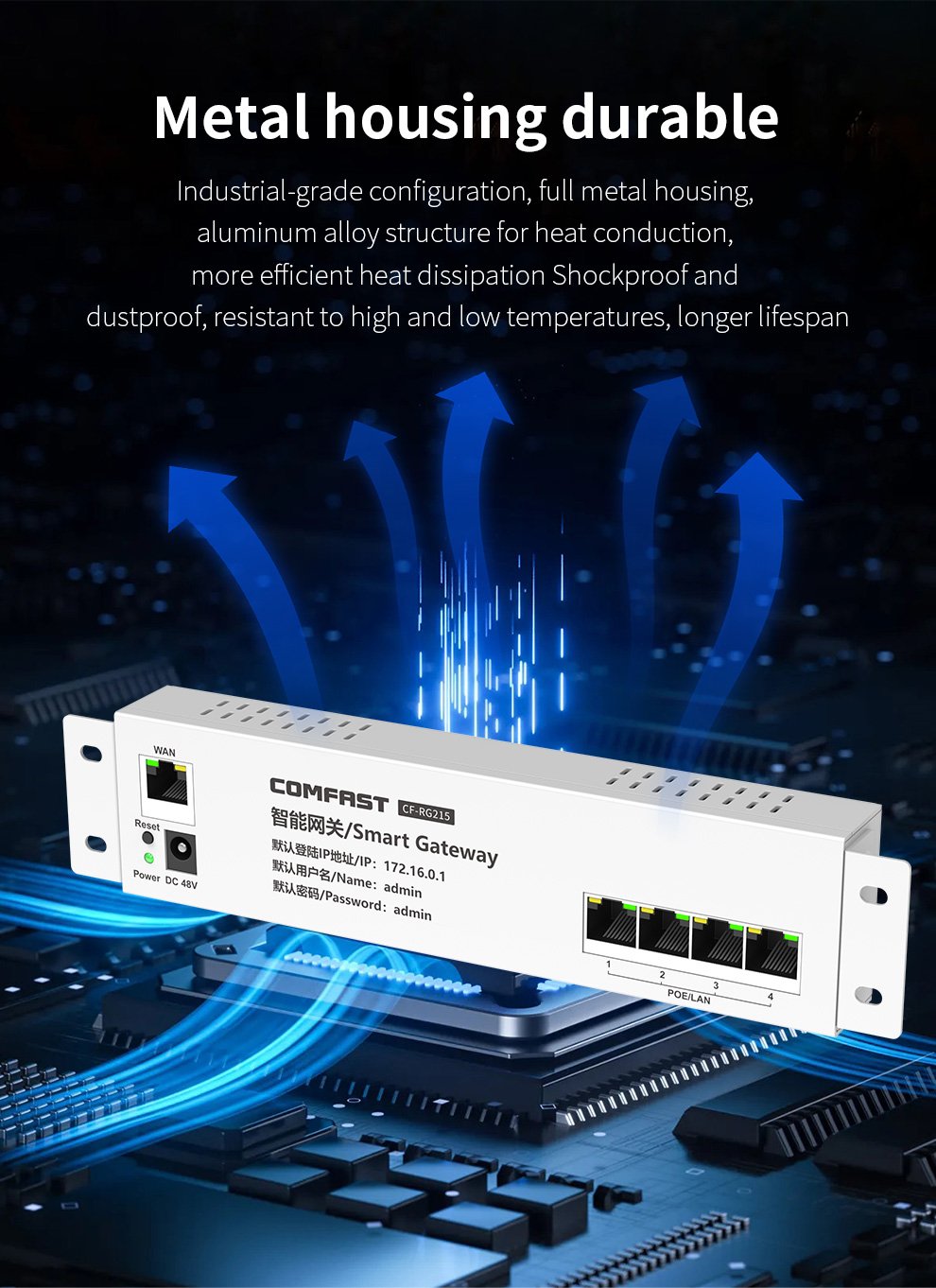

| Enclosure | Metal casing |
| Dimensions | 23 x 2.5 x 5 cm (L x W x H) |
| Operating Temperature | 0°C ~ 40°C |
| Storage Temperature | -40°C ~ 70°C |
| Operating Humidity | 10% ~ 90% RH (non-condensing) |
| Storage Humidity | 5% ~ 90% RH (non-condensing) |
