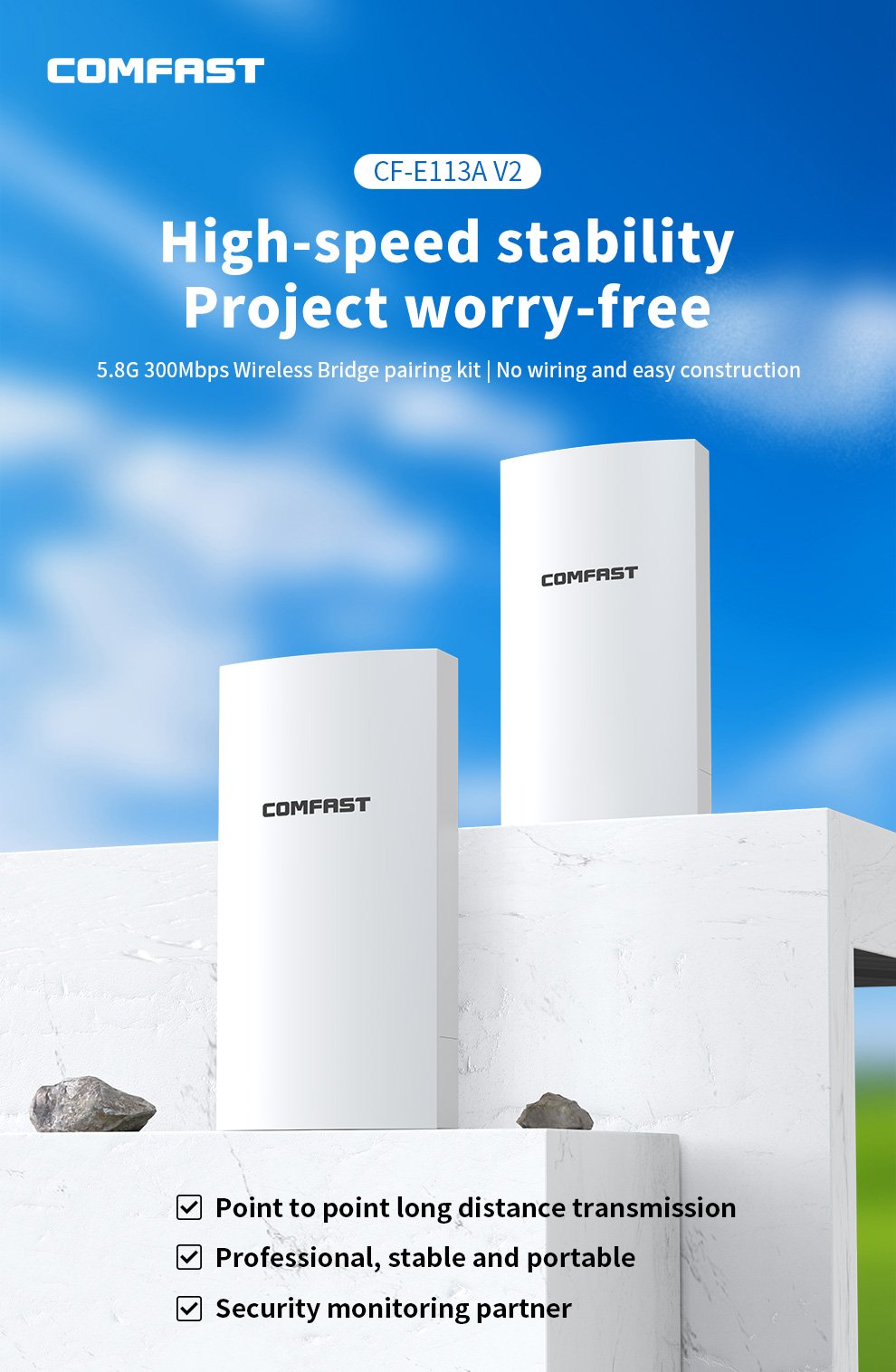

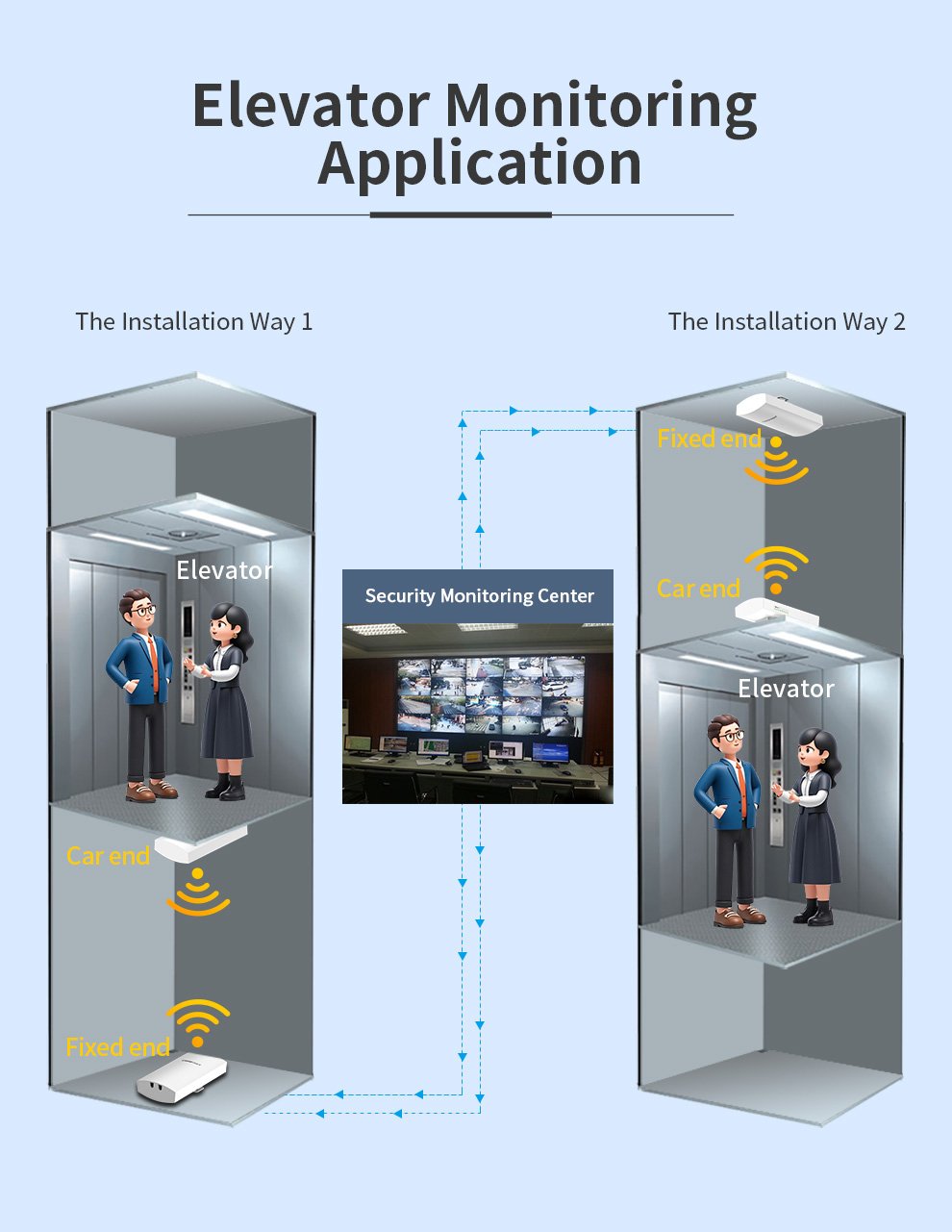

The CF-E113A V2 is a 300Mbps outdoor bridge on the 5.8GHz band, perfect for stable wireless transmission in security surveillance projects.
Durable ABS: Simple, weatherproof design.
Easy Setup: Quick outdoor installation.
Weatherproof: Works in all conditions.

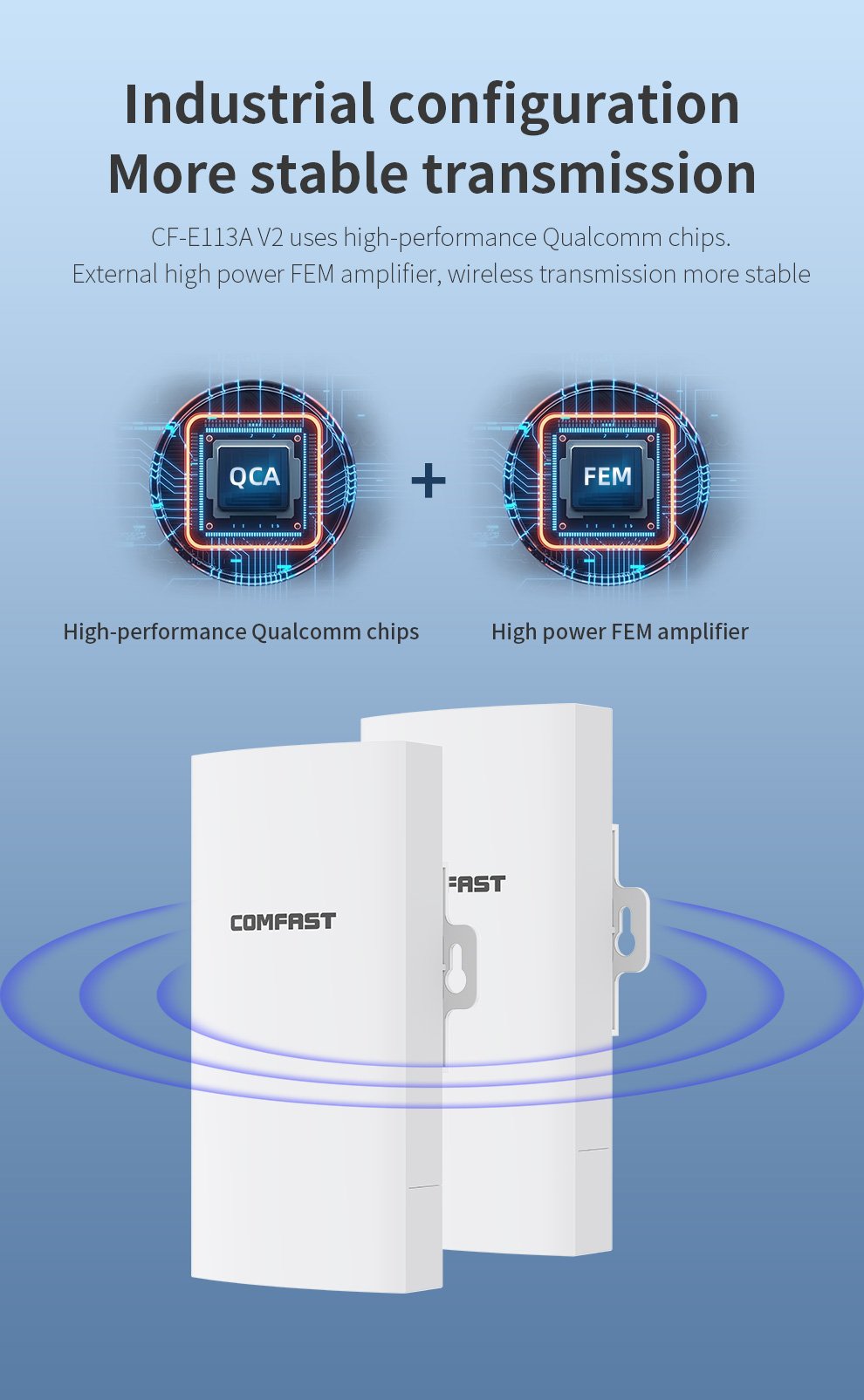

AR9344 Chipset: Reliable performance.
300Mbps Speed: Stable wireless connection.

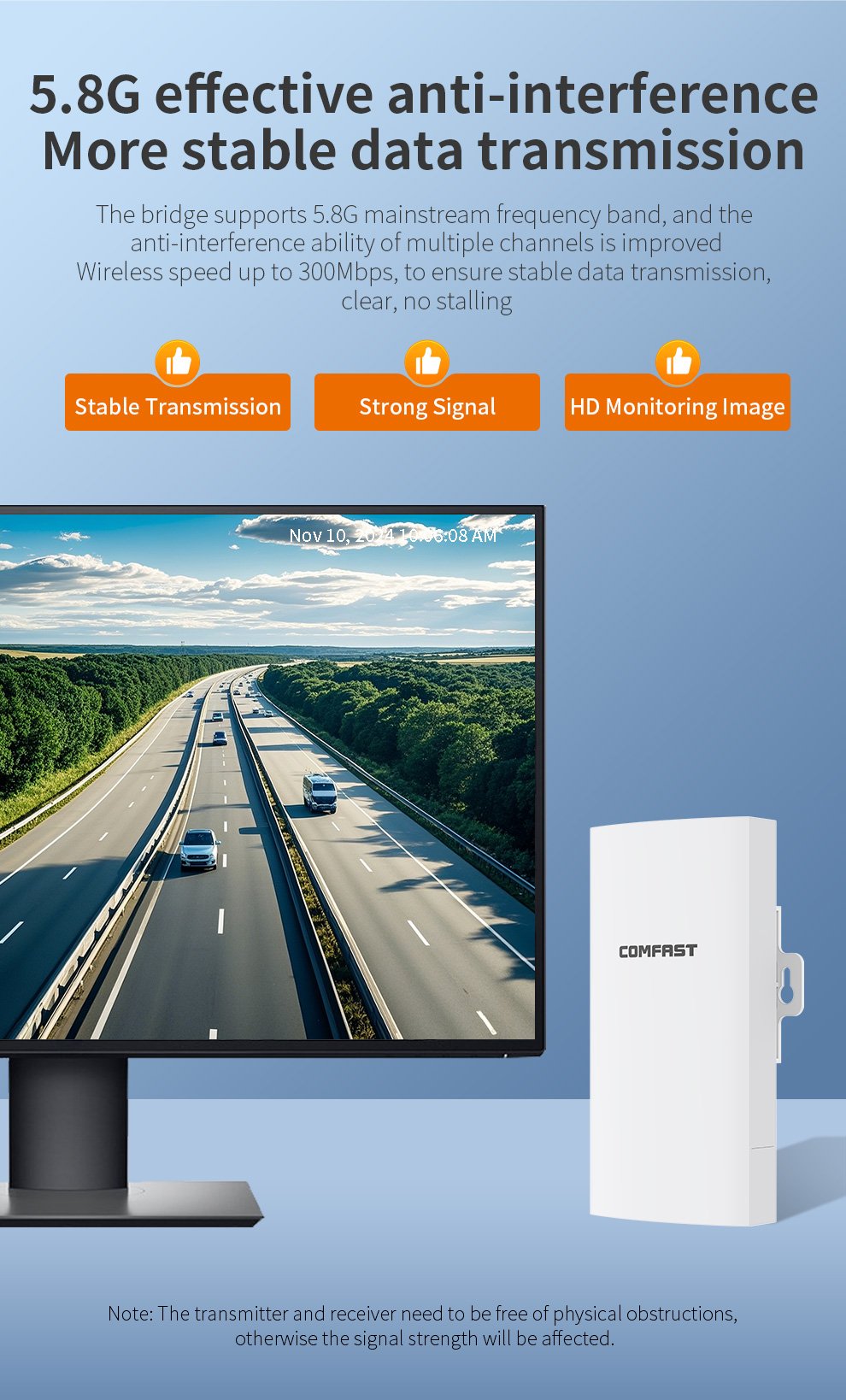

5.8GHz Band: Reduced interference.
Long-Distance: Stable transmission.

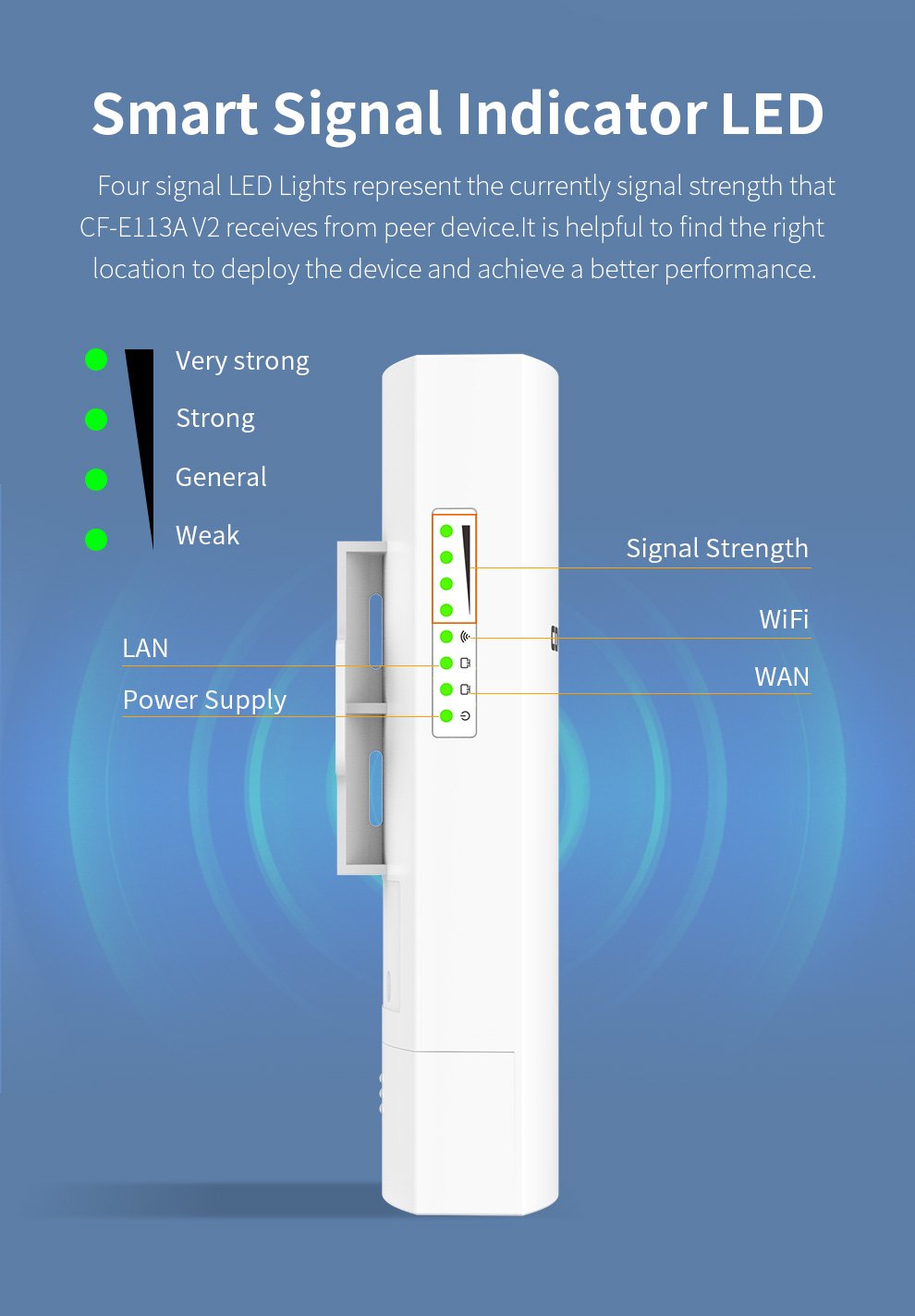

Signal Indicator: Easy status check and angle adjustment.
PoE Support: Flexible power.
3rd Floor, Building 2, Hongxin Industrial Park, No. 1303,
Guanguang Road, Xinlan Community, Guanlan Street,
Longhua District, Shenzhen, Guangdong
0755 83790059
Monday to Saturday
8:00-12:00, 13:30-17:00
18:00-20:30(weekdays only)

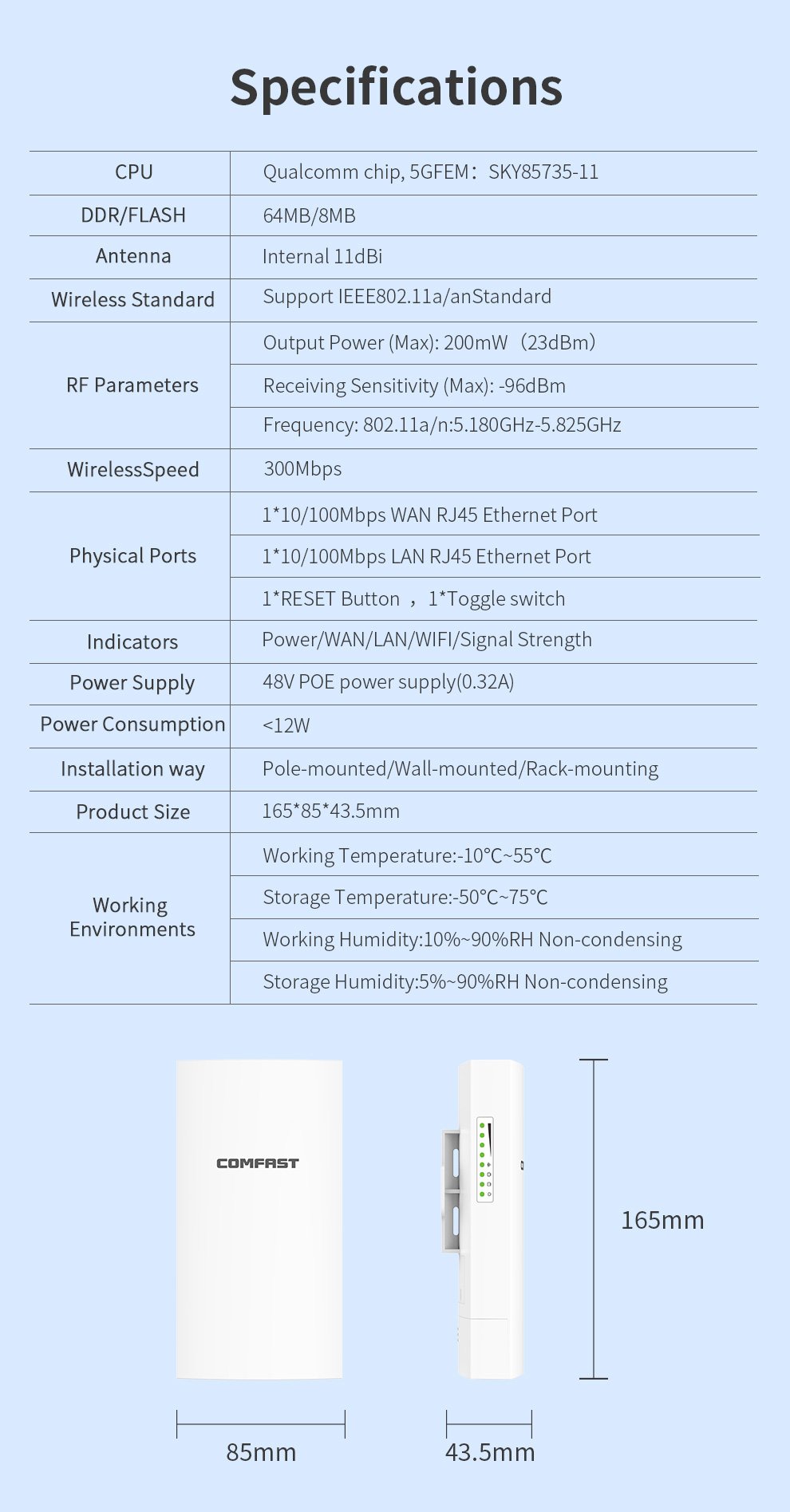

| Item | Specification |
|---|---|
| Chipset | AR9344 |
| FEM | 5GFEM: SKY85735-11 |
| Memory | 64MB |
| Flash | 8MB |
| Antenna | 11dBi |
| Wireless Standard | IEEE 802.11a/an |
| Max Transmit Power | 200mW (23dBm) |
| Max Receive Sensitivity | -96dBm |
| Frequency Range | 802.11a/an: 5.180GHz – 5.825GHz |
| Modulation Techniques | DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps MIMO-OFDM: MCS 0-15 |
| Data Rate | 11a: 6, 9, 12, 18, 24, 36, 48, 54Mbps 11n: MCS0-MCS15 (300Mbps with 20/40MHz bandwidth) |

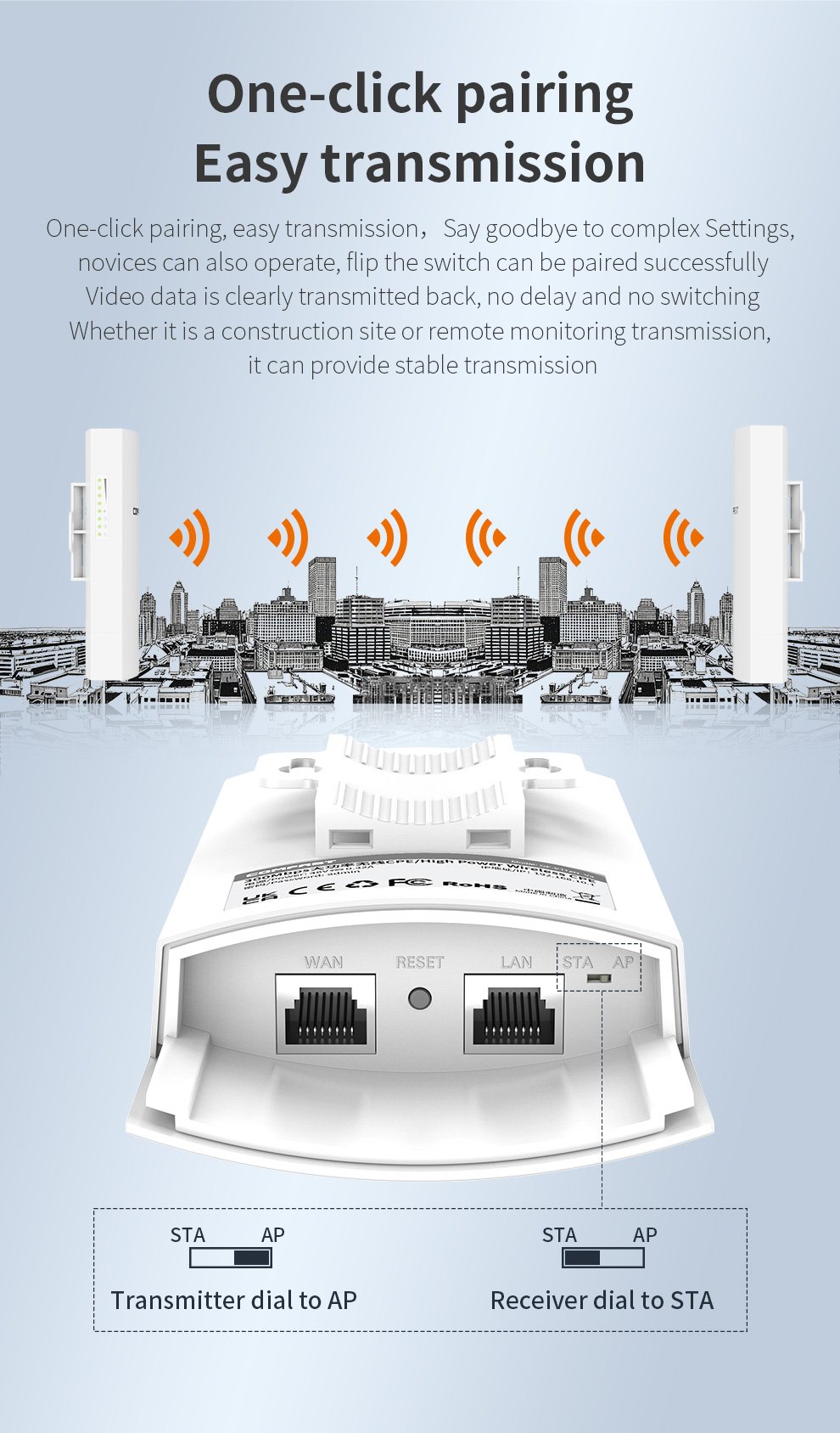

| Physical Ports | 2 x 10/100Mbps WAN/LAN RJ45 ports |
| Buttons | 1 x RESET |
| Indicators | 8 LEDs: Power, 2x WAN/LAN, Wi-Fi, Signal Strength (1-4 bars) |

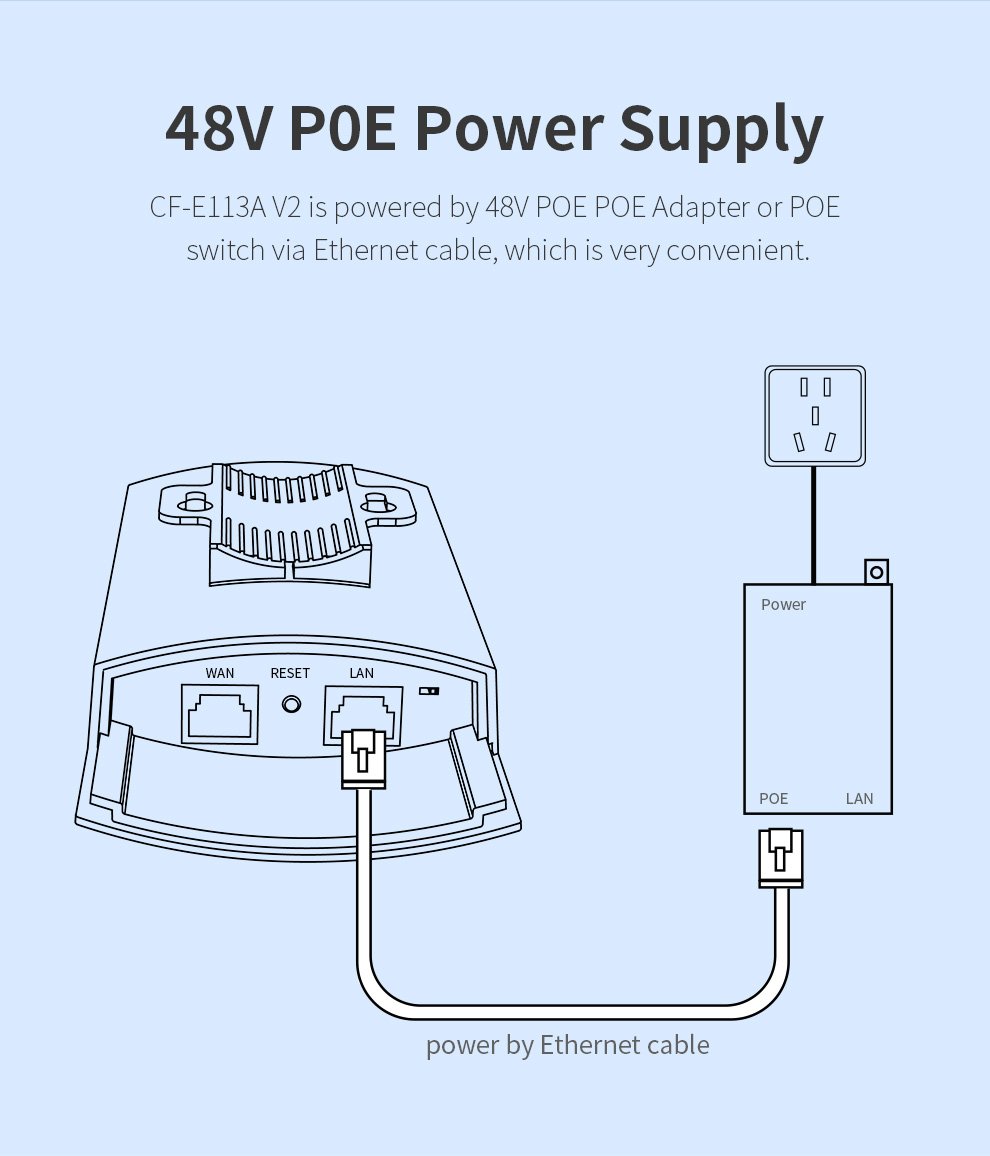

| Power Supply | 48V POE (0.32A) |
| Max Power Consumption | 12W |
| Protection | 2KV Lightning Protection, IP65 |
| MTBF | >250,000 hours |

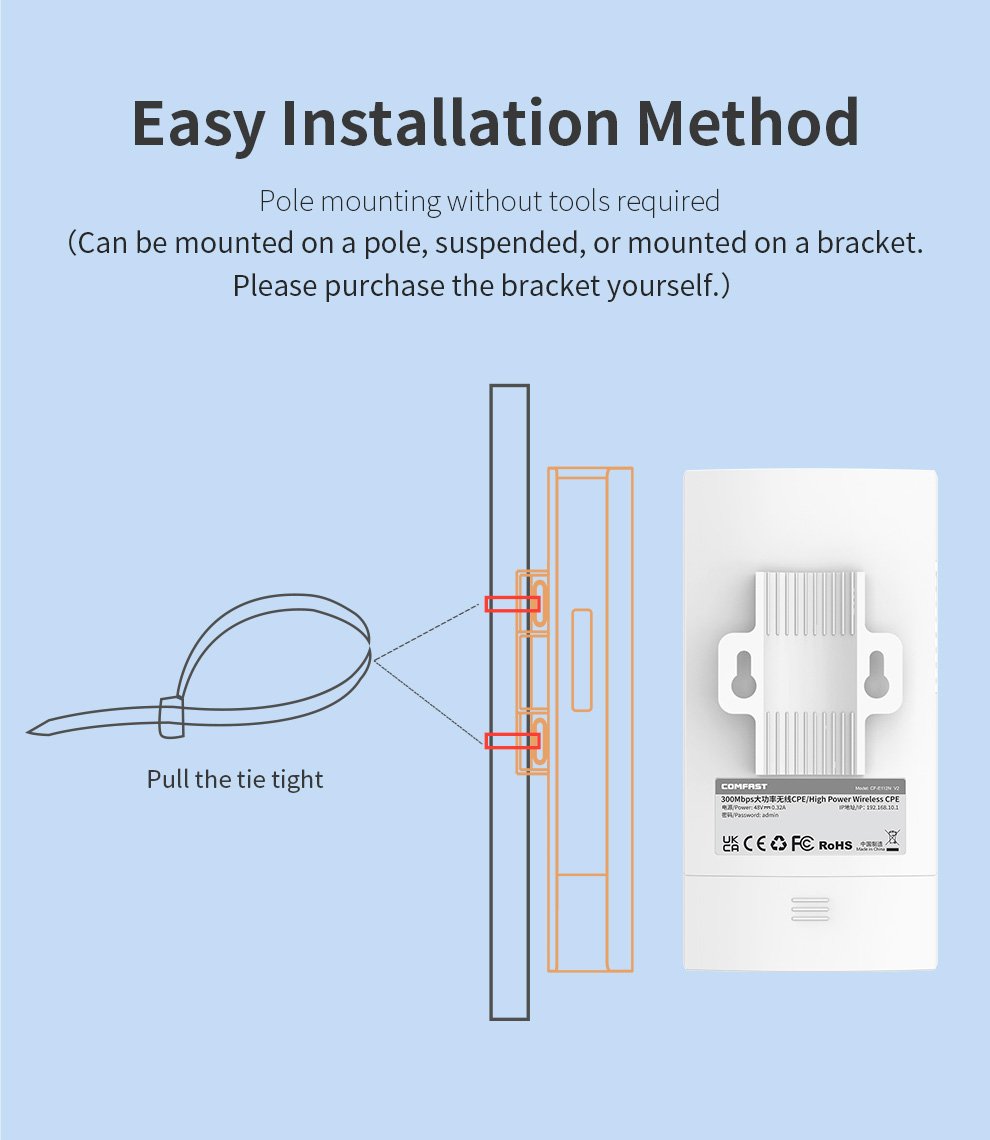

| Installation | Pole mount, Wall mount |
| Enclosure | ABS plastic casing |
| Dimensions | 165 x 85 x 43.5mm (L x W x H) |
| Operating Temperature | -10°C ~ 55°C |
| Storage Temperature | -50°C ~ 75°C |
| Operating Humidity | 10% ~ 90% RH (non-condensing) |
| Storage Humidity | 5% ~ 90% RH (non-condensing) |
