High Power, High Standby Capacity2200Mbps High Density Ceiling AP

The CF-E385AC supports up to 220+ devices with dual-band 11AC, doubling the client capacity of standard APs in high-density environments.

2200Mbps Speed: Ultra-fast internet.
Quad-core ARM Cortex-A7 for strong performance.

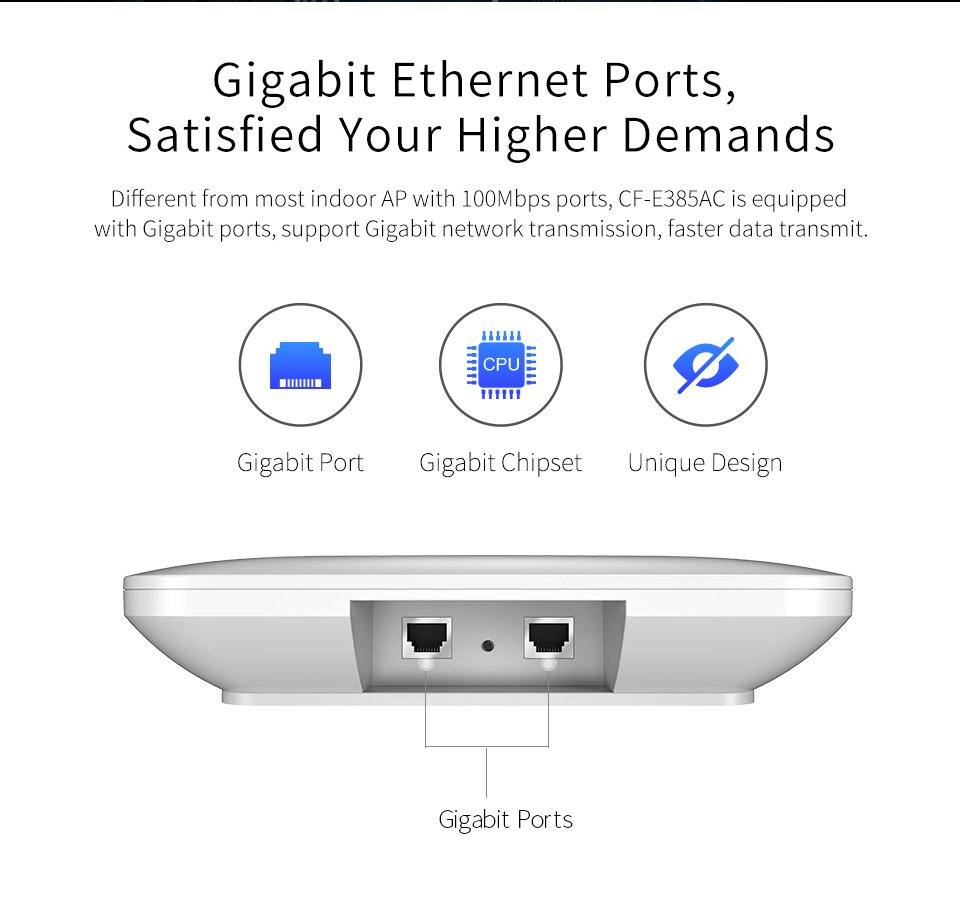

Gigabit Ports for fast wired connections.

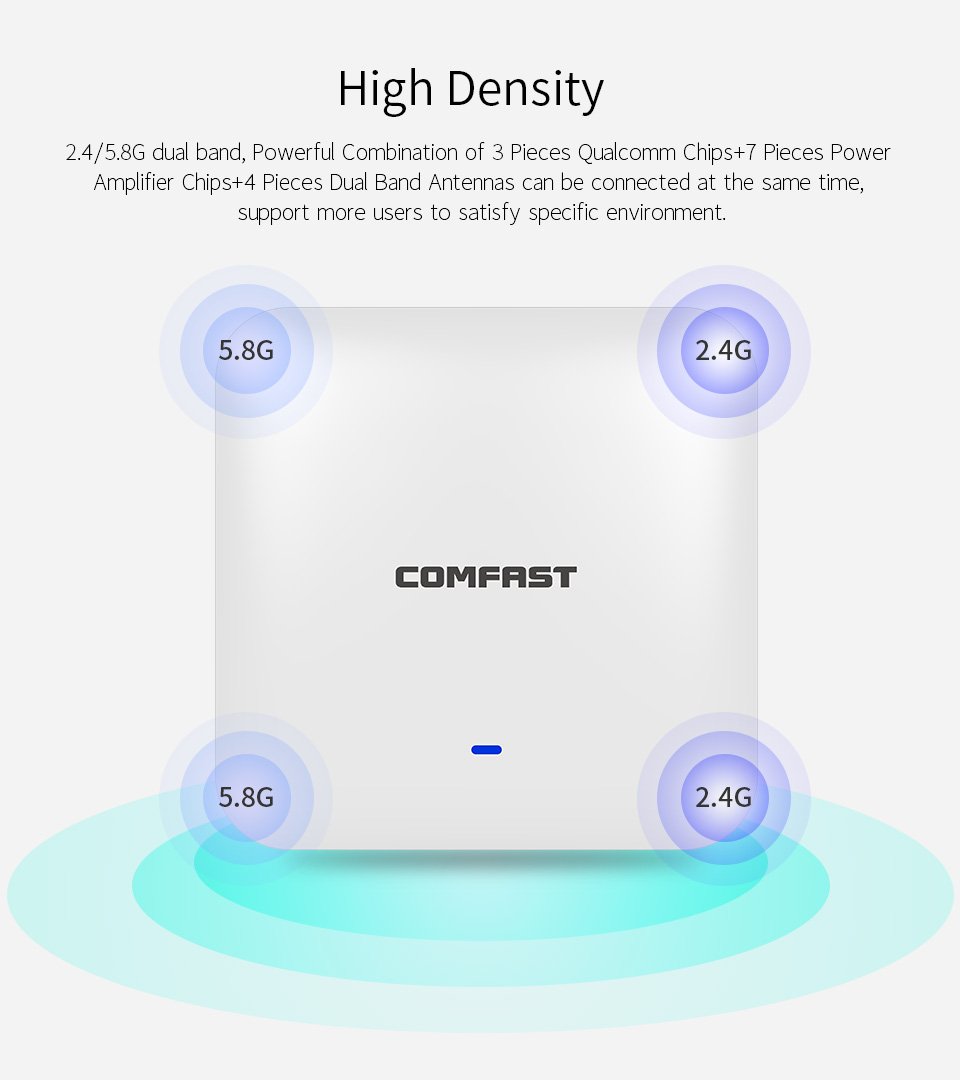

Dual-Band: 2.4GHz & 5.8GHz simultaneously.

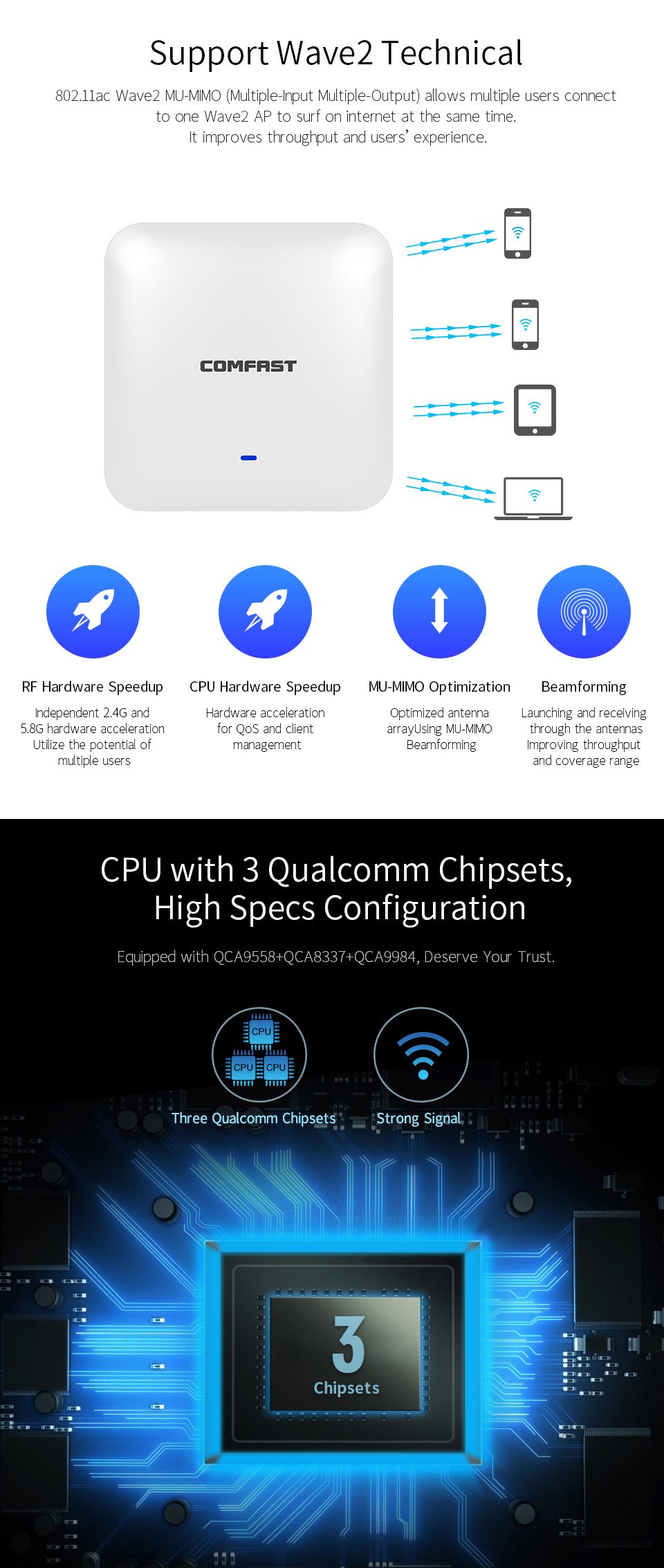

Powerful Chipset: QCA9558 + QCA8337 + QCA9984.
LED Indicators for easy status monitoring.

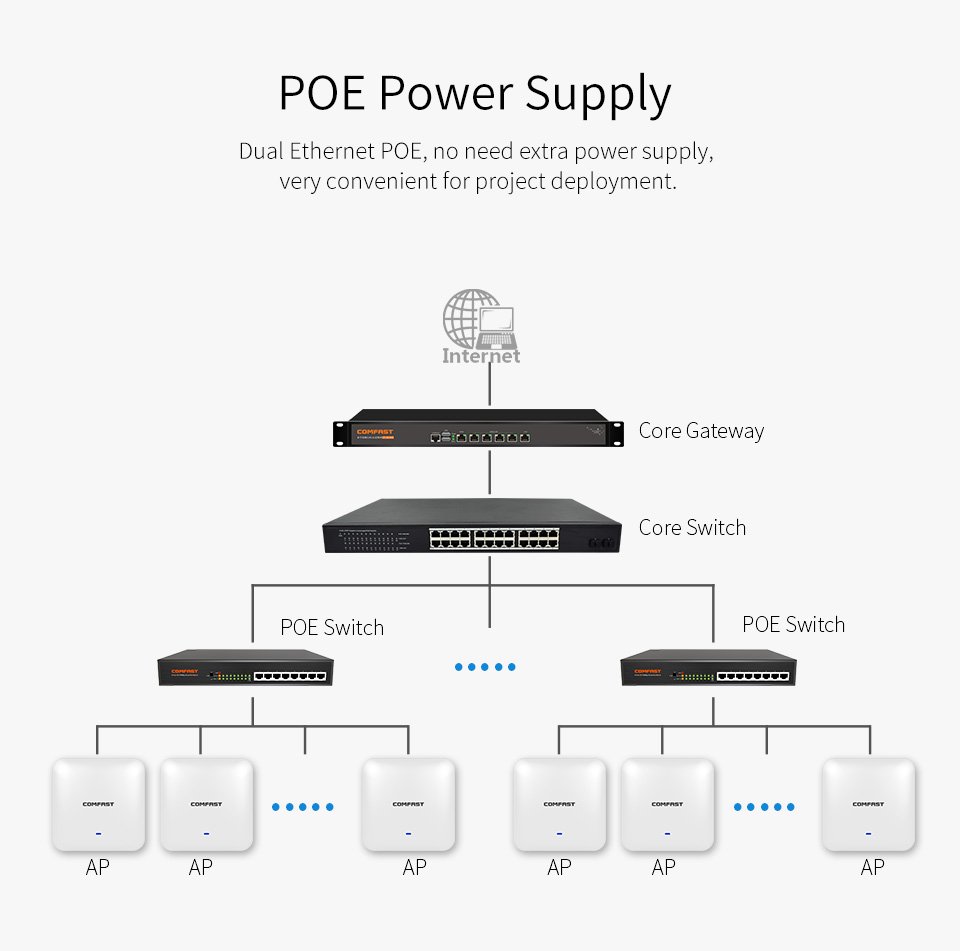

PoE Support: 802.3af/at compatible.
Supports 220+ Concurrent Devices.

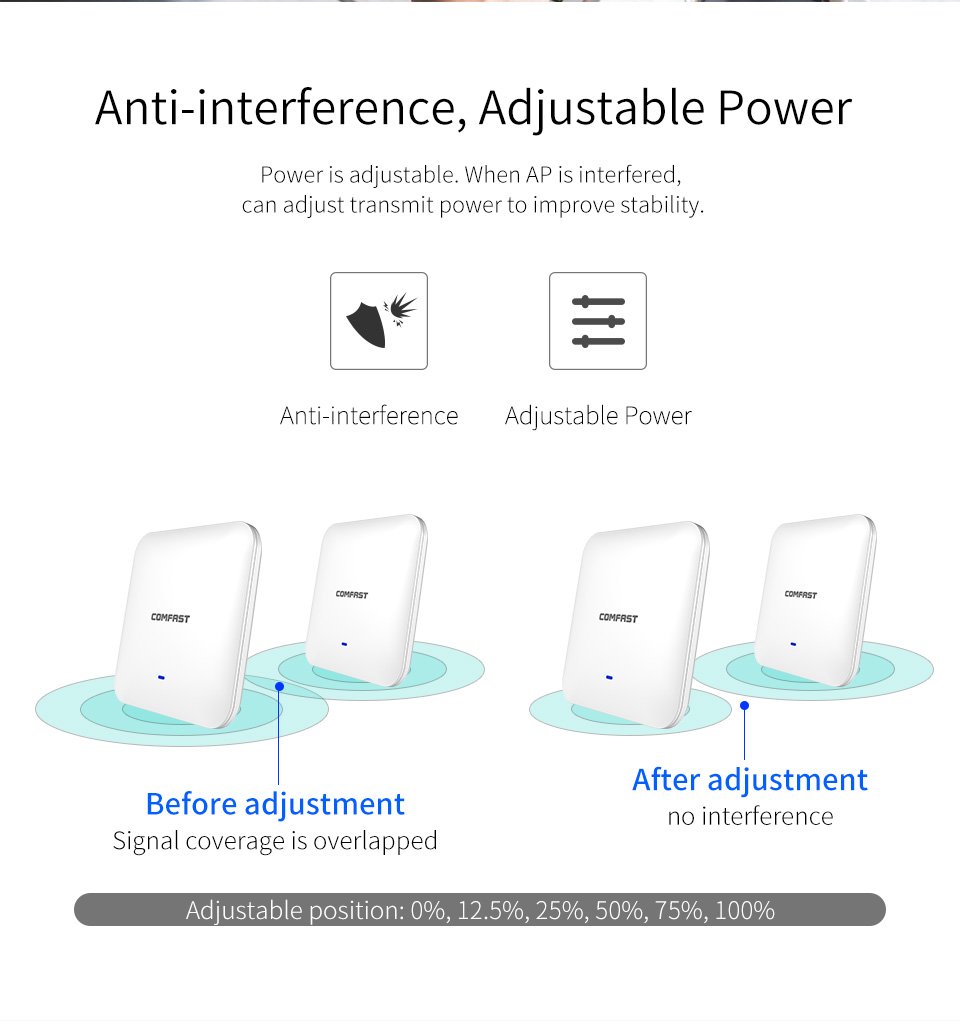

500mW Power: Wide Wi-Fi range.

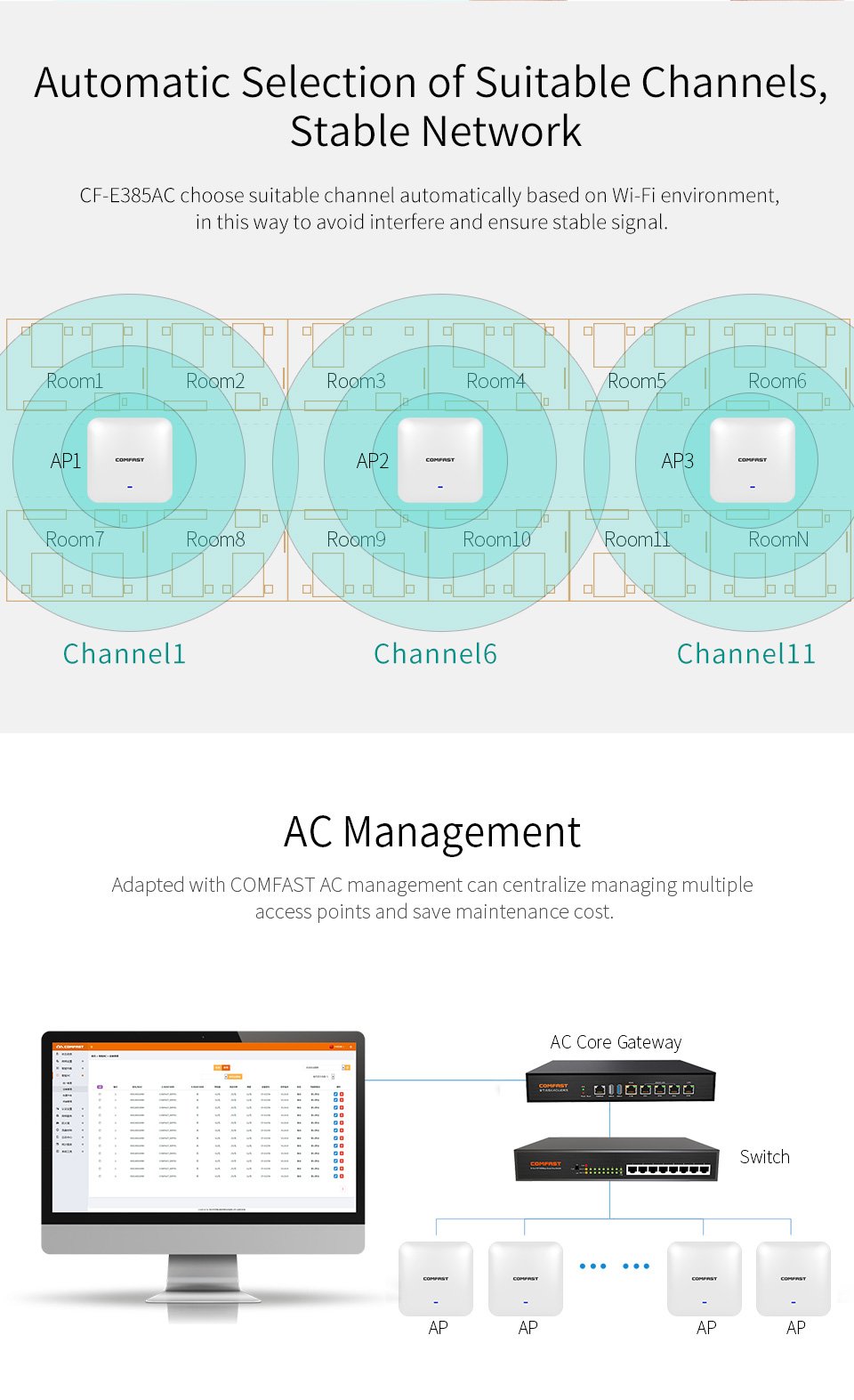

Wireless Roaming: Seamless connection.
Flexible Installation: Wall or ceiling mount.

Category: Wireless AP Tag: CF-E385AC

Contact Us

Online Service

Service hours: Mon-Fri 9:00-12:00, 13:30-18:30 (excluding holidays)

Product Repair

Repair Address

3rd Floor, Building 2, Hongxin Industrial Park, No. 1303,
Guanguang Road, Xinlan Community, Guanlan Street,
Longhua District, Shenzhen, Guangdong

Telephone

0755 83790059

Service Time

Monday to Saturday
8:00-12:00, 13:30-17:00
18:00-20:30(weekdays only)

Description
Attachment

Description

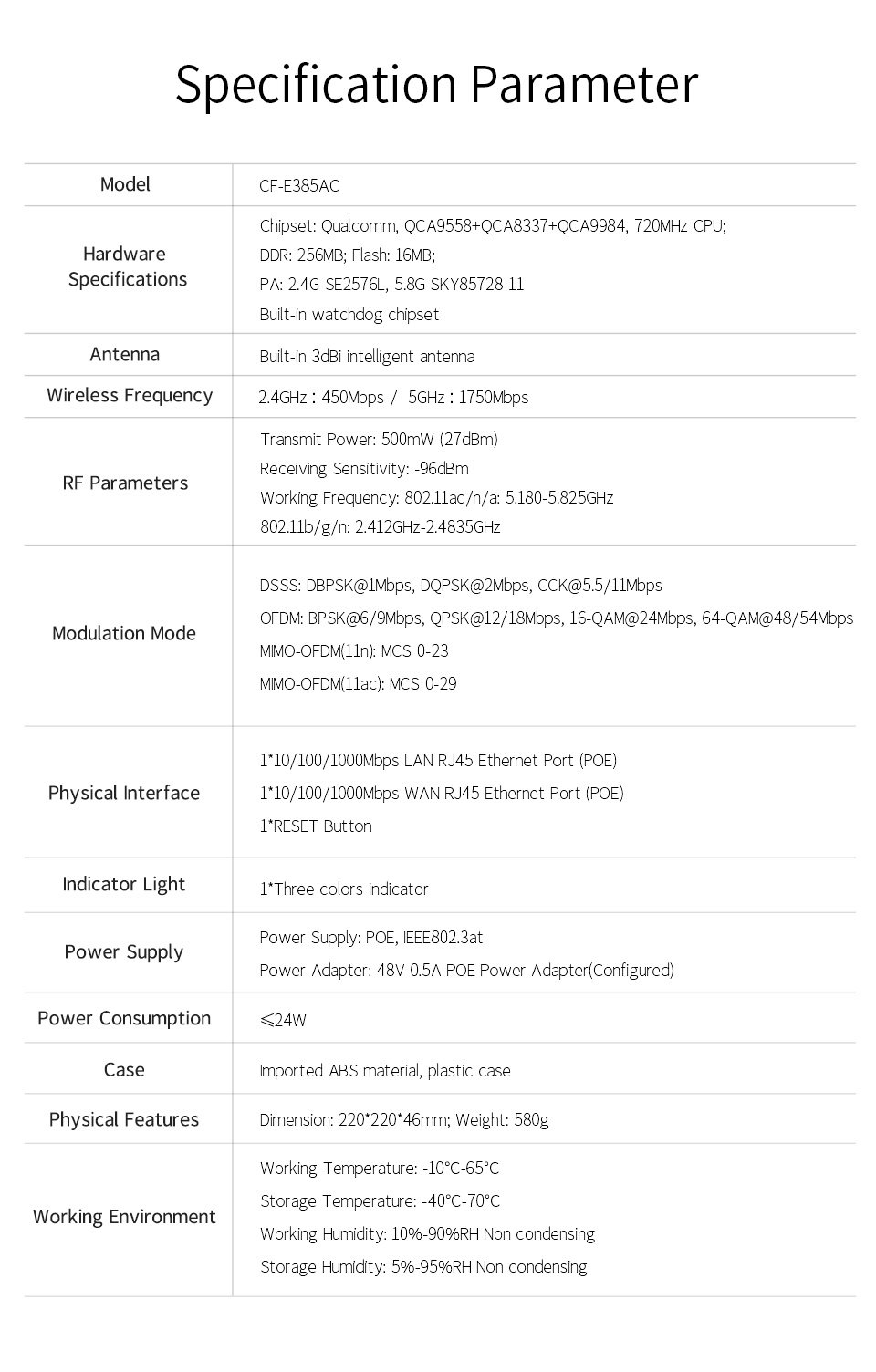

Item	Specification
Chipset	Qualcomm QCA9558 + QCA8337 + QCA9984, 720MHz, telecom-grade processor
Memory	DDR2 256MB
Flash	16MB
Amplifier Chips	2.4GHz: SE2576L3, 5.8GHz: SKY85728-114
Watchdog Chip	Yes
Antenna	Built-in smart antenna system, max gain 3dBi
Wireless Rate	2.4GHz: 450Mbps (150Mbps3)<br>5.8GHz: 1750Mbps (433Mbps4)
RF Parameters	Max Transmit Power: 500mW (27dBm) Min Receive Sensitivity: -96dBm
Frequency Range	802.11ac/n/a: 5.180~5.825GHz 802.11b/g/n: 2.412GHz-2.4835GHz
Modulation Techniques	DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps MIMO-OFDM (11n): MCS 0-23 MIMO-OFDM (11ac): MCS 0-29
Modulation Types	11b: DSS: CCK@5.5/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps 11a/g: OFDM: 64QAM@48/54Mbps, 16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps 11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM 11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM
Physical Ports	1 x 10/100/1000Mbps LAN RJ45 port (PoE support) 1 x 10/100/1000Mbps WAN RJ45 port (PoE support) 1 x RESET button
Indicators	1 x Tri-color LED indicator
Power Supply	PoE (IEEE802.3at standard, up to 100m) 48V 0.5A PoE adapter (included)
Max Power Consumption	<24W
Protection Level	IP31
MTBF	>250,000 hours
Installation	Ceiling or wall mount
Enclosure	ABS imported material, plastic casing
Dimensions	220 x 220 x 46mm (L x W x H)
Weight	(Specify weight)
Operating Environment	Operating Temp: 0°C ~ 40°C Storage Temp: -40°C ~ 70°C Operating Humidity: 10% ~ 90% RH (non-condensing) Storage Humidity: 5% ~ 95% RH (non-condensing)
