AX3000 WiFi6 Dual Band Repeater
- Categories: Wireless Repeater, PWR Repeater
- Model: CF-XR186
Contact Us
Product Repair
Repair Address
3rd Floor, Building 2, Hongxin Industrial Park, No. 1303,
Guanguang Road, Xinlan Community, Guanlan Street,
Longhua District, Shenzhen, Guangdong
Telephone
0755 83790059
Service Time
Monday to Saturday
8:00-12:00, 13:30-17:00
18:00-20:30(weekdays only)
*The product images and demonstration scenarios on this page are for illustrative purposes only and may have slight differences from the actual product. Please refer to the physical product for accuracy.
*The data on this page are theoretical values obtained from COMFAST’s internal laboratory under specific testing conditions. Actual usage may vary due to individual product differences, software versions, usage conditions, and environmental factors. Please refer to real-world usage for accurate representation.
*To provide as accurate product information, specifications, and features as possible, COMFAST may periodically adjust and revise the text descriptions, image effects, and other content on this page to ensure alignment with actual product performance, specifications, packaging, and accessories. Should such adjustments or revisions become necessary, no prior notice will be provided.
| Chipset | MT7981A+MT7976DA, DDR:256M, Flash:128M |

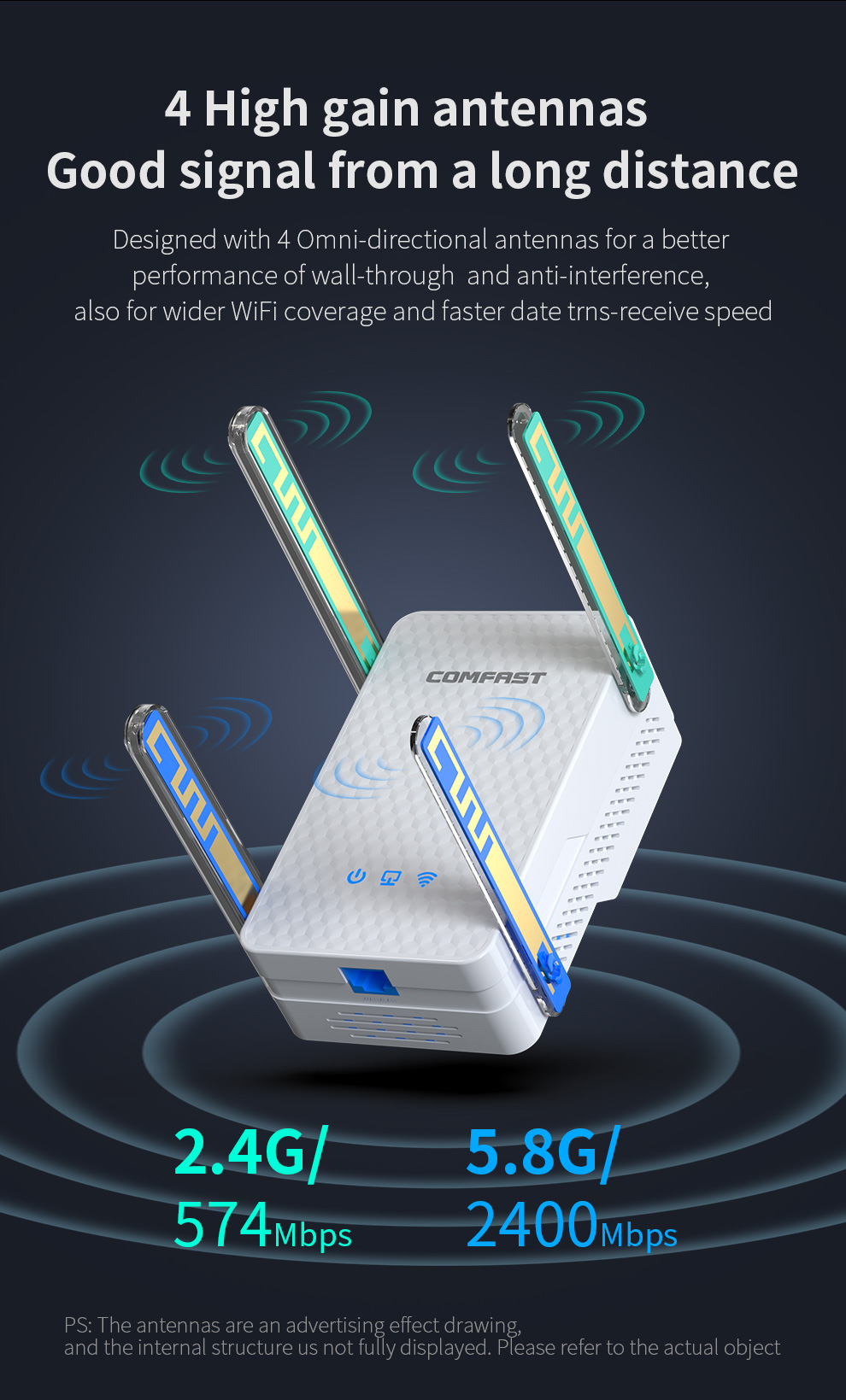

| Antenna | 4*5dbi Antennas |
| Wireless Standard | IEEE802.11a/b/g/n/ac/ax |

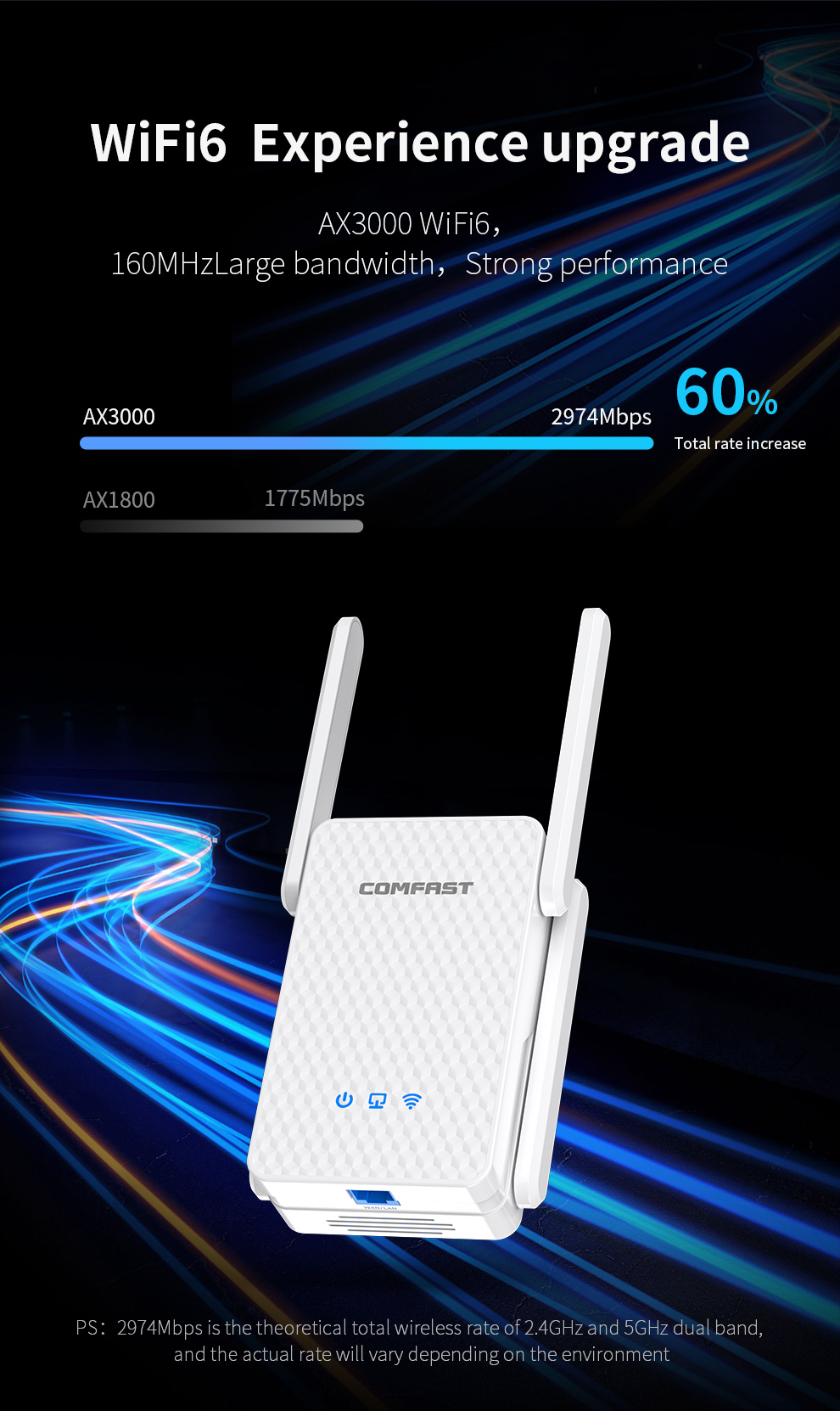

| Transmission Rate | 2.4GHz: 574Mbps ; 5.8GHz: 2400Mbps |
| RF Parameters | Output Power (Max): 400mW (≈26dBm) |
| Receiver Sensitivity (Min) -96dBm | |
| Frequency: 2.412GHz-2.472GHz; 5.180GHz_5.825GHz | |

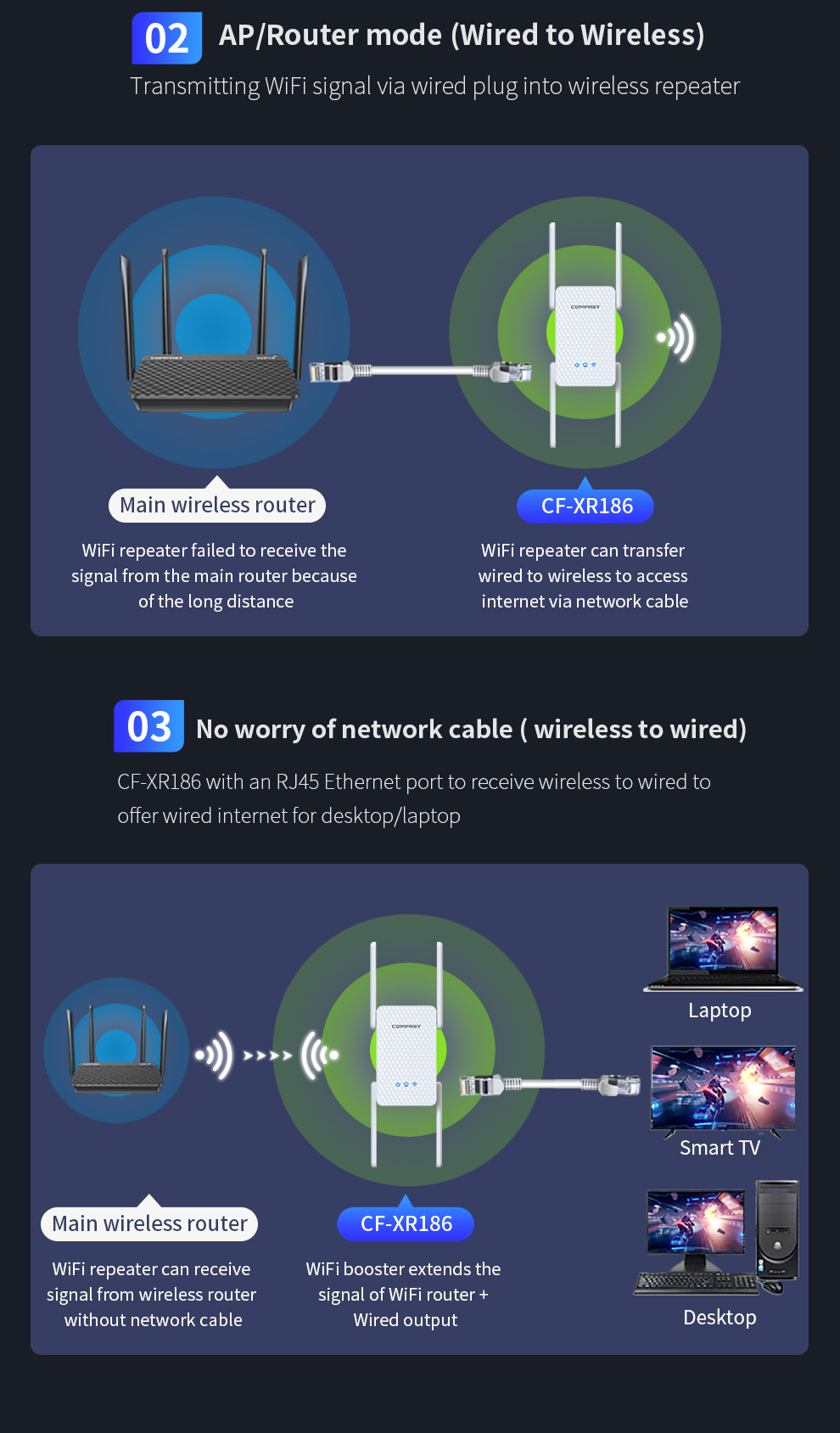

| Working Mode | AP / Repeater / Route Mode |
| Physical Ports |
1*10/100/1000Mbps RJ45 WAN/LAN Ethernet Port
1*RESET/WPS
|
| Display | Indicator Light |
| Power | 100-240V,50/60Hz |
| Power consumption | <18W |
| MTBF | >250000H |
| IP Index | IP31 |
| Case | Plastic Case (ABS Material) |
| Physical Features | Size: 94(L)*48(W)*130.3(H)mm |
| Working Environment | Working Temperature: 0 C°-40 C° |
| Storage Temperature: -40℃-70℃ | |
| Working Humidity: 10%-90%RH Non-condensing | |
| Storage Humidity: 5%-90%RH Non-condensing |
Be Familiar With Quickly
Product Video

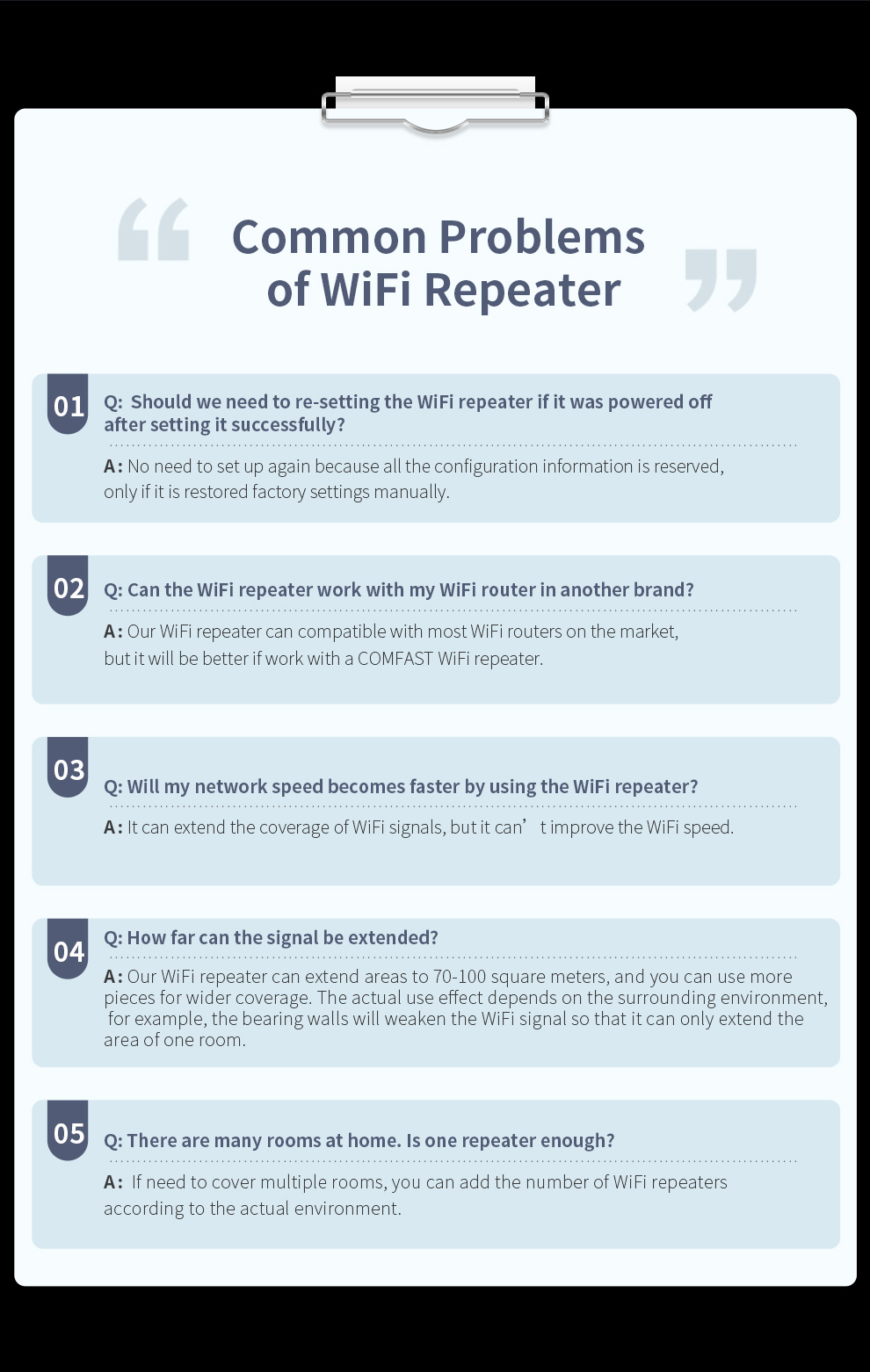

Frequently Asked Question
